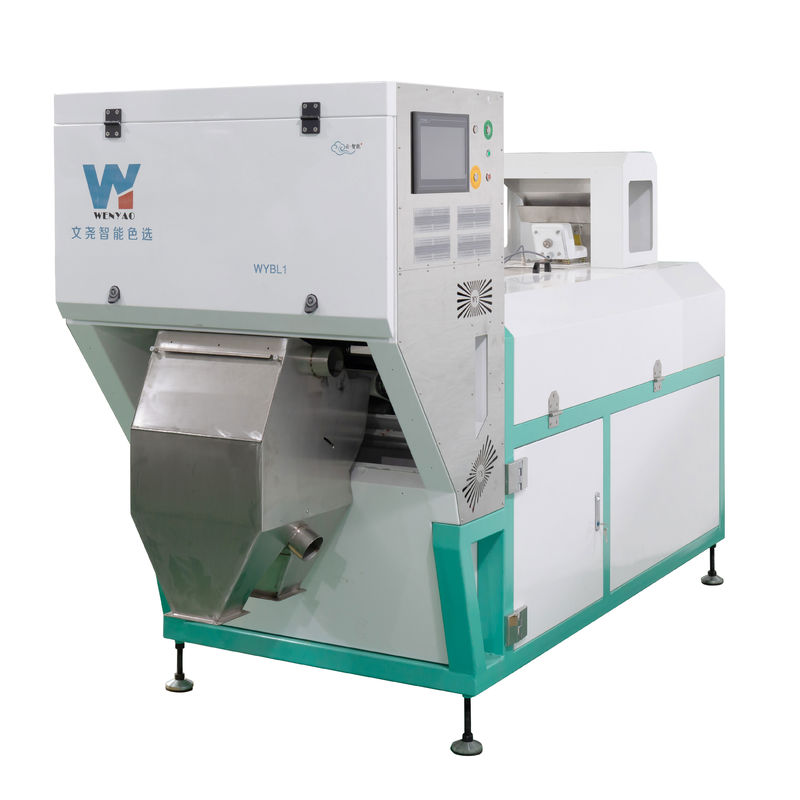

Intelligent CCD Camera Mini Mineral Quartz Stone Color Sorting Machine
Nuts color sorter working principle:
When color sorter is running , the materials in the hopper is uniformly distributed into each chute because of the action of vibrator.while the materials dropping ,CCD sensor is starting.If the cameras catach the unqualified materials or impurities,PLC will order the ejector to blow the bad goods into the hopper.
Technical Parameters:
| MODEL | WYB1 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.9% |
| Power | 1.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min |
| Weight | 450kg |
| Diamension(L*W*H) | 2450*1010*1539mm |
Throughtput:Different impurity with different throughput.
Features:
1.Most advanced RGB cameras with 5400 pixels linear industry CCD sensor .
2.America FPGA processing chip.
3.Japan Toshiba CCD sensor.
4.Metal ejectors/valves with more than one billion lifetime
5.Lens:Japan Nikon Lens .
6.Filter: Japan CKD filter
7.Power source:Taiwan Meanwell
8.All LED light source,more longer lifetime and save power
9.Flexem Humanized touch screen
10. WIFI remote control system,help end user to debug and monitor machine situation in chinese factory during covid-19 period,Supply non-contactness after service
Examples of nuts color sorting:
1. who are we?
We are the latest color sorter R&D and sales base in hefei city China.We are professional color sorter manufacturer.
2. what can we do for you?
We will provide solutions to improve the quality of your materials. In order to increase the unit price and sales of your materials
3. What is color sorter?
Color Sorters used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.
4. What materials can be sorted
Rice, cereal, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. If you want to sort other materials, please contact our customer service.
