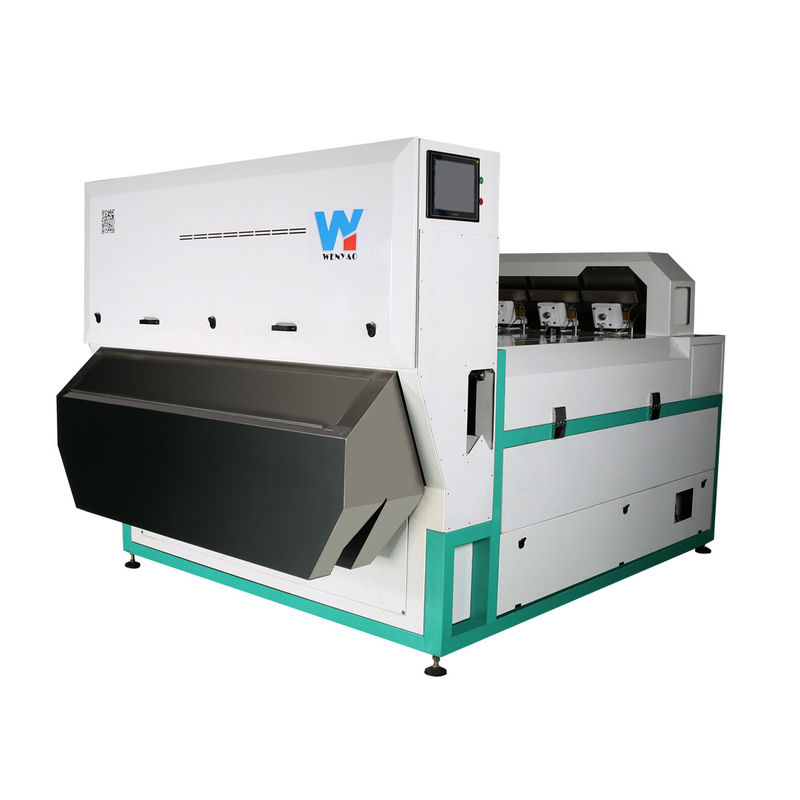

4 Chutes Belt Type Intelligent Plastic Granules Ccd Color Sorter Machine
Main Features:
1. Excellent sorting performance: Advanced image acquisition system + intelligent
image processing algorithm + high quality ejection system=excellent output and
rejection
2. RGB full color tri-chromatic CCD image acquisition system: Top industrial 5340 pixel
CCD high speed linear scan imaging sensor also first-class tailored camera lens for color
sorting with a precision identifying tiny defects till 0.01m2
3.Super ease operation system: Simple optical system design and accurate in time auto
calibration system plus simplified GUI design help reduce complicacies of machine
commissioning and running, easy operation and maintenance secured.
4. Customized image processing algorithm: Intelligence algorithm integrating image
color difference and defect size difference;
5. Long-life software upgrading for free.
6.OEM service welcomed.
| MODEL |
WYB4 |
| Chutes/Channels |
4/256 |
| Throughput(t/h) |
1-2t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
4.5kw |
| Power Voltage |
180-240V/50Hz/60Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
1-2.4M3/Min |
| Weight |
1400kg |
| Diamension(L*W*H) |
3173*1914*1420mm |
Color Sorting Machine Working priciple:
Wenyao Color Sorting Machine Highlight Features:
1. Excellent sorting performance: Advanced image acquisition system + intelligent image processing algorithm + high quality ejection system=excellent output and rejection;
2. RGB full color tri-chromatic CCD image acquisition system: Top industrial 5400 pixel,CCD high speed linear scan imaging sensor also first-class tailored camera lens for color sorting with a precision identifying tiny defects till 0.01m
3. Super ease operation system: Simple optical system design and accurate in time auto,calibration system plus simplified GUI design help reduce complicacies of machine,commissioning and running, easy operation and maintenance secured.
4. Customized image processing algorithm: Intelligence algorithm integrating image
color difference and defect size difference;
5. Long-life software upgrading for free.
6. OEM service welcomed.
Packing and delivery:
Our custom's site:
Our service:
Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing for free support.
* View our Factory.
After-Sales Service:
* Video indication about machine installment and operation;
* Training how to install the machine, training how to use the machine for free.
* Engineers available to service machinery overseas.
* 7*24 online service hot-line.
* Life-long service for net cost spare parts.
How can a color sorter benefit your business?
Multi-Functional
This product can be used in agricultural, grain, oil, chemical, pharmaceutical and other industries, especially suitable for rice, tea, sesame, beans, seeds, raisins, plastic, ore, peanut, pepper, and other color sorting field.
High Efficiency
Compared with manual sorting, a color sorter machine is labor-saving, time-saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.
Frequently Asked :
Questions:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
Two years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipment, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
By videos or by remote control or local service or engineers could go abroad when required.
5. Will you accept L/C as payment?
L/C ,T/T both OK.
6. Will you test machine before delivery ?
Yes , we will test carefully before delivery ,and save parameters in the machine .
Package :
