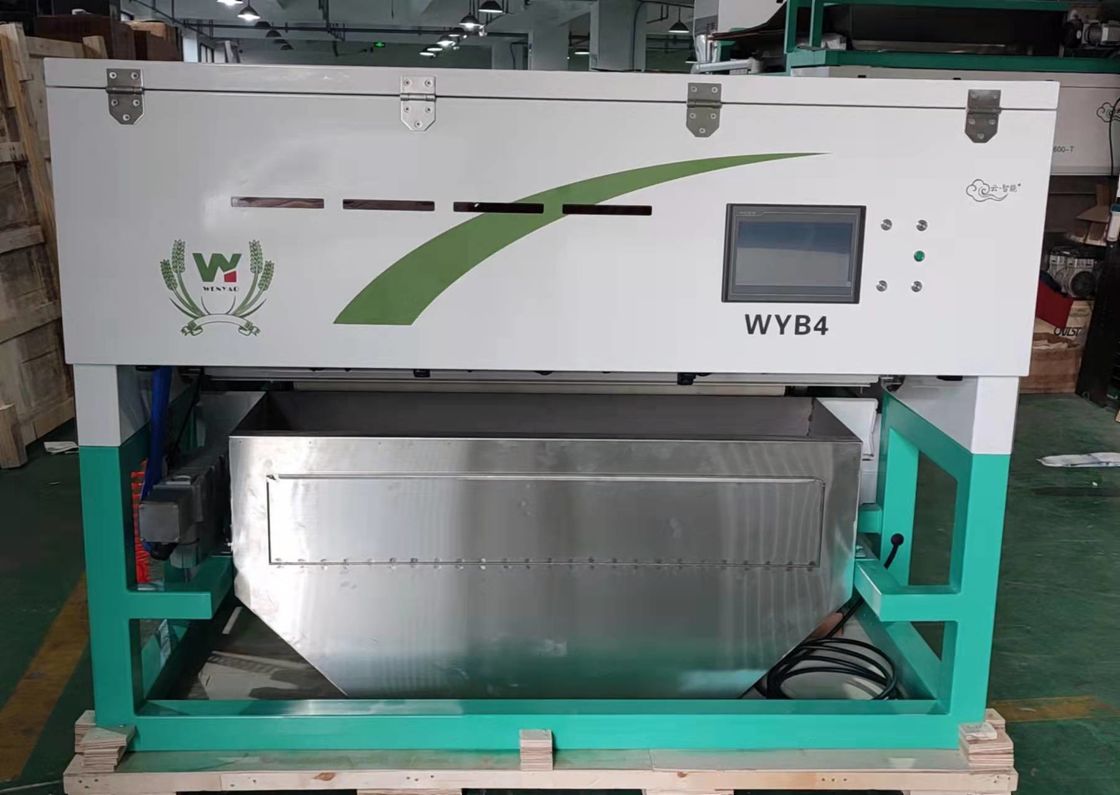

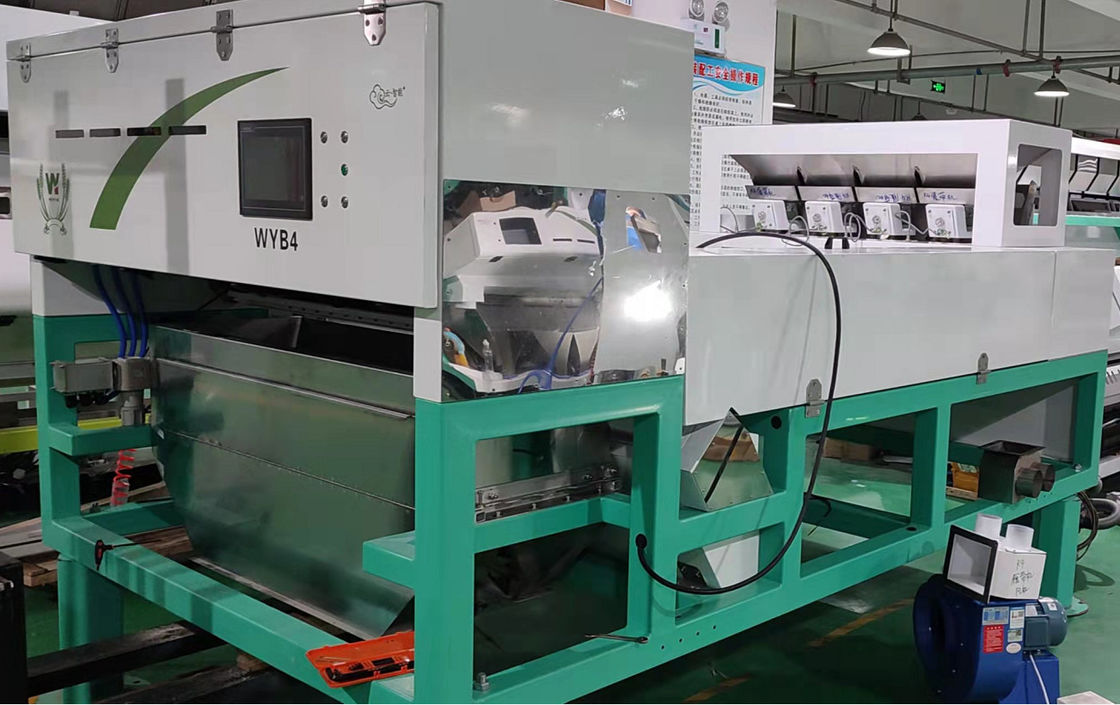

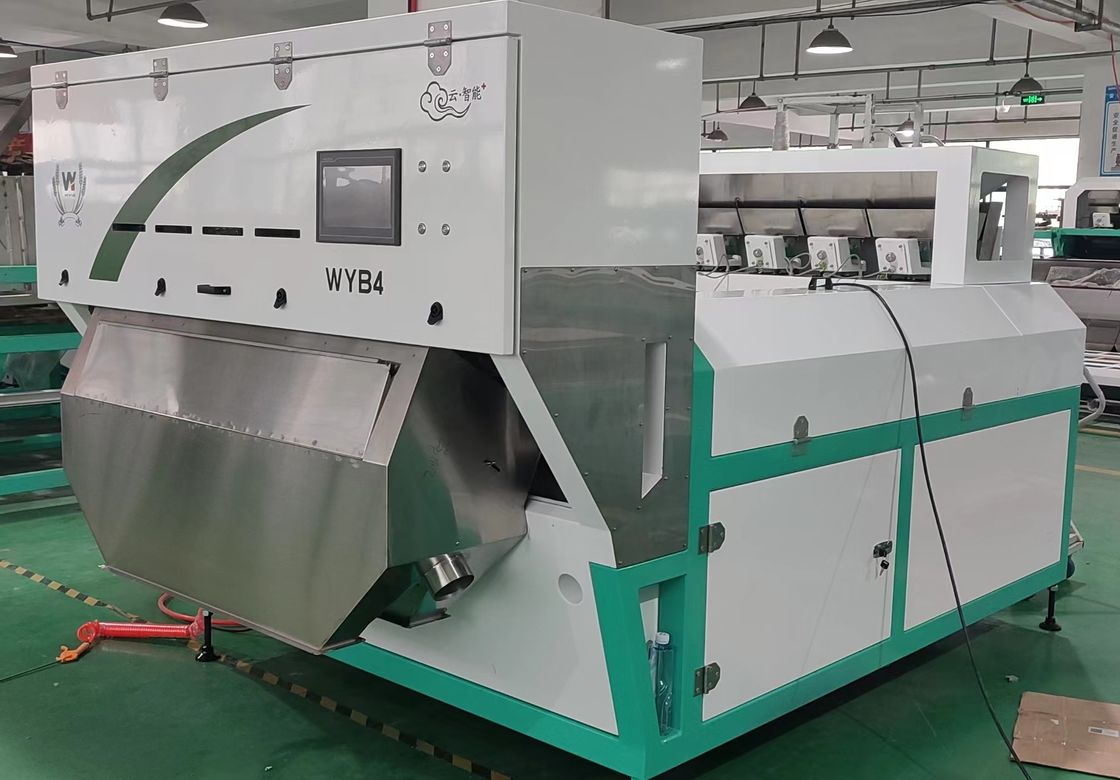

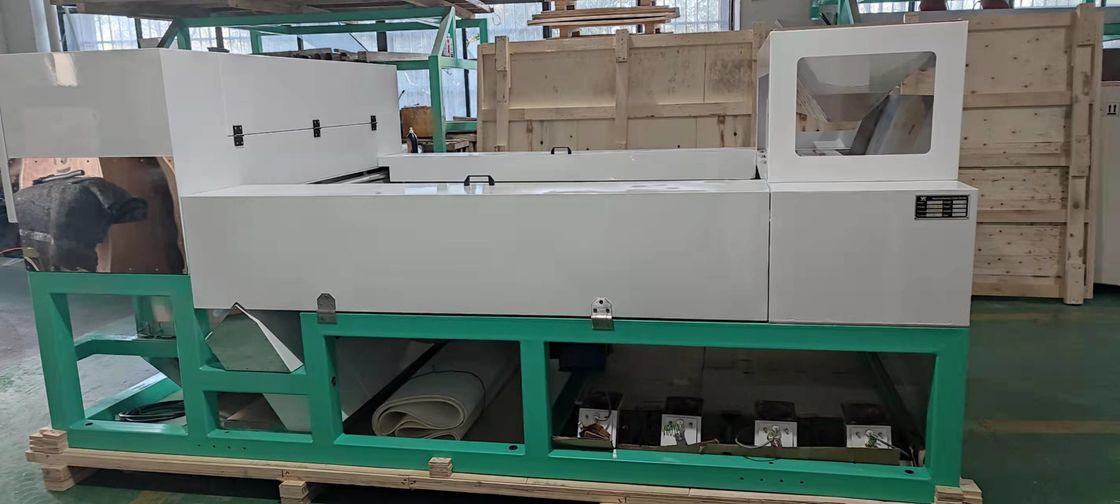

Recycling Mixed Glass Color Sorting Machine Belt Type Glass Mineral Color Sorter
Belt-type color sorters break a smaller percentage of the material and the product stays relatively static during the transport process as it moves horizontally on the belt. In the chute type, material slides on the chute because of gravity, causing collision, friction, and larger vertical movements, thus worsening the ratio of broken material. The belt structure makes the transmission smooth and stable without bouncing of material.
WYB4 Glass sorting machine technical parameters
| MODEL |
WYB4 |
| Chutes/Channels |
4/256 |
| Throughput(t/h) |
6-8t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
4.5kw |
| Power Voltage |
180-240V/50Hz/60Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
1-2.4M3/Min |
| Weight |
1400kg |
| Diamension(L*W*H) |
3173*1914*1420mm |
Belt Color Sorter Main Features
1) High speed lne scan, CCD sensor.-----------CCD Camera
2) Super clear imaging, resolution ratio, solor reduction well, no distortion.------------CCD lens
3) Swift reaction, high sensitivity, reliable, easy operation.--------------Pro-face Touch screen
4) High luminance, low power consumption, long life , reliable.-----------LED light
5) Special for color sorting, high frequency, low power consumption, high sorting accuracy.------------High frequency soleniod Valve
6) High quality food grade belt ; Stable sustain structure ; The import of high performance motor.--------Low broken
Sorting effects
Our customers' site
Our service
Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing for free support.
* View our Factory.
After-Sales Service:
* Video indication about machine installment and operation;
* Training how to install the machine, training how to use the machine for free.
* Engineers available to service machinery overseas.
* 7*24 online service hot-line.
* Life-long service for net cost spare parts.
How can a color sorter benefit your business?
Multi-Functional
This product can be used in agricultural, grain, oil, chemical, pharmaceutical and other industries, especially suitable for rice, tea, sesame, beans, seeds, raisins, plastic, ore, peanut, pepper, and other color sorting field.
High Efficiency
Compared with manual sorting, color sorter machine is labor-saving, time-saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.
