Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS4-256
Contact Us

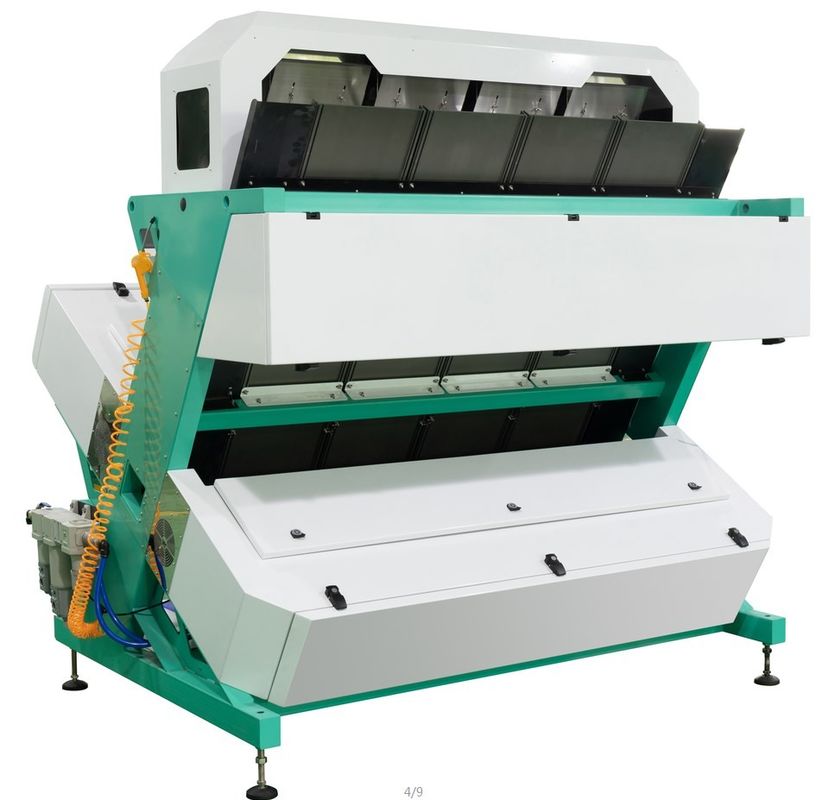

4 Chutes 256 Channels Coffee Bean Color Sorter Coffee Bean Sorting Machine With Wifi Remote Control Service
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
| MODEL | WYCS4-256 |
| Chutes/Channels | 4/256 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.3kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.4M3/Min |
| Weight | 750kg |
| Diamension(L*W*H) | 1855*1540*1852mm |
Features:
1: High precision 5400 linear CCD camera can achieve high resolution recognition and high speed classification. CCD technology allows it to accurately classify materials.
2. The humanized touch screen is easy to learn and operate. A simple touch screen helps our customers to operate it easily and quickly.
3. The uniquely designed chute allows the material to flow uniformly, continuously and smoothly
4. Due to the configuration of the special light source, 10 million types of color coding are possible with a fully adjustable color spectrum. Materials can be classified according to different configurations suitable for different size classifications without the need to change the light source.
5. The new high frequency bulb reduces power consumption, extends responsive life, improves durability, ease of maintenance, and improves color accuracy.
Color sorter work principle:
The working principle of CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color selection process as shown:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our video to you.
6.How about the guarantee period?
A:Two years
