Place of Origin:
Hefei China
Brand Name:
WENYAO
Certification:
ISO9001 and CE
Model Number:
WYCS1-32
Contact Us

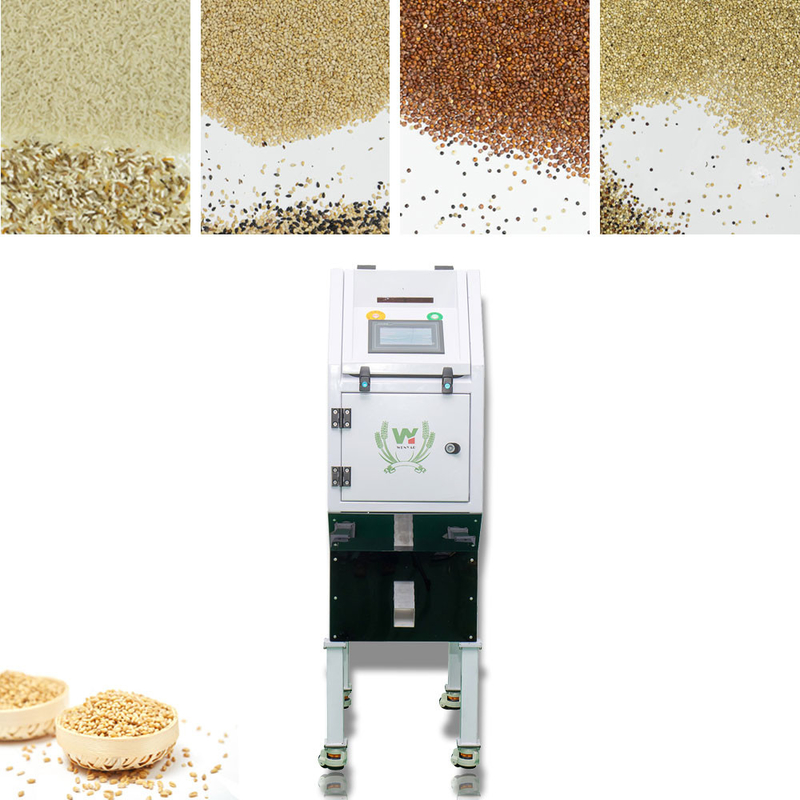

32 Channels CCD Mini Brown Rice Color Sorter Color Sorting Machine

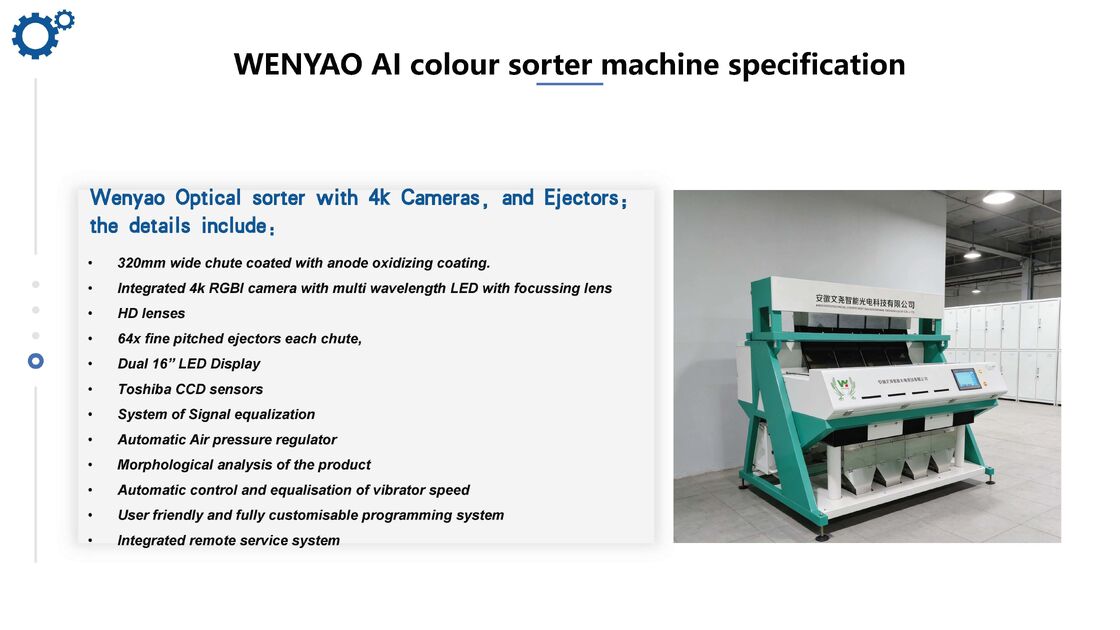

Wenyao color sorter Features:
1. Most advanced RGB cameras with 5400 pixels linear industry CCD sensor .
2. America FPGA processing chip.
3. Japan Toshiba CCD sensor.
4. Metal ejectors/valves with more than one billion lifetime
5. Lens:Japan Nikon Lens .
6. Filter: Japan CKD filter
7. Power source:Taiwan Meanwell
8. All LED light source,more longer lifetime and save power
9. Flexem Humanized touch screen
10. WIFI remote control system ,help end user to debug and monitor machine situation in chinese factory during covid-19 period,Supply non-contactness after service
| MODEL | WYCS1-64 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 500-800 kgs/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 750w |
| Power Voltage | 180-240V/50Hz/60HZ |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 200-600 L/min |
| Weight | 280kg |
| Diamension(L*W*H) | 1556.7*800*1889mm |
2. Wenyao Color Sorting Machine Factory Introduction:
Anhui WenYao Intelligent Photoelectric Technology Co., Ltd. is located in "Science City" reputation, known
as the Great Lakes city - Anhui Hefei China. The company is located in the high-end positioning Yaohai
City Technology Industrial Park Is a comprehensive high-tech enterprise integrating scientific research,
development, production, sales and service of CCD intelligent color sorter and near infrared color sorter.
Mainly for the industry to provide high-end sorting, sorting and other equipment, has for many enterprises
and individuals to provide professional, quality products and services.
| Model | Output(t/h) | Sorting Accuracy(%) | Rejection Rate | Weight(kg) | Whole Power(KW) | Dimensions (L*W*H)mm |
Air Pressure(Mpa) |
| WYCS1-32 | 0.15-0.45 | ≥99.9 | ≥12:1 | 180 | 0.5 | 895*460*1157 | 0.6-0.8 |
| WYCS1-64 | 0.3-0.9 | ≥99.9 | ≥12:1 | 280 | 0.75 | 780*1527*1543 | 0.6-0.8 |
| WYCS2-128 | 0.6-2.5 | ≥99.9 | ≥12:1 | 450 | 1.1 | 1250*1535*1832 | 0.6-0.8 |
| WYCS3-192 | 1.0-4.0 | ≥99.9 | ≥12:1 | 600 | 1.6 | 1620*1535*1832 | 0.6-0.8 |
| WYCS4-256 | 1.4-5.0 | ≥99.9 | ≥12:1 | 750 | 2.3 | 1855*1540*1852 | 0.6-0.8 |
| WYCS5-320 | 2.0-6.0 | ≥99.9 | ≥12:1 | 900 | 2.9 | 2244*1540*1852 | 0.6-0.8 |
| WYCS6-384 | 2.5-8.0 | ≥99.9 | ≥12:1 | 1100 | 3.1 | 2595*1540*1852 | 0.6-0.8 |
| WYCS7-448 | 3.0-10.0 | ≥99.9 | ≥12:1 | 1350 | 3.9 | 2905*1540*1852 | 0.6-0.8 |
| WYCS8-512 | 3.5-12.0 | ≥99.9 | ≥12:1 | 1500 | 5 | 3025*1540*1852 | 0.6-0.8 |
| WYCS10-640 | 4.5-16.0 | ≥99.9 | ≥12:1 | 1800 | 6.5 | 3750*1540*1852 | 0.6-0.8 |
| WYCS12-768 | 5.5-20.0 | ≥99.9 | ≥12:1 | 2100 | 7 | 4430*1540*1852 | 0.6-0.8 |
3. Examples of Color Sorting Examples
FAQ:
1. How to install and use the machine?
We will supply the Installating instructions or videos for the clinets.If needful, our engineers will help the clients to train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
