Place of Origin:
Hefei China
Brand Name:
WENYAO
Certification:
ISO9001 and CE
Model Number:
WYCS1-64
Contact Us
Video
Video

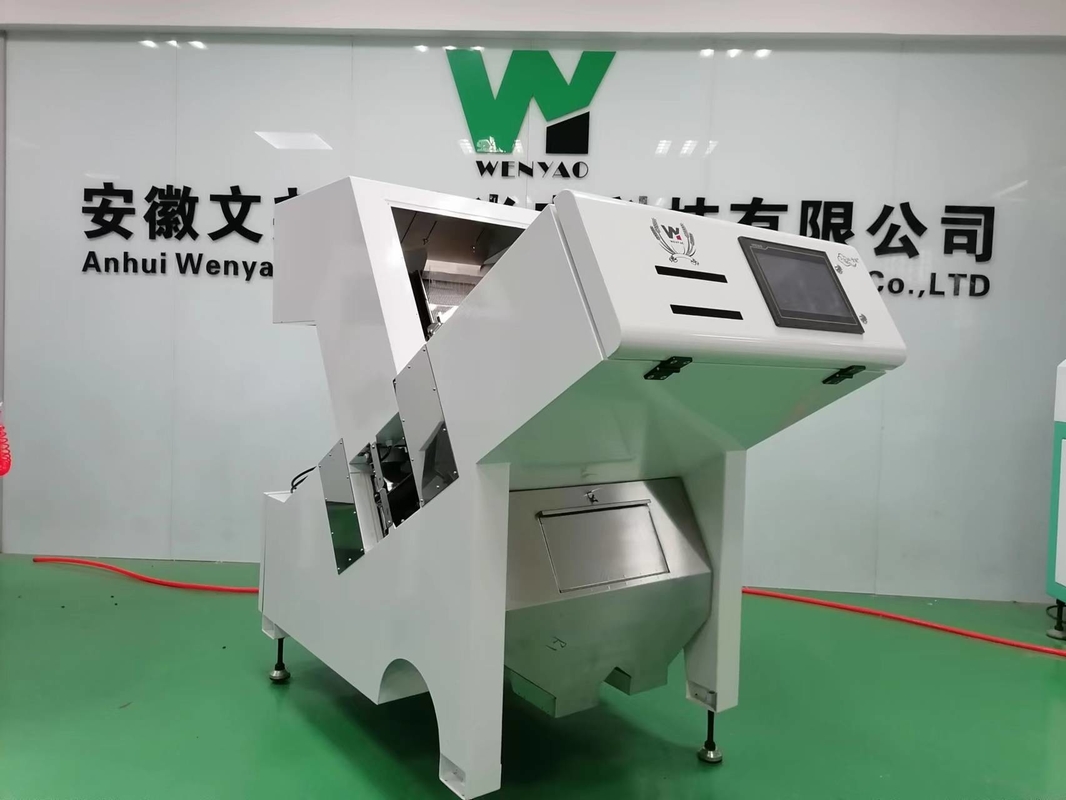

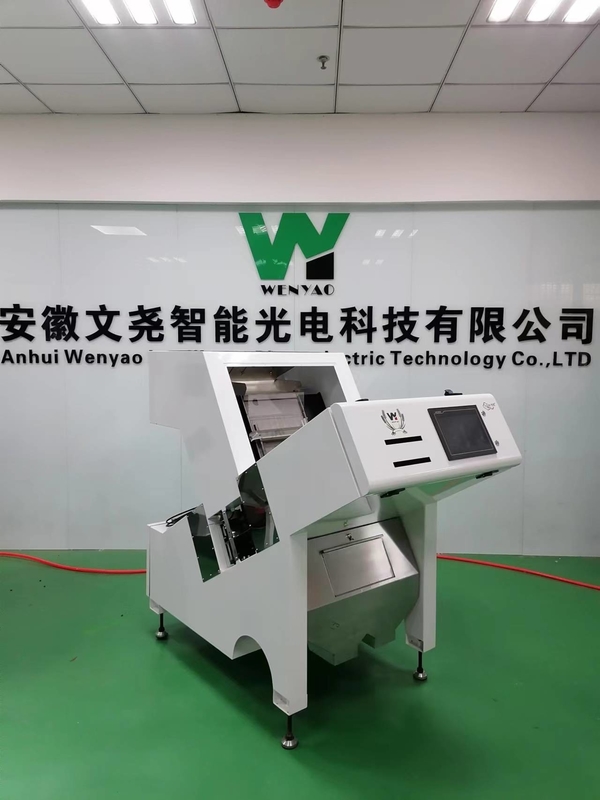

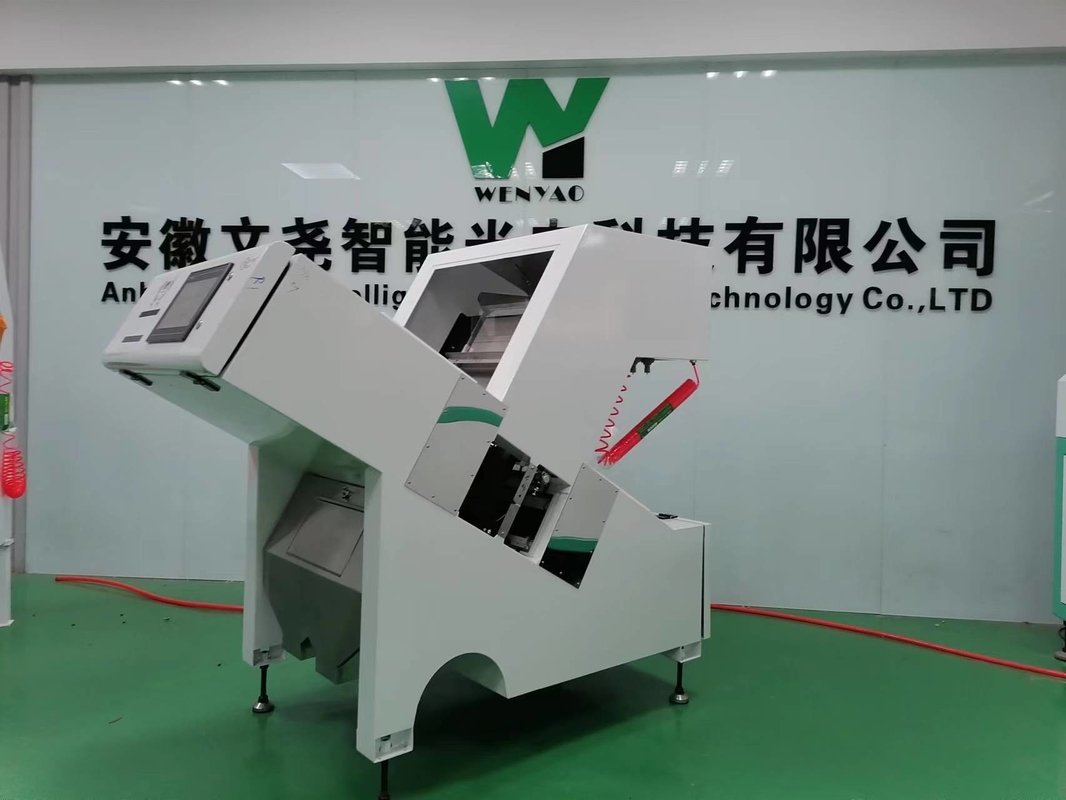

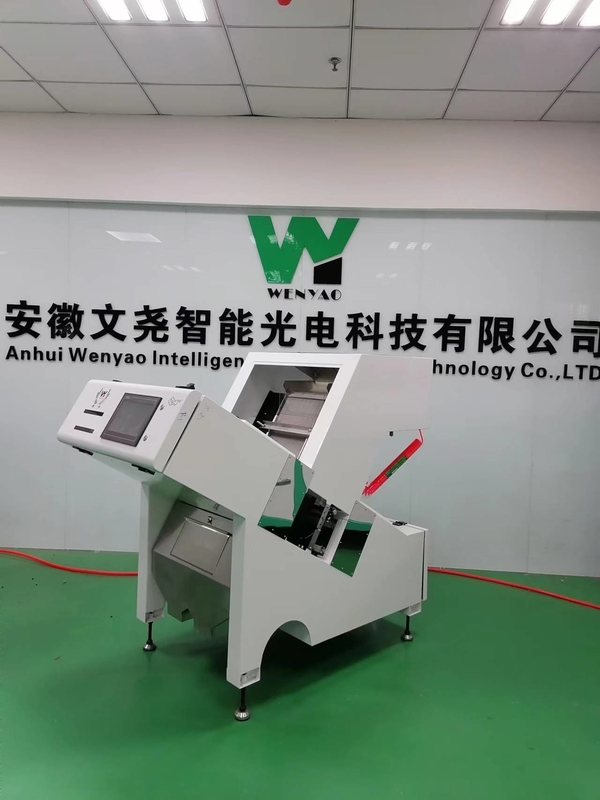

Hazelnut Colour Sorter Machine For Hazelnuts Color Sorting Machine With Best Price
2. Technical Parameters:
| Model | Output(t/h) | Sorting Accuracy(%) | Rejection Rate | Weight(kg) | Whole Power(KW) | Dimensions (L*W*H)mm |
Air Pressure(Mpa) |
| WYCS1-32 | 0.15-0.45 | ≥99.9 | ≥12:1 | 180 | 0.5 | 895*460*1157 | 0.6-0.8 |
| WYCS1-64 | 0.3-0.9 | ≥99.9 | ≥12:1 | 280 | 0.75 | 780*1527*1543 | 0.6-0.8 |
| WYCS2-128 | 0.6-2.5 | ≥99.9 | ≥12:1 | 450 | 1.1 | 1250*1535*1832 | 0.6-0.8 |
| WYCS3-192 | 1.0-4.0 | ≥99.9 | ≥12:1 | 600 | 1.6 | 1620*1535*1832 | 0.6-0.8 |
| WYCS4-256 | 1.4-5.0 | ≥99.9 | ≥12:1 | 750 | 2.3 | 1855*1540*1852 | 0.6-0.8 |
| WYCS5-320 | 2.0-6.0 | ≥99.9 | ≥12:1 | 900 | 2.9 | 2244*1540*1852 | 0.6-0.8 |
| WYCS6-384 | 2.5-8.0 | ≥99.9 | ≥12:1 | 1100 | 3.1 | 2595*1540*1852 | 0.6-0.8 |
| WYCS7-448 | 3.0-10.0 | ≥99.9 | ≥12:1 | 1350 | 3.9 | 2905*1540*1852 | 0.6-0.8 |
| WYCS8-512 | 3.5-12.0 | ≥99.9 | ≥12:1 | 1500 | 5 | 3025*1540*1852 | 0.6-0.8 |
| WYCS10-640 | 4.5-16.0 | ≥99.9 | ≥12:1 | 1800 | 6.5 | 3750*1540*1852 | 0.6-0.8 |
| WYCS12-768 | 5.5-20.0 | ≥99.9 | ≥12:1 | 2100 | 7 | 4430*1540*1852 | 0.6-0.8 |
3. Machine Features:
Wenyao color sorter Features:
CCD Camera
Japanese TOSHIBA 5340 line
ar CCD, core guarantee of high precision and quick sorting , the smallest to 0.04mm could be locked.
LED system
World leading stable long lifetime LED light, customized LED solution accepted according to specific material.
Control Unit
Advanced Image Processing System, synchronized for multiple operations and sorting mode. Adjust sorting operation to guarantee the sorting accuracy based on complex colors and shapes.
Chute System
Advanced chute design with hundreds of experiments, ensuring smooth flowing, uniform falling speed and less material consumption, optimized machine structure for disassembly and maintenance.
Ejector Valve
Italian new type of high frequency electromagnetic valve allows for accurate control of air flow power and direction with long lifetime.
Interface with Auto Testing
Self-developed auto diagnosis function with touching screen, automatically operate the testing of injector, pressure, camera, control board, background LED light and others when starting up.
Other Components
World class parts supplier, such as filter of Korea YSC and Japanese CKD. Premium quality with those famous global brands.
4. Examples of Color Sorting Examples
Wenyao multifunction color sorter application
Agriculture products color sorter
Used for:Rice,Wheat,Corn,Soybean,Peanut,Nut,Grain,Cereal,Seeds,Bean,Sunflower seeds,Waltnut,Almond,Quinoa,Salt,Medlar,Pistachio,Kidney bean,Red bean,Black bean,Green bean,Coffee bean,Fava bean,Mung bean,Millet,Sorghum,Peeled garlic,Dehydrated garlic,Lotus seed,Sesame,Pinenut kernel,Watermelon seeds,Cotton seeds,Melon seeds,Buckwheat,Oats,Barley,Cardamon,Pea,Lentil,Cashew nut,Raisin,Jujube,Evaporate vegetables,Sugar,Onion,Potato,Blueberry,Tomato,Mango,Chickpea,Olives,Chili,others.
Industrial product color sorter
Used for:Waste Plastics,Plastic pellet,Plastic pieces,Plastic granule,Plastic bottle cap flake,PET bottle scrap,ABS plastic flake,PP plastic scrap,Recycled plastic,Quartz stone,Quartz sand,Potassium feldspar,Barite,Calcite,Limestone,Pearl,Marble and others.
River&Sea food color sorter
Used for: Dried shrimp, fish, small fish clove and so on.
Customized color sorter
Can be customized according to customer specific color selection program.
5. Our Service:
A: For software:We have installed WIFI remote control system on machine,Once machine arrived in your local we will connect with machine touch screen provide technical assistance from Chinese factory.
B: For hardware:We will supply you the spare parts ship together with machine,In case you face hardware problems,we will guide you how to repair by live videos.
6. Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 15 - 20 days after received deposit.
