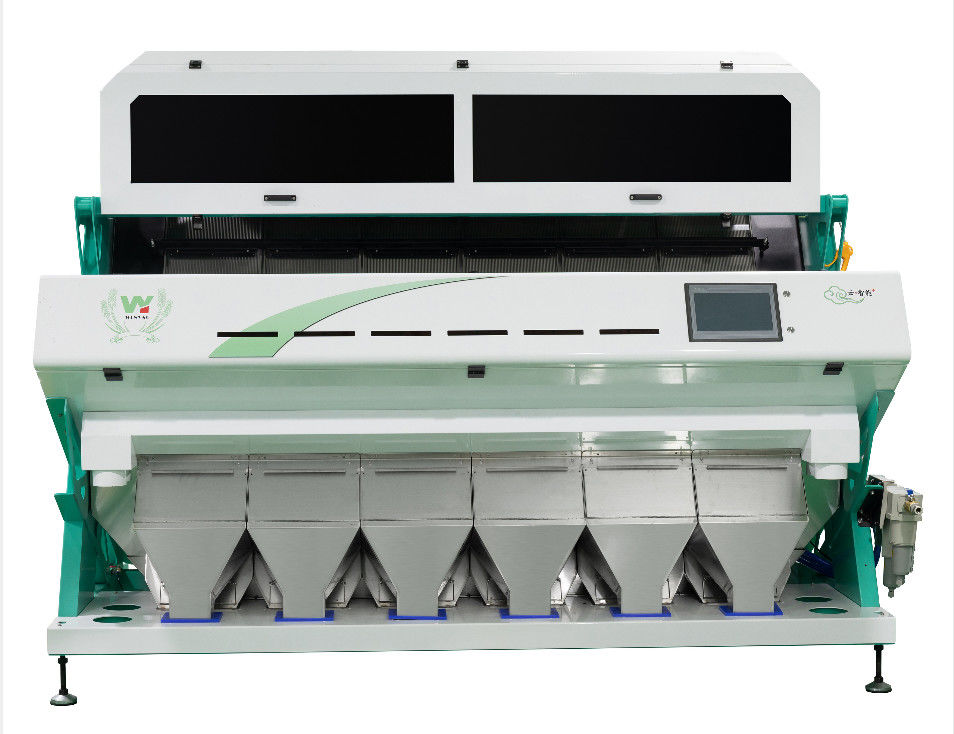

6 Chutes 384 Channels Sesame Seeds Color Sorter Sesame Seeds Sorting Machine With Wifi Remote Control Service

6 Chutes 384 Channels Sesame Seeds Color Sorter Sesame Seeds Sorting Machine With Wifi Remote Control Service

6 Chutes Sesame Seed Color Sorter

384 Channels Sesame Seed Color Sorter

Seed Color Sorter Remote Control

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS6-384

Contact Us

Request A Quote
Product Details
Function:
Color Sorting
Sorting Accuracy(%):
≥99.99
Condition:
New
Color:
Blue,according To Customer's Need
Warranty:
2 Years
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service
Application:
Rice Processing,sorting,wheat,grain Cleaning And Separator
Ejector:
Metal
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package Packing size(L*W*H):2.70*1.72*2.05M
Delivery Time
7-10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

6 chutes 384 channels sesame seeds color sorter sesame seeds sorting machine with wifi remote control service

When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.



Technical Parameters:

MODEL WYCS6-384
Chutes/Channels 6/384
Throughput(t/h) 1-2t/h
Sorting Aaccuracy ≥99.99%
Power 3.1kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <3.2M3/Min
Weight 1100kg
Diamension(L*W*H) 2595*1540*1852mm


Features:

►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.

►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.



Color sorter work principle:



6 Chutes 384 Channels Sesame Seeds Color Sorter Sesame Seeds Sorting Machine With Wifi Remote Control Service 0


The working principle of CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color selection process as shown:

Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)

Examples of color sorting:



6 Chutes 384 Channels Sesame Seeds Color Sorter Sesame Seeds Sorting Machine With Wifi Remote Control Service 1

FAQ:

1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.

2. How long about the guarantee period?

2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.

4. How about after sales service?

Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.



Customer's Site :



6 Chutes 384 Channels Sesame Seeds Color Sorter Sesame Seeds Sorting Machine With Wifi Remote Control Service 26 Chutes 384 Channels Sesame Seeds Color Sorter Sesame Seeds Sorting Machine With Wifi Remote Control Service 36 Chutes 384 Channels Sesame Seeds Color Sorter Sesame Seeds Sorting Machine With Wifi Remote Control Service 46 Chutes 384 Channels Sesame Seeds Color Sorter Sesame Seeds Sorting Machine With Wifi Remote Control Service 5




Why choosing Wenyao

1,Advanced image acquisition system
color sorter machine use the high resolution monochromatic camera or RGB camera(5000+ pixels) with high quality industrial lens to achieve clear and accurate image acquisition.The camera could capture the micro defects of material instantly.

2,Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.

3,Unique chutes processing technology
The special anodizing and hardening technology can greatly improve the channel smoothness and ware resistance to guarantee high production.

4,High quality solenoid valve(ejector)
color sorters are equipped with high quality solenoid valve.The valve has longer lifespan,high frequency and low air consumption.The working frequency is 1000 times per second,which guarantees the accurate and perfect ejecting.For the different sizes and characteristics of material particle, NAGE optical sorters use the solenoid valve of different sizes.

5,High efficiency and reliable light source
Advanced LED lighting technology with advantages of super high intensity,long lifetime&perfect performance.

6,Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.
