Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS4-256
Contact Us

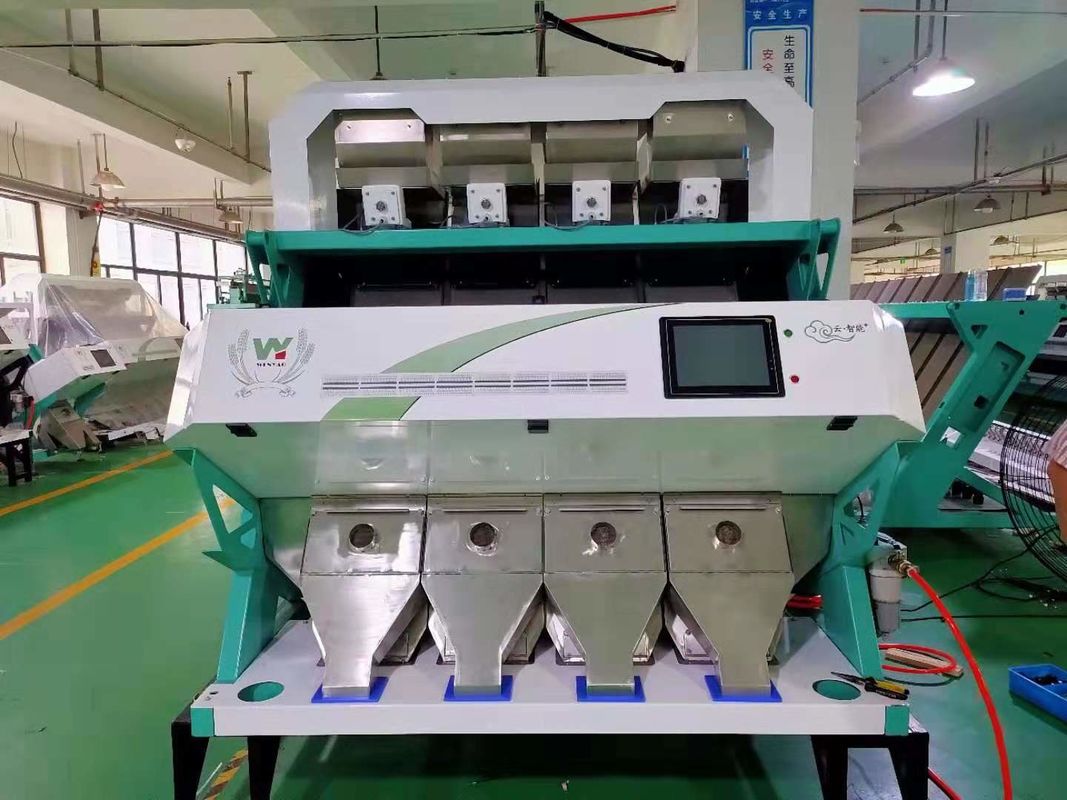

High Sorting Accuracy Rice Color Sorter Machine with remote control function
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
| MODEL | WYCS4-256 |
| Chutes/Channels | 4/256 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.3kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.4M3/Min |
| Weight | 750kg |
| Diamension(L*W*H) | 1855*1540*1852mm |
Features:
1. Automatically collecting hyper space data such as color,shape,size,and defect to cachieve accurate acquisition of raw materila features
2. The world's leading full-color linear array scanning technology and DPS+FPGA parallel multi-line pipeline processing technologgy to solve the problem, use multiple intelligent algorithm, high accuracy sorting, special for small speck, light yellow, chalky, discolor.
3. The self-developed magnetically controlled high-frequency solenoid valve achieves flexible contact between devices and has a service life of more than 6 to 10 billion times. Meanwhile, intelligent repair technology reduces maintenance costs and extends liofetime of valve.
4. The advances digital non-polar intelligent dimming technology can automatically match the best brightness according to the material selection requirements and the changes of enviroment to guarantee the sorting perfoermance.
5. Intelligent operation platform with storage of 100 sorting modes can achieve multiple functions of one machine, user-friendly control and easy to operate.
6. The patented intelligent dust-extraction system can rapidly remove light objects and dusts adhered to the materials, for which ensuring the sorting accuracy and improving machine efficient.
Rice Color sorter work principle:
The working principle of CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color sorter process as shown:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our video to you.
6.How about the guarantee period?
A:Two years warranty

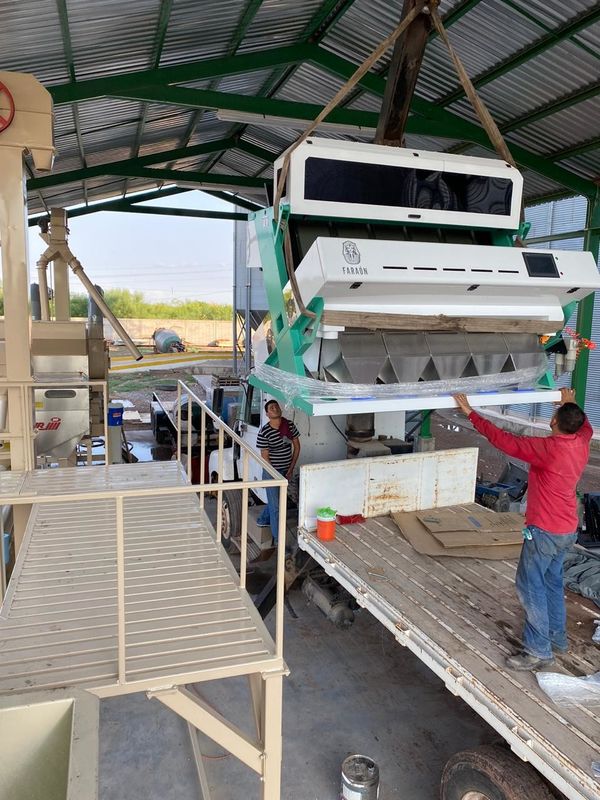

Customer's site :
