Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS4-256
Contact Us

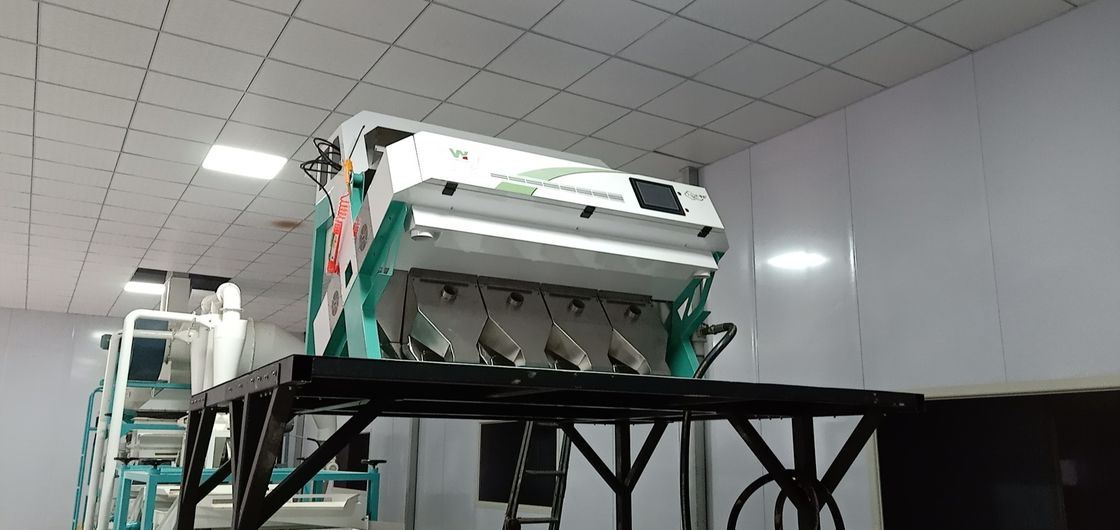

High Resolution Chute Type CCD Rice Color Sorter Machine in China
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
| MODEL | WYCS4-256 |
| Chutes/Channels | 4/256 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.3kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.4M3/Min |
| Weight | 750kg |
| Diamension(L*W*H) | 1855*1540*1852mm |
Features:
1. Adopt PHOTO-SENSOR double-side color sorting technology; The specialized image acquisition and processing system computers and processes the spectral parameter and the feature of the image in high speed; Adopt bus structure, with higher signal consistency and capability of resisting disturbance, better stability, and simpler structure;
2. Adopt mainstream high-density high-capacity scene programmable logic device, with higher integration level, more easier upgrading of software and hardware; Flexible sorting modes setting available for different raw materials to meet the demands of sorting discolor, discolor reverse, milky, milky reverse, milky & yellow; Accurately distinguish tiny rice macula and light yellow color shading;
3. Adopt real color 8.4 display; Equipped with high-reliability four-wire resistance touch screen; Correct location of touch screen at any time; User-friendly operation interface; Simple and easy to operate;
4. Perfect self-inspection function realizes real-time tracking and malfunction indication of spray valve system, working pressure, constant temperature system and illumination system.
Notes: The color sorting performance parameter in the above table takes Standard Grade 1 Japonica Rice (cereal content: 2%) as example. The specific parameter may be different according to different materials and cereal contents.
TheColor sorter work principle as below :
The working principle of CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color sorter processing as shown:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our video to you.
6.How about the guarantee period?
A:Two years warranty

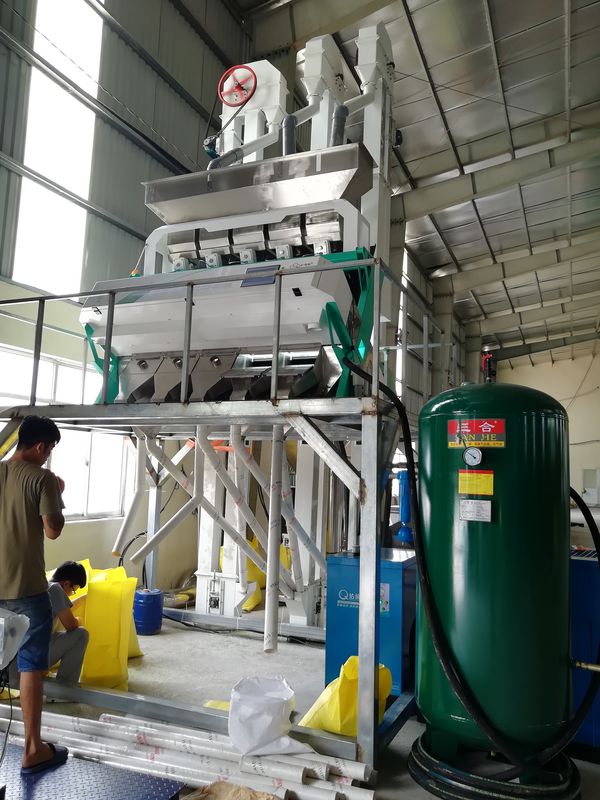

Customer's site :
