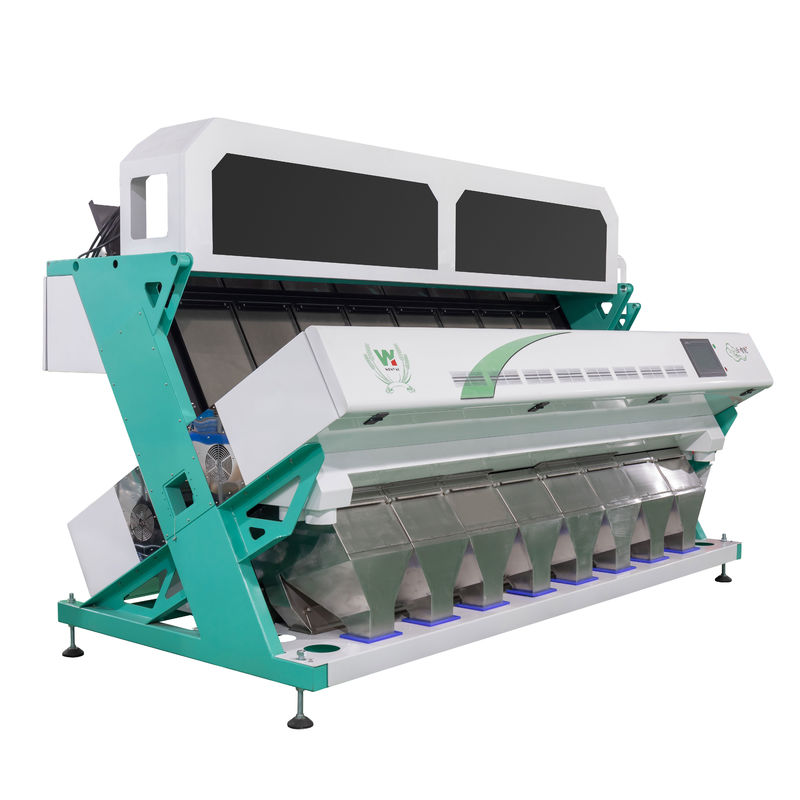

Wenyao High Throughput 8 Chutes Multifunction Color Sorter

Wenyao High Throughput 8 Chutes Multifunction Color Sorter

Multifunction Wenyao Color Sorter

Multifunction Color Sorter 8 Chutes

Multifunction Color Sorter High Throughput

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS8-512

Contact Us

Request A Quote
Product Details
Function:
Color And Shape Sorting
Sorting Accuracy(%):
≥99.99
Ejector:
Metal
Color:
Blue,according To Customer's Need
Light:
LED
After-sales Service Provided:
Available
Application:
Coffee Bean Sorting
CCD:
Toshiba
Camera:
RGB Camera
Lamp:
Variable Light Background
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package Packing size(L*W*H):3.35*1.72*2.05M
Delivery Time
7-10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

Wenyao High Throughput 8 Chutes Multifunction Color Sorter



Wenyao Multifunction Color Sorter Description:

When wenyao color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.



Technical Parameters:

MODEL WYCS8-512
Chutes/Channels 8/512
Throughput(t/h) 3-6t/h
Sorting Aaccuracy ≥99.99%
Power 5kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <4M3/Min
Weight 1500kg
Diamension(L*W*H) 3025*1540*1852mm

Throughtput:Different impurity with different throughput.



Features:
►5400Pixel CCD image acquisition system with high speed chip.

►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.

Variable light background easy to operate.

  •



Examples of color sorting:



Wenyao High Throughput 8 Chutes Multifunction Color Sorter 0

Welcome your inquiry:

Wenyao High Throughput 8 Chutes Multifunction Color Sorter 1
