Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS4-256
Contact Us
Multifunction Color Sorter Machine Rice Color Sorters For Rice Sorting Machine
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
| MODEL | WYCS4-256 |
| Chutes/Channels | 4/256 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.3kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.4M3/Min |
| Weight | 750kg |
| Diamension(L*W*H) | 1855*1540*1852mm |
Color Sorter Features:
1: High precision 5400 linear CCD camera can achieve high resolution recognition and high speed classification. CCD technology allows it to accurately classify materials.
2. The humanized touch screen is easy to learn and operate. A simple touch screen helps our customers to operate it easily and quickly.
3. The uniquely designed chute allows the material to flow uniformly, continuously and smoothly
4. Due to the configuration of the special light source, 10 million types of color coding are possible with a fully adjustable color spectrum. Materials can be classified according to different configurations suitable for different size classifications without the need to change the light source.
5. The new high frequency bulb reduces power consumption, extends responsive life, improves durability, ease of maintenance, and improves color accuracy.
What is Color Sorter :
Color Sorters are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.
The rice sorting technology is according to the color differences of rice (husked paddy) materials, using a high-resolution CCD optical sensor to separate different stones, black rice, etc. It is the final step after polishing rice with a rice polisher. Sorting machines improve product quality and add social benefits.
Color sorter Principle as shown:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
FAQ:
1.Question:How about engineers service oversea?
A:Engineers available to service machinery overseas.
2.Question:How to use the machine?
A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3.Question:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our video to you.
4.Question:How about the guarantee period?
A:One year.
5.Question:Will you accept L/C as payment?
A:L/C ,T/T is OK.
6.Q:Do you have any other spare parts for the customer?
A:Yes,we will supply you some spare parts.
7.Question:Which machine will work together with our color sorter which you can supply?
A:Air compressor,Air tank,Air filters,Air dryer,Light sources,Cleaning brushes,etc
Certificates And Patents:

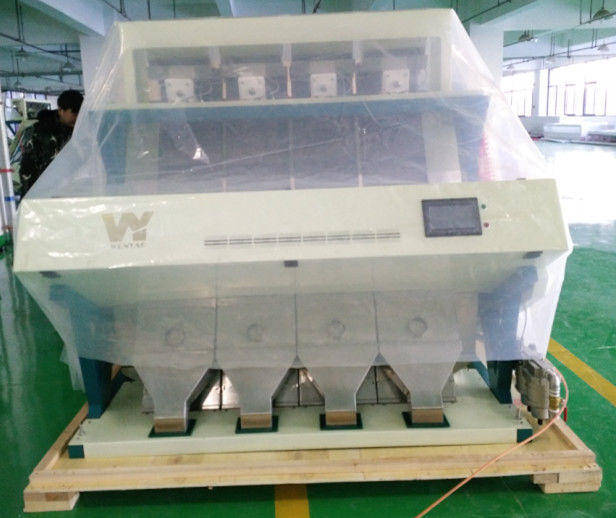

Packing and Delivery :
Send your inquiry directly to us
