High Resolution Cameras Plastic Color Sorter Machine For Color Sorter

High Resolution Cameras Plastic Color Sorter Machine For Color Sorter

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS4-256

Contact Us

Request A Quote
Product Details
Function:
Ccd Color Sorter Machine
Condition:
New Color Sorting Machine
Sorting Accuracy(%):
More Than 99.99
Warranty:
2 Years Warranty
Color:
White ,blue ,green ,yellow
Application:
CCD Colour Sorter Machine
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available
Camera:
Toshiba
Pixel Of Camera:
5400
Optimized Carryover(good:bad):
12:1
Channels:
256
Voltage:
220V 50HZ, 220V 50HZ
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood Box package Packing size(L*W*H):2.15*1.72*2.05M
Delivery Time
15 - 20 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100PCS Per Month
Product Description

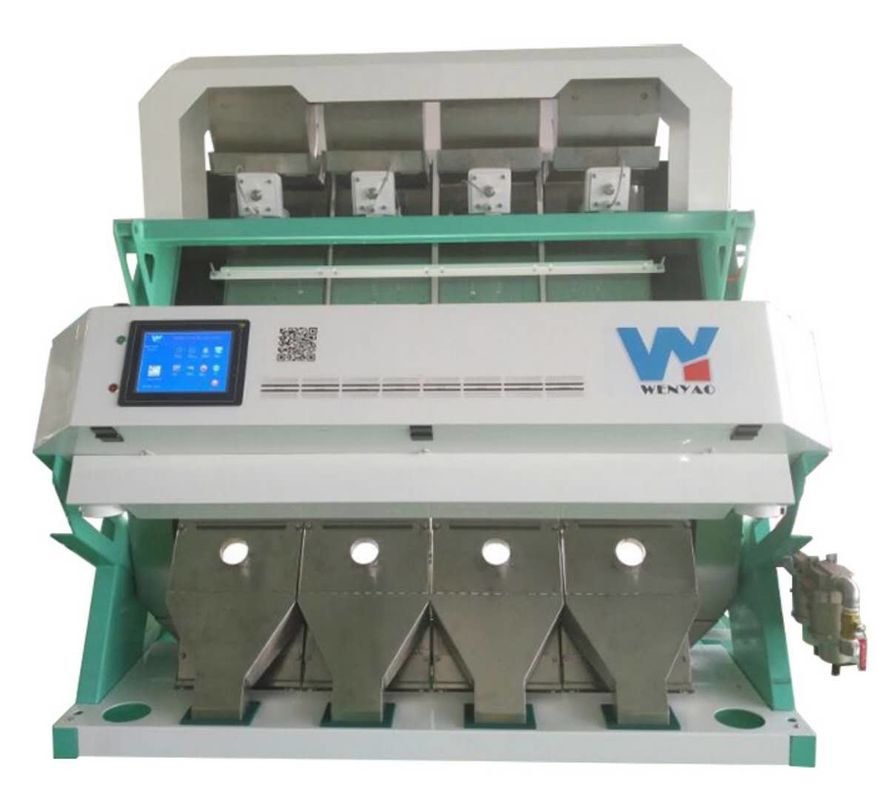

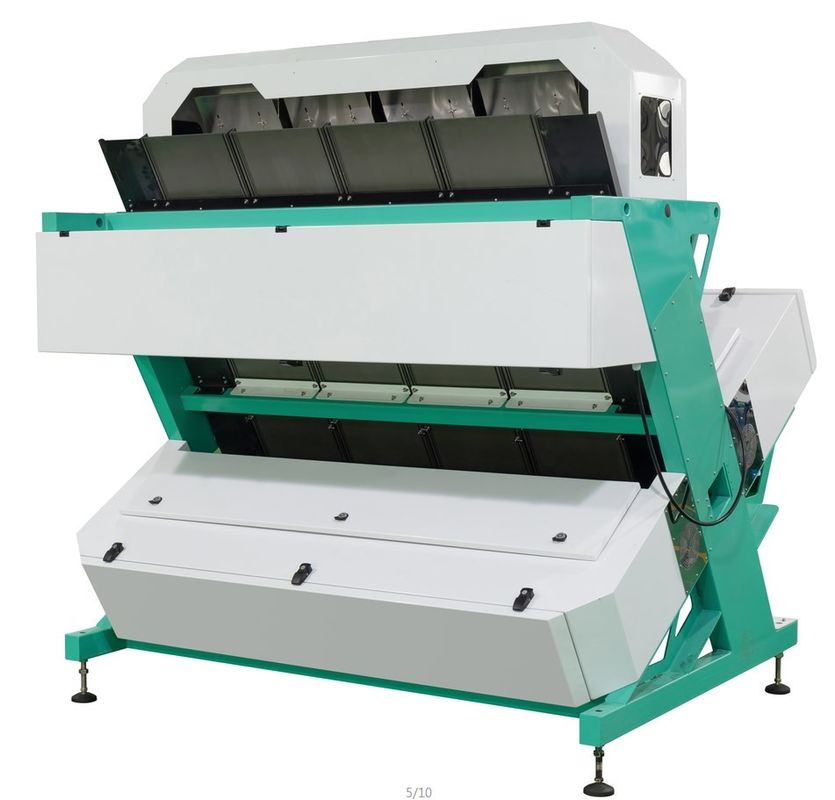

High Resolution Cameras Plastic Color Sorter Machine For Color Sorter

When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.

Technical Parameters:

MODEL WYCS4-256
Chutes/Channels 4/256
Throughput(t/h) 2-3t/h
Sorting Aaccuracy ≥99.99%
Power 2.3kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <2.4M3/Min
Weight 750kg
Diamension(L*W*H) 1855*1540*1852mm




Features:



FEATURES 1:

5400-pixel CCD camera makes sure that, it is able to recognze more accurately,analyze more quickly and sort more precisely
The highest resolution is as high as 0.02 mm-2, which can accurately identify small defects and spots in the material.



FEATURES 2:


Imported high-quality solenoid valves makes machines work more stably for longer time. The new type of high frequency valve allows low consumption of electricity , high durability,and easy maintenance.

FEATURES 3:


Humanized touch panel,which is easier to learn, more convenient to operate.Concise touch panel helps customer operate easily and promptly. It is also able to support for multiple languages, preservation and switching of multiple color selection mode



FEATURES 4:


American ultra-high speed FPGA processor, 3D intelligent identification technology.Intelligent system with self-learning,self-operating Powerful image processing algorithm can accurately identify the color and shape of materials.



Color sorter Definition :



Color Sorters are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.

The rice sorting technology is according to the color differences of rice (husked paddy) materials, using a high-resolution CCD optical sensor to separate different stones, black rice, etc. It is the final step after polishing rice with a rice polisher. Sorting machines improve product quality and add social benefits.






Color sorter Principle as shown:

Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)

High Resolution Cameras Plastic Color Sorter Machine For Color Sorter 0





Examples of color sorting:



High Resolution Cameras Plastic Color Sorter Machine For Color Sorter 1

Advantage:

Our engineer: Free direct the installation and operation of the equipments and train operators for customer.
Our machine: Safe and reliable, efficient and energy saving, easy operating.
Our delivery: In time with English operating instruction program.
Our after-sale service: Timely, professionally



FAQ:

1.Q:How about engineers service oversea?
A:Engineers available to service machinery overseas.

2.Q:How to use the machine?
A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you, how to use when he go to your country to debug the machine.

3.Q:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our video to you.

4.Q:How about the guarantee period?
A:two years.

5.Q:Will you accept L/C as payment?
A:L/C ,T/T,Money Gram, Western Union is OK.
6.Q:Do you have any other spare parts for the customer?
A:Yes,we will supply you some spare parts.

7.Q:Which machine will work together with our color sorter which you can supply?
A:Air compressor,Air tank,Air filters,Air dryer,Light sources,Cleaning brushes,etc



Q:How about your after-sales policy?

A:Timely, efficient, customer first

(1)One-year warranty (life-time service)

(2)Online support and professional video guidance



Certificates And Patents:

High Resolution Cameras Plastic Color Sorter Machine For Color Sorter 2
