Full Automic Grain Color Sorter Corn Wheat Rye Quinoa Sorting Machine With High Resolution
Product Features:
1. Adopting 5400 pixels high-accuracy linear CCD camera, professional images acquisition and processing system can process images' parameters at high speed.
2. Bus structure ensures high consistency of signal, strong anti-interference capability, better stability and more simplified structure.
3. Minimum discolor area of 0.08 mm2 can be accurately identified, and the checking area is adjustable according to sorting requirement.
4. Both flat type and channels type U-shaped chutes are available, hence the color sorter can sort many other grains and granules.
5. Embeded operation system, user-friendly interface, convenient operation.
Product Application:
Technical Parameters:
| MODEL | WYCS1-32 |
| Chutes/Channels | 1/32 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.3M3/Min |
| Weight | 180kg |
| Diamension(L*W*H) | 460*895*1356mm |

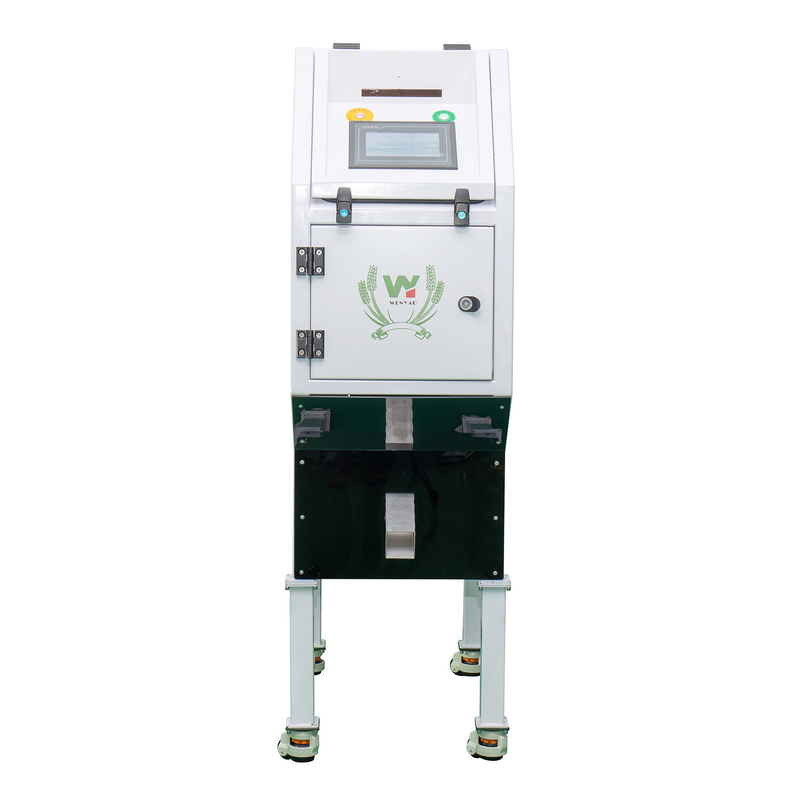

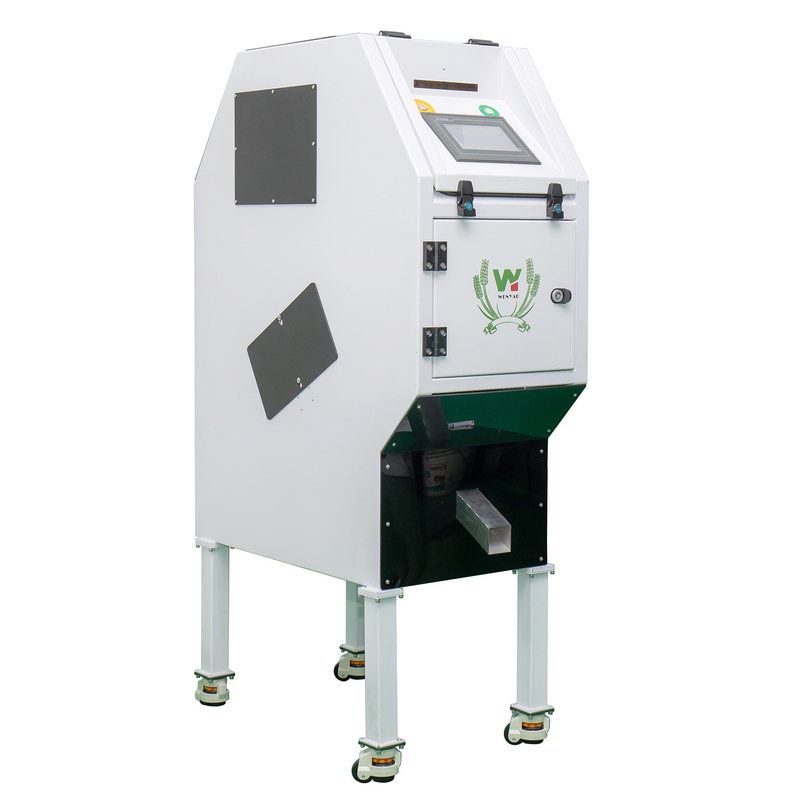

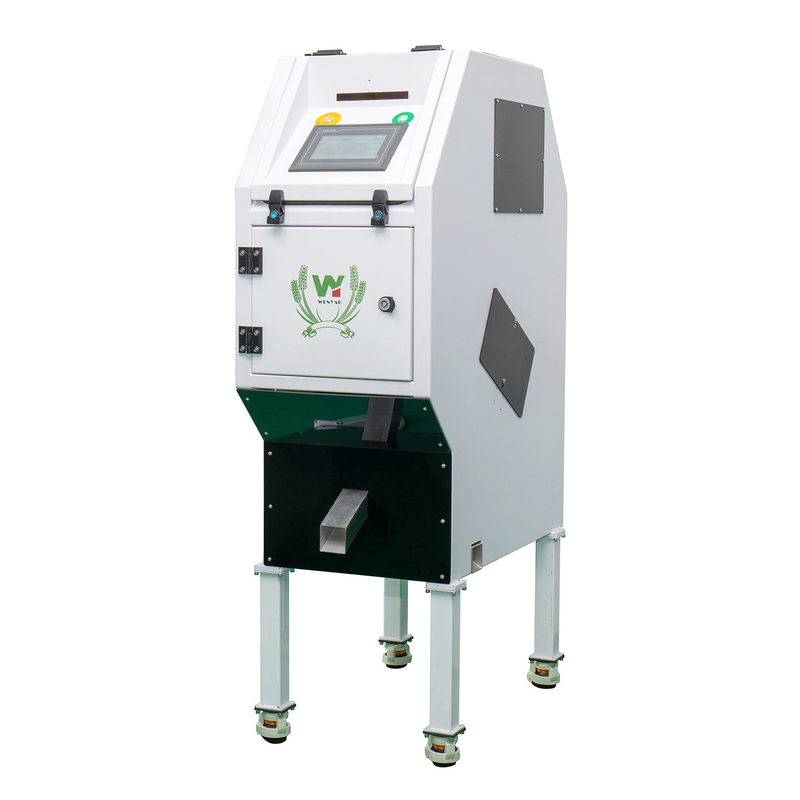

Detailed images:
CCD Mini Grain Color Sorter Have Following Advanced Features:
Packing delivery:
FAQ:
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard). we send our video to you.
4. Will you accept L/C as payment?
L/C ,T/T is OK .
5.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
6.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
Examples of grain wheat color sorting:
Examples of other color sorting:
Why chose WENYAO?
1.Advanced image acquisition system
NAGE color sorter machine use the high resolution monochromatic camera or RGB camera(5000+ pixels) with high quality industrial lens to achieve clear and accurate image acquisition.The camera could capture the micro defects of material instantly.
2.Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.
3.Unique chutes processing technology
The special anodizing and hardening technology can greatly improve the channel smoothness and ware resistance to guarantee high production.
