Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS4-256
Contact Us

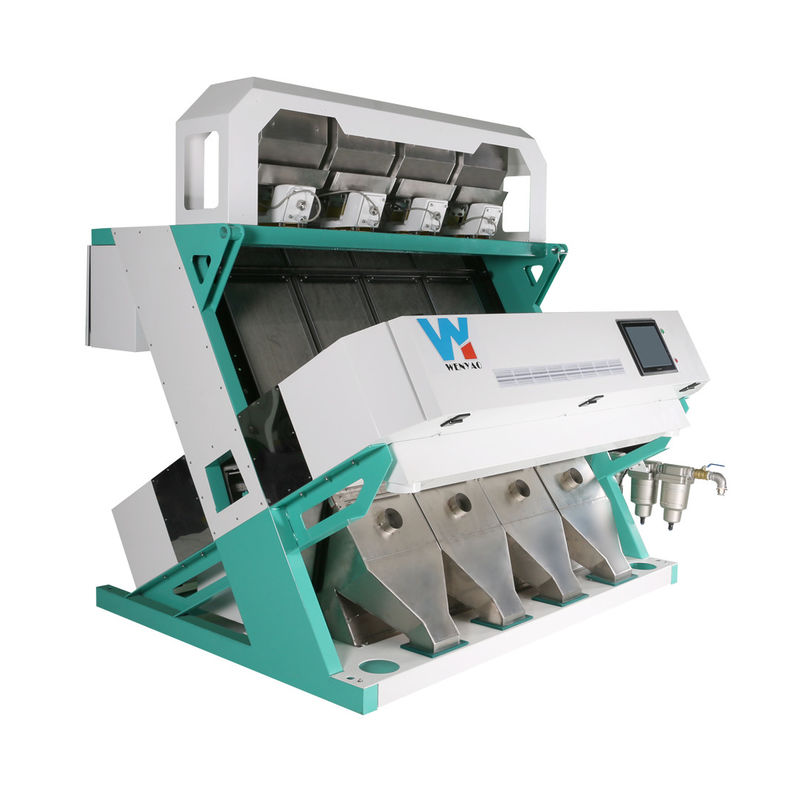

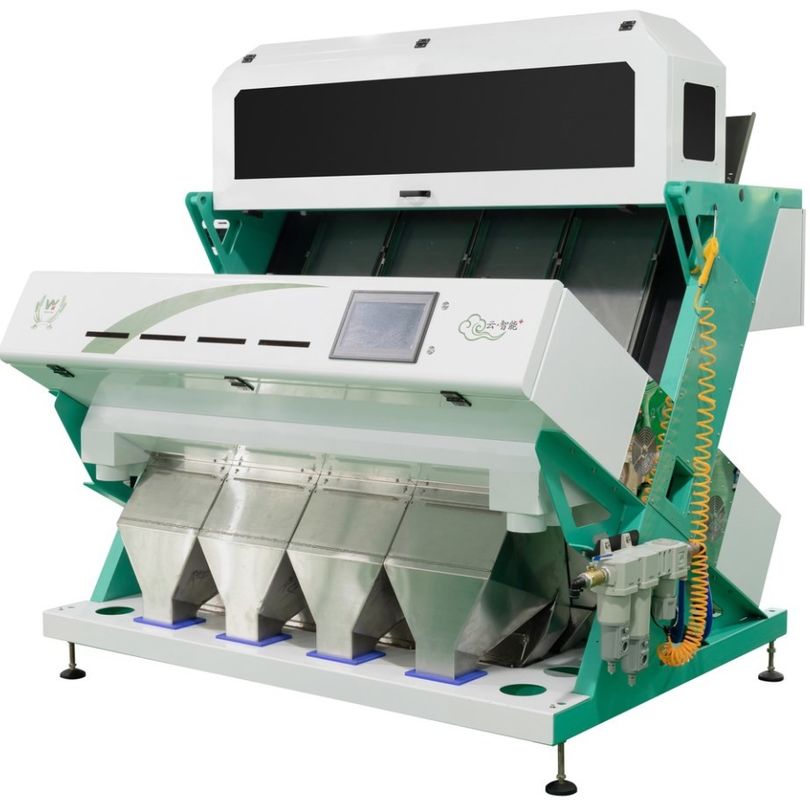

Plastic Flake Sorting Machine Agriculture Machinery Plastic Color Sorter
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
| MODEL | WYCS4-256 |
| Chutes/Channels | 4/256 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.3kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.4M3/Min |
| Weight | 750kg |
| Diamension(L*W*H) | 1855*1540*1852mm |
Product Introduction:
Multi-purpose sorter using newest structure design, it adopts both the HSV system which according to the principle of the human eyes feeling and the RGB tri-chromatic system working at the same time, it brings us more good capability of identify than human eyes, and also brings high precision sorting ability. It can fully solve the problem of different color granules of rice, grains,plastics and dried fruit-vegetables etc.New design of dust-off system brings more safe working environment for multi-purpose sorter.
Color sorter Definition :
Digital color sorter is a kind of high-tech product which is integrated with optics, machinery and electronics and combines embedded system with digital image technique perfectly. The product adopts high speed digitalized module and digital image processing to get high precision sorting and can detect yellowish and speckle rice effectively. Intelligent Modular Structure is created with creative channel encode and decode technique to improve the stability and reliability of the product greatly. Its powerful way of setting parameter which is achieved with Artificial Intelligence make it very easy for the user to operate system. Innovative techniques used in the product represent the future direction of color sorter.
Color sorter Principle as shown:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
Advantage:
Our engineer: Free direct the installation and operation of the equipments and train operators for customer.
Our machine: Safe and reliable, efficient and energy saving, easy operating.
Our delivery: In time with English operating instruction program.
Our after-sale service: Timely, professionally
FAQ:
1. How will we get Quotations for Color Sorter?
Color Sorter separates materials by optoelectronic technology according to color difference.
Please indicate Input Materials name, and Production Throughput. It will be better if you could provide materials photos, and mark accepted colors and rejected colors.
2. How do we do Samples Test?
Welcome customers provide test materials or visit us, then we provide test report together with test video in time. If you could not send it, Please provide photos like these, Original Materials, Accepted Materials and Rejected Materials. Then we use stored materials for test, and advise you with test data.
3. What is your After-sale service?
We provides detailed technical assistance on how to install, After the machinery is installed, our service engineer comes to customer workshop, debugging well on-cite, and training customers staff free-charge.
4. Hong long is Warranty time?
We provide Two years warranty of whole machine.
5. Could you supply Accessories of Color Sorter?
Yes, also supply these spare devices like Air compressor, Air tank, Platform, Air filter, Elevator, UPS, Regulated Power supply. Quotation will be separate.
6. How many models do you have?
We supply Various Models to meet the needs of different production, from household to large scale production, We also accepts orders of customized models.
7. We are interested in your machine, How we have a meeting face by face?
our staff visit oversea clients regularly, Please make an appointment in advance with us. In additional, if you visit our office and workshop, please take your materials sample together and let us test it in our workshop.
Q:How about your after-sales policy?
A:Timely, efficient, customer first
(1)One-year warranty (life-time service)
(2)Online support and professional video guidance
Packing And Delivery :
