Coffee Beans Color Sorter Machine For Sorting Bad Coffee Bean In Roasting Procedure

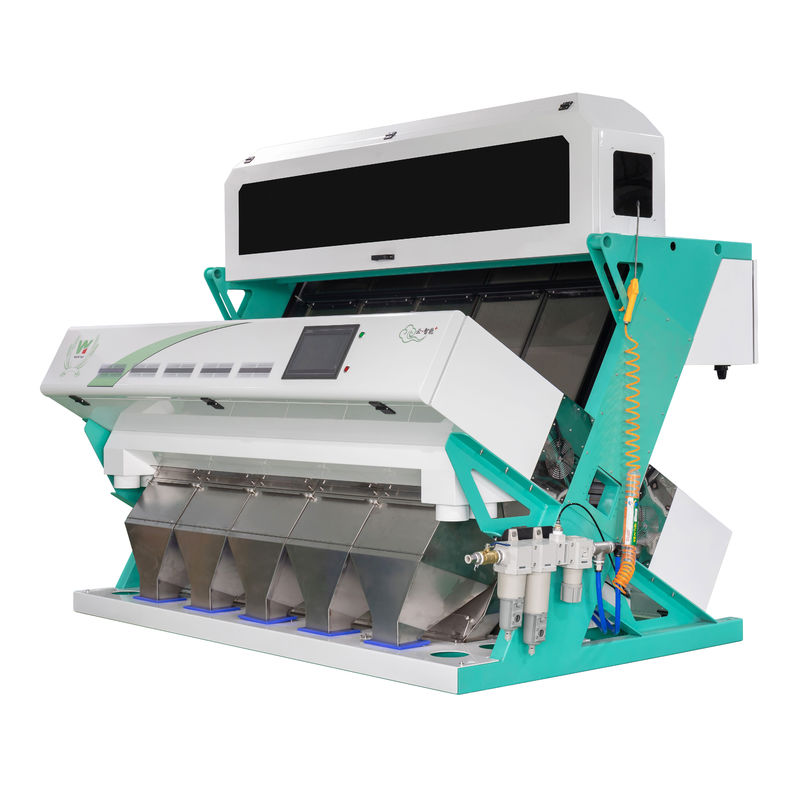

Coffee Beans Color Sorter Machine For Sorting Bad Coffee Bean In Roasting Procedure

Roasted Coffee Bean Color Sorter Machine

320 Channels Coffee Bean Color Sorter

Place of Origin:

Hefei city China Mainland

Brand Name:

WENYAO

Certification:

CE and ISO9001

Model Number:

WYCS5-320

Contact Us

Request A Quote
Product Details
Condition:
Newest Technology
Application:
Coffee Bean Processing Line
MOQ:
>=1.0
Sorting Accuracy(%):
≥99.99%
Function:
Color Sorting And Size Separating
Machine Dimensions(L*W*H) Mm:
1855X1540X1852mm
Warranty:
Two Years (24 Months)
Hopper Material:
304 Stainless Steel
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package Packing size(L*W*H):2550X1720X2050mm
Delivery Time
7-15 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
202PCS Per Month
Product Description

Roasted Coffee Beans Color Sorter Machine For Sorting Bad Coffee Bean In Roasting Procedure



1.Beans Color Sorter Machine For Sorting Bad Coffee Bean Working Flow

When coffee beans color sorter is working, Material hopper under the action of vibrator is uniform distribution in each chute. The CCD signal while the coffee beans are dropping in testing.

If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.

Coffee Beans Color Sorter Machine For Sorting Bad Coffee Bean In Roasting Procedure 0

2.Technical Parameters:

Coffee Beans Color Sorter Machine For Sorting Bad Coffee Bean In Roasting Procedure 1

MODEL WYCS5-320
Chutes/Channels 5/320
Throughput(t/h) 3000kg/h-4000kg/h
Sorting Aaccuracy ≥99.98%
Power 2.90kw
Power Voltage 180-240V/50-60Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <2.8M3/Min
Weight 910kg
Diamension(L*W*H) 2244X1540X1852mm



3.Machine Features:

CCD Camera
Japanese TOSHIBA 5340 line
ar CCD, core guarantee of high precision and quick sorting , the smallest to 0.04mm could be locked.

LED system
World leading stable long lifetime LED light, customized LED solution accepted according to specific material.

Control Unit
Advanced Image Processing System, synchronized for multiple operations and sorting mode. Adjust sorting operation to guarantee the sorting accuracy based on complex colors and shapes.

Chute System
Advanced chute design with hundreds of experiments, ensuring smooth flowing, uniform falling speed and less material consumption, optimized machine structure for disassembly and maintenance.

Ejector Valve
Italian new type of high frequency electromagnetic valve allows for accurate control of air flow power and direction with long lifetime.

Interface with Auto Testing
Self-developed auto diagnosis function with touching screen, automatically operate the testing of injector, pressure, camera, control board, background LED light and others when starting up.

Other Components
World class parts supplier, such as filter of Korea YSC and Japanese CKD. Premium quality with those famous global brands.



4.Examples after color sorting by color sorter machine



Coffee Beans Color Sorter Machine For Sorting Bad Coffee Bean In Roasting Procedure 2

Coffee Beans Color Sorter Machine For Sorting Bad Coffee Bean In Roasting Procedure 3

Coffee Beans Color Sorter Machine For Sorting Bad Coffee Bean In Roasting Procedure 4

5.FAQ:
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.

2. How long about the guarantee period?
One year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.

4. Is oversea service available?
Yes, our engineers could go abroad when required.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send engineer to guide for installation, then customer should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation, local transportation and security when the Engineer arrived.
