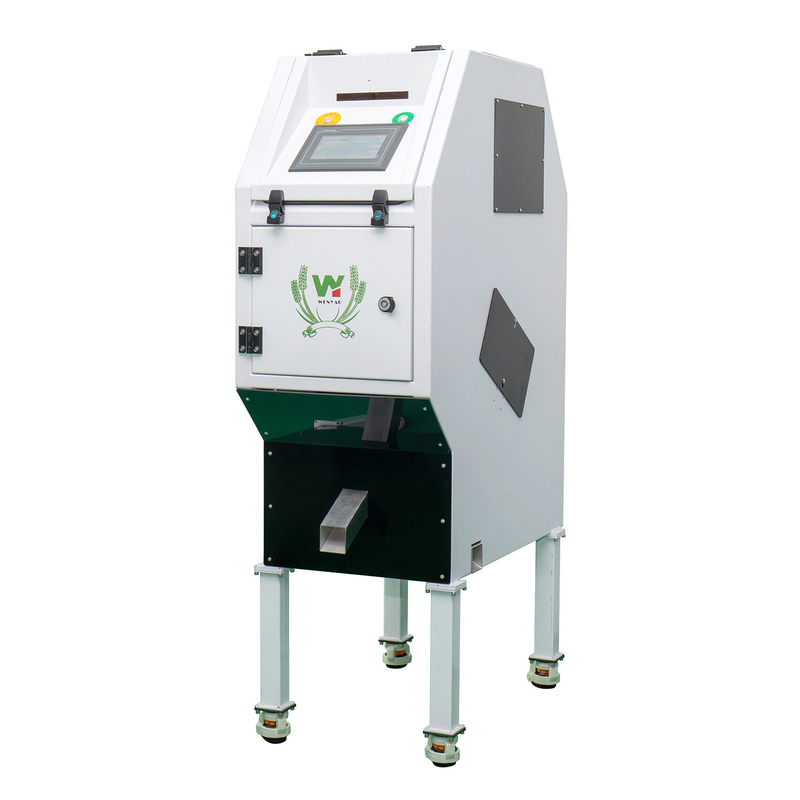

High Quality Mini Beans Color Sorter Sorting Grading Machine For Soybean Black / Red Bean
Color Sorters are machines used on the production lines in bulk food processing and other industries.They sort materials by their colors or shapes.If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.
In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening thevalves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of(0.4 … 0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.
Technical Parameters:
| MODEL | WYCS1-32 |
| Chutes/Channels | 1/32 |
| Throughput(t/h) | 500-800kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.3M3/Min |
| Weight | 180kg |
| Diamension(L*W*H) | 460*895*1356mm |
Features:
1. Adopting 5400 pixels high-accuracy linear CCD camera, professional images acquisition and processing system can process images' parameters at high speed.
2. Bus structure ensures high consistency of signal, strong anti-interference capability, better stability and more simplified structure.
3. Minimum discolor area of 0.08 mm2 can be accurately identified, and the checking area is adjustable according to sorting requirement.
4. Both flat type and channels type U-shaped chutes are available, hence the color sorter can sort many other grains and granules.
5. Embeded operation system, user-friendly interface, convenient operation.
6.Focue on systematic and original design.
7.Multi-dimensional intelligent color sorting,make color sorting more frofessional and intelligent.
Product Application:

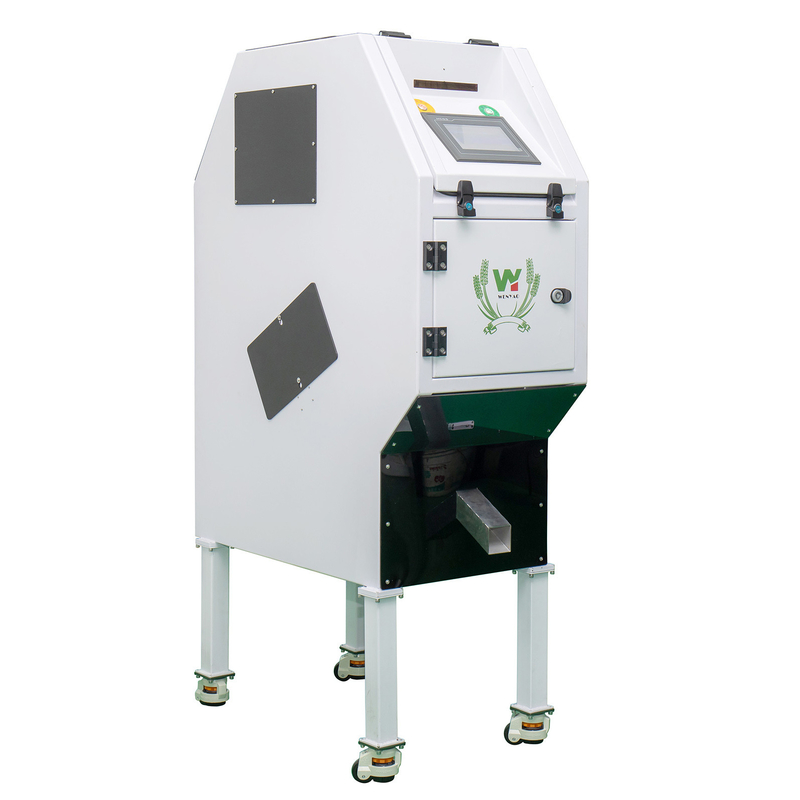

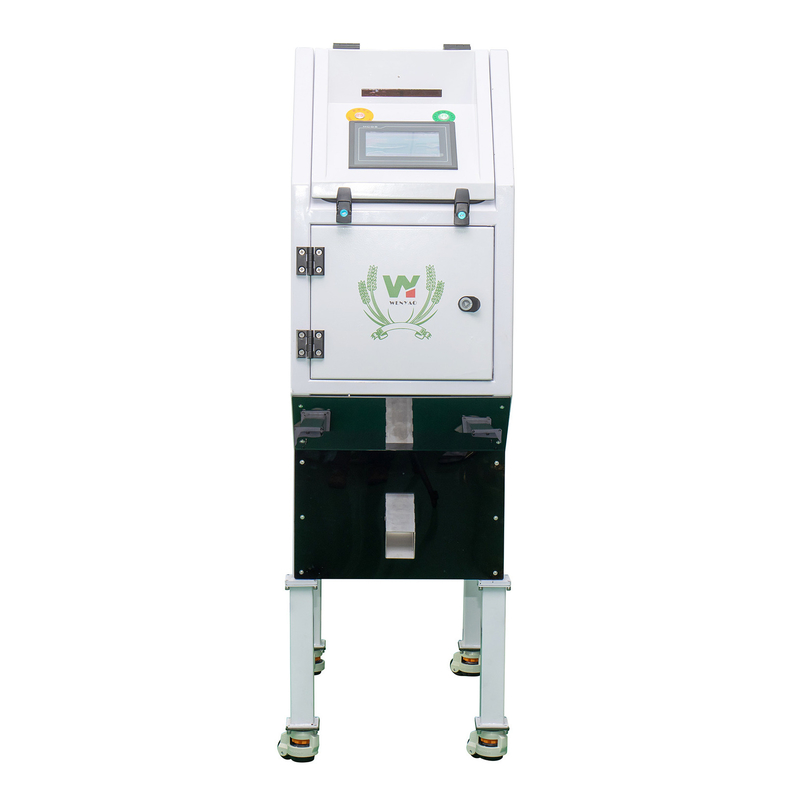

Detailed images:
CCD Mini Beans Color Sorter Have Following Advanced Features:
Packing delivery:
Effects of bean color sorting by wenyao color sorter:
Our custom's site:
FAQ:
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard). we send our video to you.
4.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
5.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
