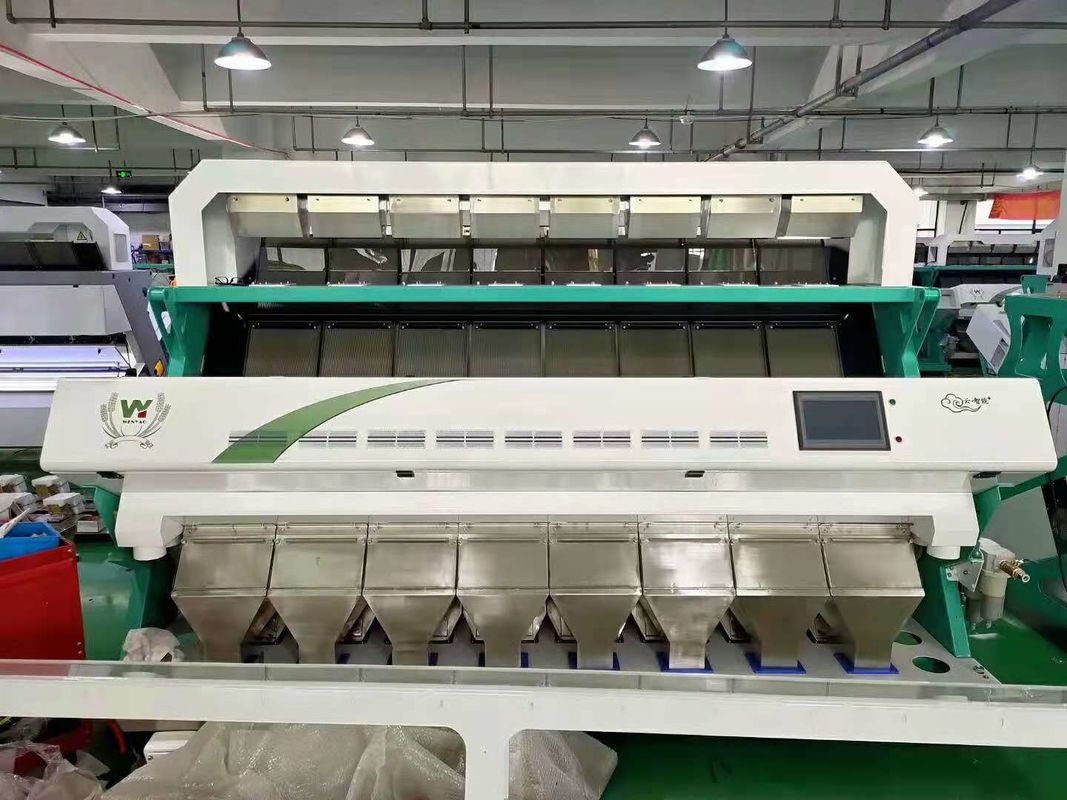

High Capacity CCD 512 Rice Color Sorter Color Sorting Machine Color Selector For Rice
Rice color sorter description:
When wenyao color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
| MODEL | WYCS8-512 |
| Chutes/Channels | 8/512 |
| Throughput(t/h) | 5-8t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <4M3/Min |
| Weight | 1500kg |
| Diamension(L*W*H) | 3025*1540*1852mm |
Throughtput:Different impurity with different throughput.
Our advantage:
1. More than 13 years experiences.Our company established in 2007.
2. Exported to more than 100 countries. We have exported since 2010.
3.High speed delivery time for all customers.Normally 7-10 days.
4. National high-technology enterprises.
5. Perfect after sale service. We service for all life of color sorter.
6.Easy to operate.All sorting solution are saved before delivery.
Features:
►5400Pixel CCD image acquisition system with high speed chip.
►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
►Variable light background easy to operate.
Examples of color sorting:
