Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS8-512
Contact Us

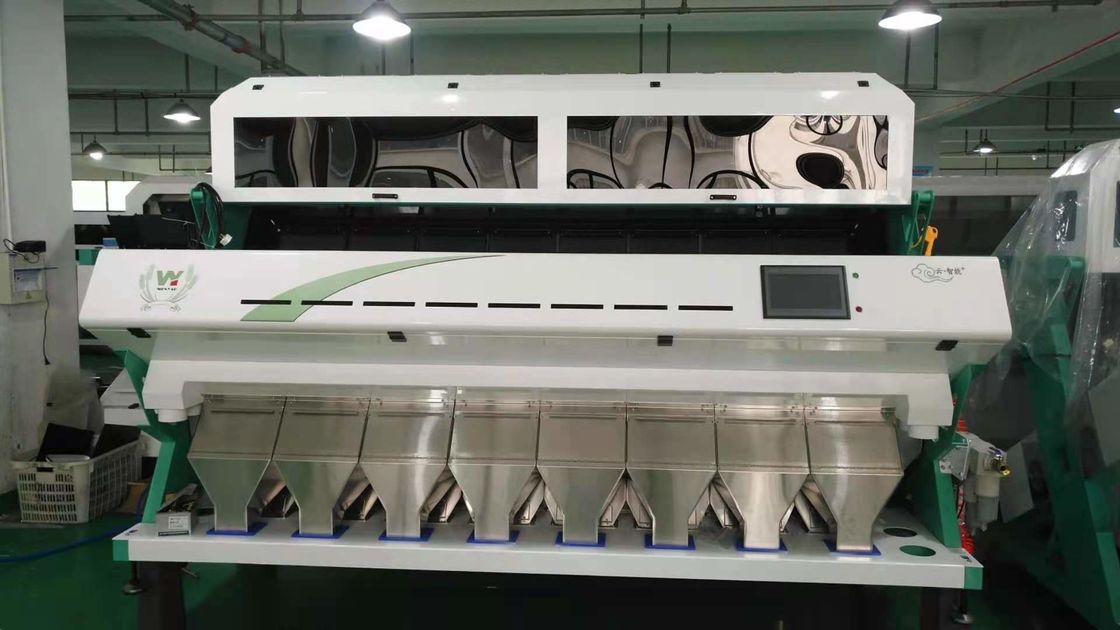

Wenyao High Quality Rice Color Sorting Machine From Color Sorter Factory In Hefei China
Rice color sorter description:
When wenyao color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
| MODEL | WYCS8-512 |
| Chutes/Channels | 8/512 |
| Throughput(t/h) | 5-8t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <4M3/Min |
| Weight | 1500kg |
| Diamension(L*W*H) | 3025*1540*1852mm |
Throughtput:Different impurity with different throughput.
Advantage:
►5400Pixel Toshiba CCD camera.
►WIFI remote control system,We can service in China.
►Cooling system to make the LED lamp more long life.
►Set time for dust cleaning system automatically.
►High speed ejectors with accuracte blowing.
►One key intelligent sorting.
►Set background color automatically.
More models parameters as following:
Examples of color sorting:
