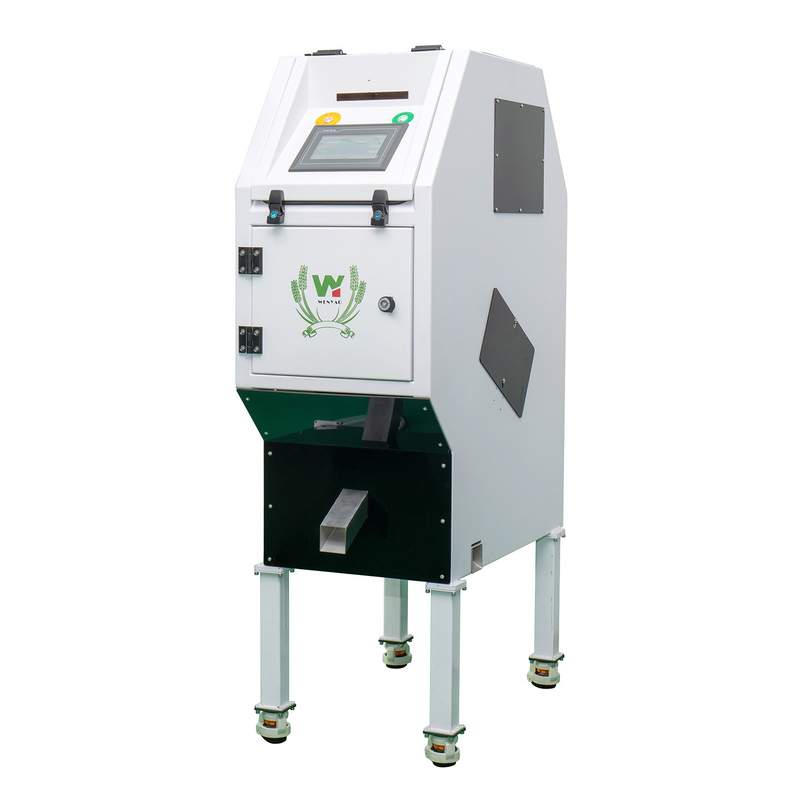

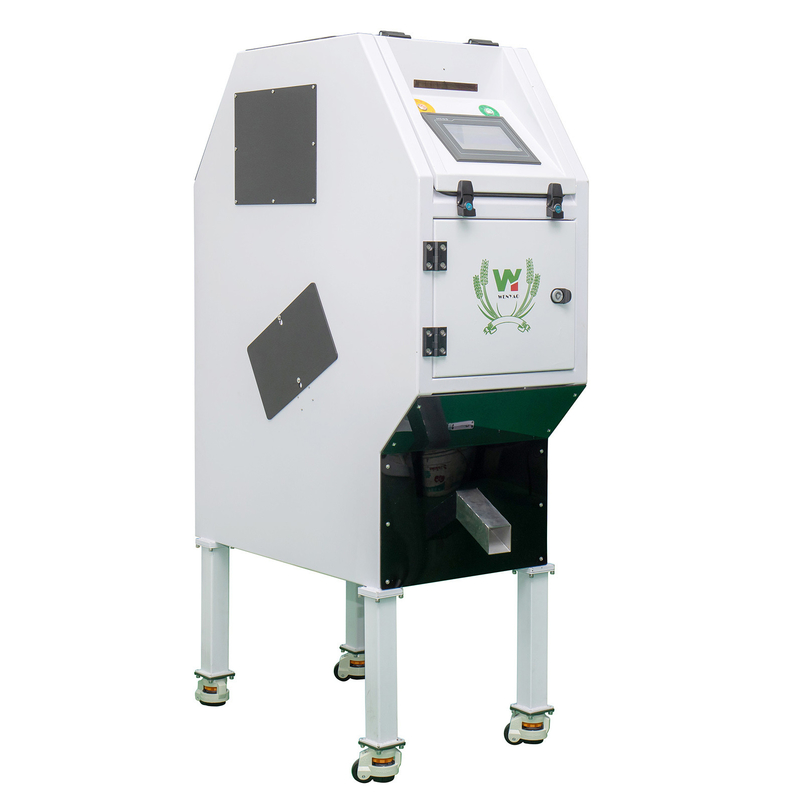

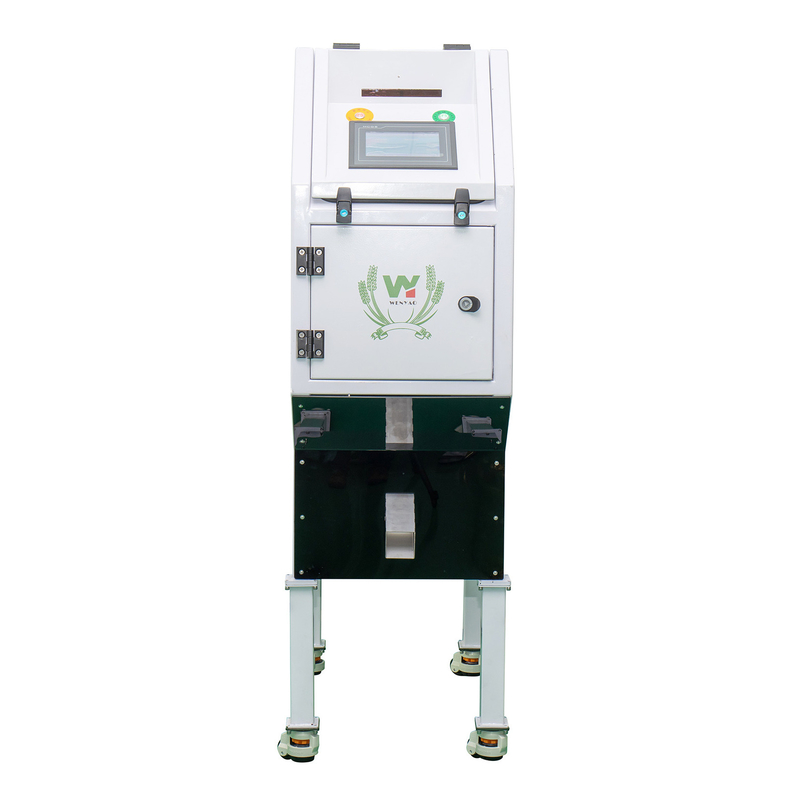

Wenyao Small Plastic Color Sorting Machine Plasitc Flakes Color Sorter With Efficient Ejector
plastic color sorter small but powerful sorting color and size.It s an equipment that automatically sort out different color particles in granular materials by photoelectric technology according to the difference of materials colors.Suitable for sorting and grading for all kinds of rice.The machine, recognize the slightest mildew,based on the difference of optical characteristics of the materials,sort,grade and remove impurities automatically through photoelectric technology, improves the quality of the materials.This multifunctional sorter can be used for rice, grain, corn, plastics, beans, peanut, ores, millets, seeds, medicinal herbs, wheat, nuts, coffee cherry, pepper, sea foods and so on other 26000 kind products.
WENYAO Color Sorter Working Principle :
Input product is loaded into the in-feed hopper , it moves along the vibrating plate , until it flows on to a sloping chute, where it is individually checked at 360° and sorted by RGB Full color cameras .
Depending on the signals received by the optical device, the sorter's software controls the pneumatic device, which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper.
Technical Parameters:
| MODEL | WYCS1-32 |
| Chutes/Channels | 1/32 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.3M3/Min |
| Weight | 180kg |
| Diamension(L*W*H) | 460*895*1356mm |
Features:
1. Adopting 5400 pixels high-accuracy linear CCD camera, professional images acquisition and processing system can process images' parameters at high speed.
2. Bus structure ensures high consistency of signal, strong anti-interference capability, better stability and more simplified structure.
3. Minimum discolor area of 0.08 mm2 can be accurately identified, and the checking area is adjustable according to sorting requirement.
4. ShadowlessLED lights can precisely focus the ray on the inspection line. The LED white light can identify any light color differences.
Automatic cleaning system with customized time, duration and delay to keep the machine working without time waste.
5. Humanized operation system is easy to operate. One-key intelligent automatic identify and adjust, meet the requirements of different batches and different impurity rate of the raw material.
FAQ:
1.Q:How long about the guarantee period?
Two years. And we will supply lifelong software upgrade services for our customers.
2.Q:Will you accept L/C as payment?
L/C ,T/T is OK.
3.Q:How about engineers service oversea?
Our engineers could go abroad services when necessary.
4.How about the sample machines for testing?
Sample sending for testing is welcomed. Or you send these three photos, the raw material, good material (which is you want), bad material (which is you want to discard). We send our video to you.
5.Q:How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
6.Can you supply the accessories parts of color sorter?
Yes,we can supply some spare parts when you need.
Our service:
Before Sale:We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After Sale Service:We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.24/7online after-sale support .Free solfware upgrade service for life time.
Sorting effects of plastic:
Other Application Fields:
Custom's site:
