Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS8-512
Contact Us

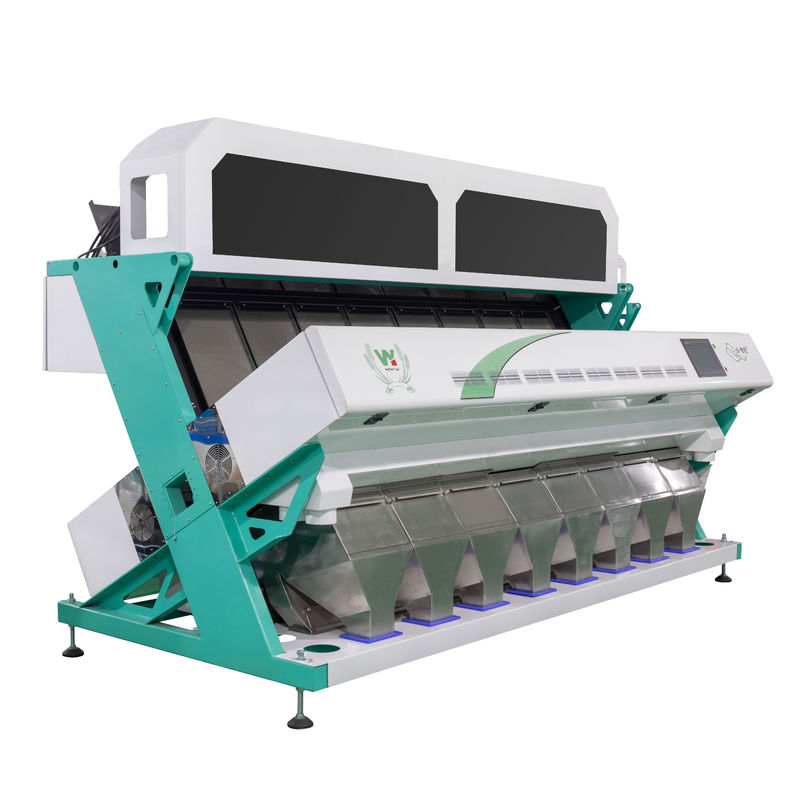

China Wenyao 8 Channels Ccd Color Sorter Machine For Rice Sorting
Rice color sorter working principle:
When wenyao color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
| MODEL | WYCS8-512 |
| Chutes/Channels | 8/512 |
| Throughput(t/h) | 5-8t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <4M3/Min |
| Weight | 1500kg |
| Diamension(L*W*H) | 3025*1540*1852mm |
Throughtput:Different impurity with different throughput.
Advantage:
►5400Pixel 10500 t/s scan speed Toshiba CCD camera.
►WIFI remote control service for all over the world.
►Changeable background light color.
►Set time for dust cleaning brush system automatically.
►High speed 1500t/s ejectors sorting with accuracte blowing.
►One key intelligent to get the saved sorting programme.
More models parameters as following:
Examples of color sorting:
