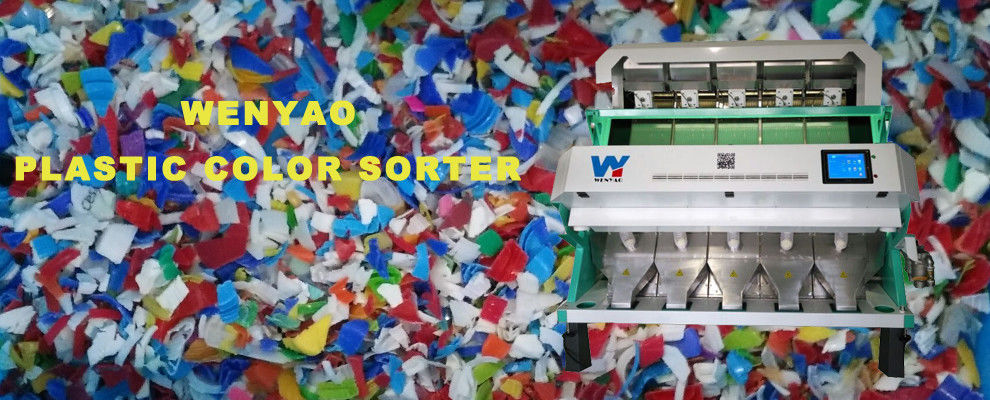

High Precision Plastic Color Sorting Machine For PET Plastic Granules Or Flakes Color Sorting
1.WENYAO Color Sorter Machine Working Principle
Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber
2.Technical Parameters:
| MODEL | WYCS5-320 |
| Chutes/Channels | 5 / 320 |
| Throughput(kg/h) | 3000kg/h-4000kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.9kw |
| Power Voltage | 240V/50Hz or Customized |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.8M3/Min |
| Weight | 900kg-910kg |
| Diamension(L*W*H) | 2244*1540*1852mm |
3.CCD Color Sorter Machine Core Parts:
>CCD Camera
Japanese TOSHIBA 5340 line
ar CCD, core guarantee of high precision and quick sorting , the smallest to 0.04mm could be locked.
>LED system
World leading stable long lifetime LED light, customized LED solution accepted according to specific material.
>Control Unit
Advanced Image Processing System, synchronized for multiple operations and sorting mode.
Adjust sorting operation to guarantee the sorting accuracy based on complex colors and shapes.
4.Examples of Color Sorting Examples
5.FAQ
Welcome. Pls feel free to send us an email here. You will get our reply within 24 hours
Yes, please advise the size and Pantone Code of the logo.
7-15 days for order quantity 1 set; For more than 3 sets, usually 20 days.
Yes, for the order quantity more than 2 sets, please contact us to get the best price.
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
6.Real Photo of WYCS5-320 in customer site
7.Our Service:
Pre-sales
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After-Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
8.Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.
