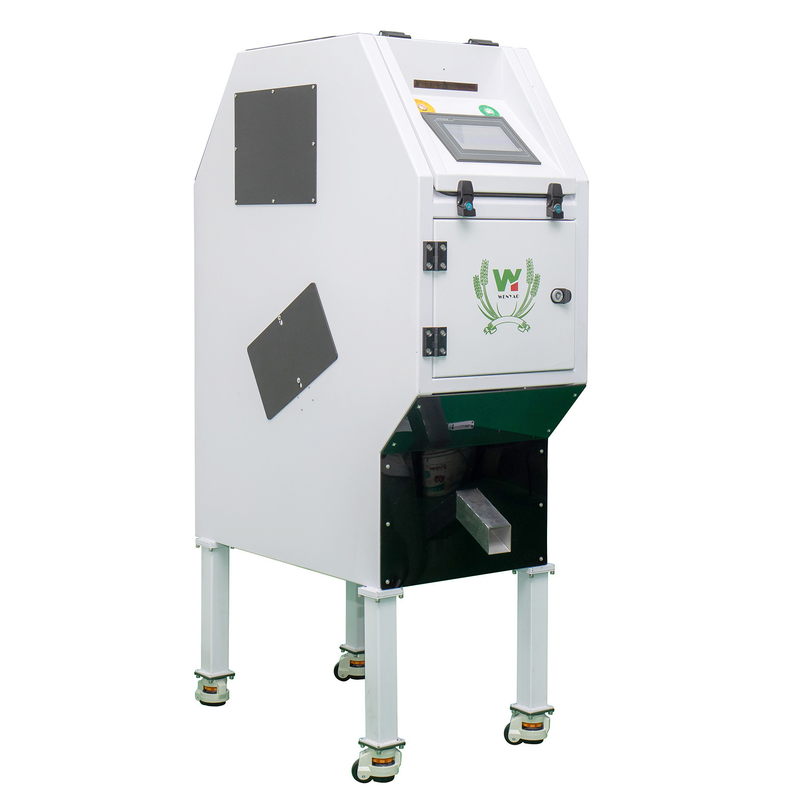

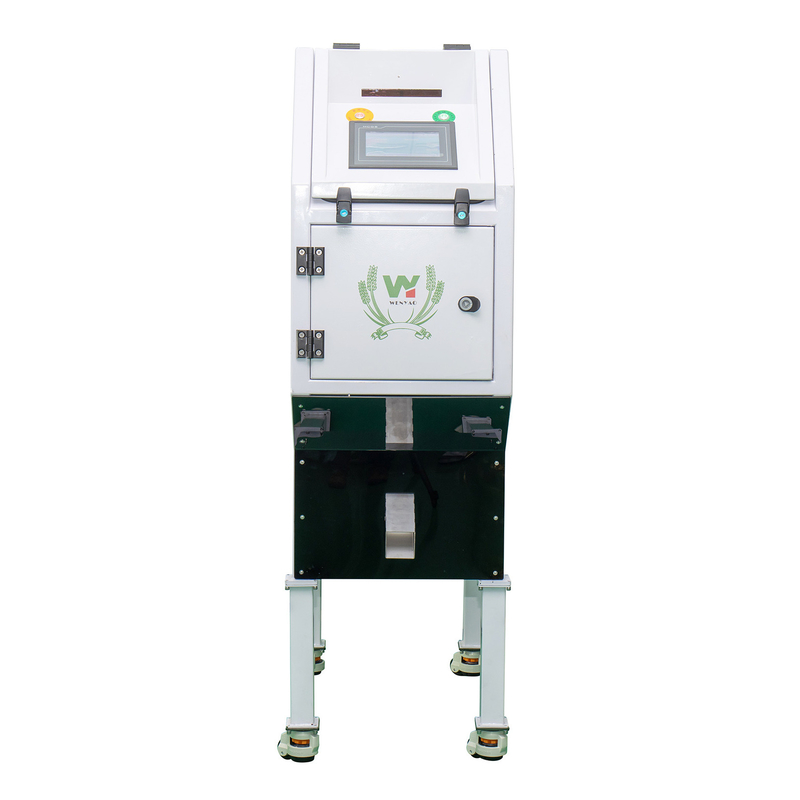

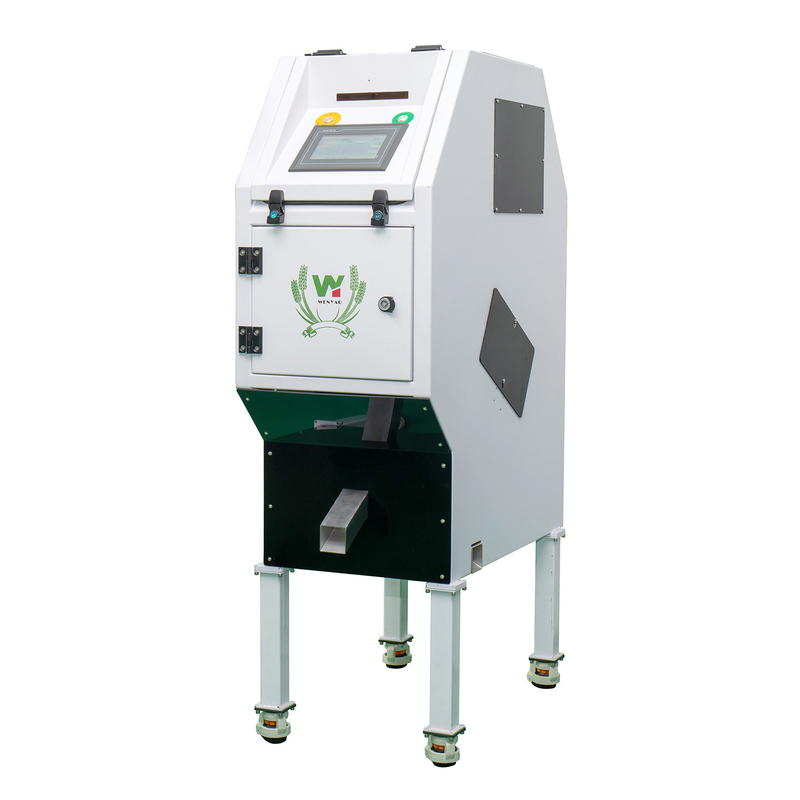

Low Consumption Mini Seed Color Sorter Pepper / Chili Rosehip Seed Color Sorting Machine For Sale
What is color sorter and how does it work?
Color Sorters are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.
The rice sorting technology is according to the color differences of rice (husked paddy) materials, using a high-resolution CCD optical sensor to separate different stones, black rice, etc. It is the final step after polishing rice with a rice polisher. Sorting machines improve product quality and add social benefits.When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Wenyao color sorter working principle:
Technical Parameters:
| MODEL | WYCS1-32 |
| Chutes/Channels | 1/32 |
| Throughput(t/h) | 100-200kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.3M3/Min |
| Weight | 180kg |
| Diamension(L*W*H) | 460*895*1356mm |
Main Features:
►5400Pixel CCD image acquisition system with high speed chip.
►High speed air valve is used to ensure quick penponse,low power consumption and long service life.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►High speed air valve is used to ensure quick penponse,low power consumption and long service life.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
Effects of flax seed seed color sorting:
Other Product application:
Our service:
Before sale service:
* Inquiry and consulting support.
* On-the-spot investigation.
* View customers' factory.
After sale service:
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Sincerity and responsibility are always the first
