Intelligent Agriculture Black Tea Sorting Machine CE Certification

Intelligent Agriculture Machine Black Tea Color Sorter From Hefei China Oolong Tea Color Sorter

Technical Parameters:

Technical Parameters of Color Sorter Machine

Chinese High Tech Enterprise

Obtain 135 Patent certificates per year

Process control According to ISO9001

CE Certification for EU Exporting

Food Safety

Customer Service:

Color Sorters are machines used on the production lines in bulk food processing and other industries. They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.
In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4 … 0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.

Color sorter :

Artificial Intelligent

Red, green, blue+ shape 4D data integrating technology, intelligent study, intelligent recognition, intelligent classification, intelligent positioning

SOC

With outstanding high performance and low power consumption, highest bandwidth and integration density in the industry, the processing ability is improved for 5 times

 HD Lens

With high-end customized HD lens, the resolution is improved over 30%.

True color background

With flexible color mixing technology, 16 million kinds of colors can be realized which can adapt to separation of various materials.

Remote Control

Ultra High Definition Camera

With remote control, remote inquiry, online upgrading by advanced large-data cloud technology, users have no worries about rear.Be able to provide HD image as high as 190 million pixels per second; 0.06mm ultra-high resolution in maximum.

Communication System

With stable automobile level high speed communication system, the rate is improved for 4 times.

Panoramic Imagery

Multiple cameras and various visual angles make defect and foreign bodies have no place to shelter.

Precise Solenoid Valve

Quick: response in 0.1ms
Accurate: pick out accurately
Small: low air consumption
Low: low power consumption

Illumination system

Even illumination: accurate dimming, power and energy saving, long service life, free of maintenance

Application of Color Sorter Machine :

The automatic color sorting machine can directly replace the manual sorting work to achieve the purpose of improving production efficiency, improving accuracy and reducing labor, and reducing enterprise operating costs and labor costs. The automatic sorting machine can select product combinations with different weights, sizes, colors and other characteristics to select the working line, eliminating the financial and time of manual operation, and more accurate and precise. Widely used in food sorting, fruit sorting, food sorting, ore sorting, garbage sorting and other industrial product sorting industries.

Advantage:

A: Free direct the installation and operation of the equipments and train operators for customer.
B: Safe and reliable, efficient and energy saving, easy operating.
C: In time with English operating instruction program.

D: Timely, professionally

Sorting Effect:

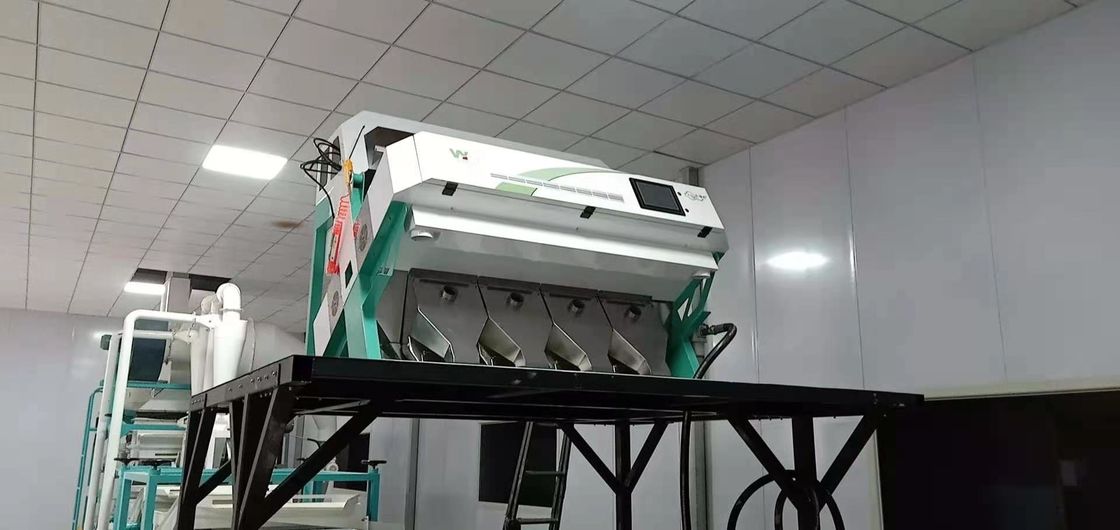

Customer's Site :

Quality Management System Certificate
