Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYB1
Contact Us
Video
Video
Video
Video

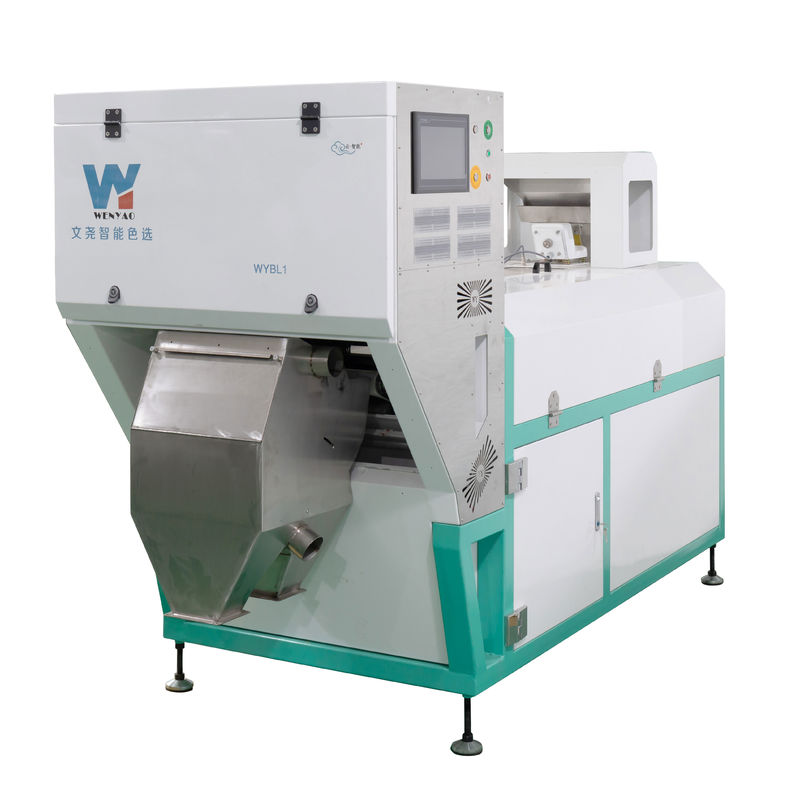

Intelligent CCD Peanut Cashew Nuts Walnut Color Sorter Belt Type Color Sorter
Nuts color sorter working principle:
When color sorter is running , the materials in the hopper is uniformly distributed into each chute because of the action of vibrator.while the materials dropping ,CCD sensor is starting.If the cameras catach the unqualified materials or impurities,PLC will order the ejector to blow the bad goods into the hopper.
Technical Parameters:
| MODEL | WYB1 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 0.5-1t/h |
| Sorting Aaccuracy | ≥99.9% |
| Power | 1.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min |
| Weight | 450kg |
| Diamension(L*W*H) | 2450*1010*1539mm |
Throughtput:Different impurity with different throughput.
Features:
►5400Pixel CCD image acquisition system.
►WIFI remote control system.
►Low temperature LED light source system.
►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
►Variable light background easy to operate.
Examples of nuts color sorting:
1. who are we?
We are the latest color sorter R&D and sales base in hefei city China.We are professional color sorter manufacturer.
2. what can we do for you?
We will provide solutions to improve the quality of your materials. In order to increase the unit price and sales of your materials
3. What is color sorter?
Color Sorters used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.
4. What materials can be sorted
Rice, cereal, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. If you want to sort other materials, please contact our customer service.
