Nut Color Sorter Machine Grain Color Sorter Electric Peanut Color Sorter Machine
Technical Parameters:
| MODEL |
WYCS4-256 |
| Chutes/Channels |
4/256 |
| Throughput(t/h) |
2-3t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
2.3kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<2.4M3/Min |
| Weight |
750kg |
| Diamension(L*W*H) |
1855*1540*1852mm
|
| Main Parts |
Parameters/ brand |
Parts Advantage |
| Channels |
64*4=256 |
1.High quality aluminum alloy 2.Anodic oxidation 3.Surface polishing treatment 4.Material Slipping steadily 5.wear-resisting,wearproof 6.The service life is long. |
| Pixel of camera |
5400 |
1.High accuracy 5400 pixels 2.High perfomance with high resolution.warranty:2 years |
| CCD sensor |
Toshiba |
High Sensitivity and resolution warranty:2 years |
| light source |
LED Lamps |
1.Luminous evenly 2.The service life is long 3.The light is not weak for long time |
| Ejector |
Metal |
1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months. |
| Filter |
YSC/CKD |
1.High filtration accuracy 2.High filtering speed 3.durable and long time service. |
| Screen |
touch screen |
1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:2 years |
| Hopper |
304 stainless steel |
1.rust protection 2.wear-resisting,wearproof |
| Package |
Plywood Case |
1.Stable structure no deformation 2.Easy to transport |
The Application of Color Sorter Machine :
The automatic color sorting machine can directly replace the manual sorting work to achieve the purpose of improving production efficiency, improving accuracy and reducing labor, and reducing enterprise operating costs and labor costs. The automatic sorting machine can select product combinations with different weights, sizes, colors and other characteristics to select the working line, eliminating the financial and time of manual operation, and more accurate and precise. Widely used in food sorting, fruit sorting, food sorting, ore sorting, garbage sorting and other industrial product sorting industries.
Color Sorting materials
1. Rice: white rice, parbouled rice, yellow rice, brown rice, barley rice
2. Beans: soybeans, mung beans, red beans, coffee beans
3. Nuts: peanuts, cashew nut, walnut meat,pine nuts
4. vegetables: dry onion,daylily,back fungus
5. Seeds: vegetable seeds, cumin seeds,prickly ash seeds
6. Industrial:plastic, broken glass,quaze,ore,scrap metal
Features :
Customized Lighting System
import purchasing
Advanced LED optical design system.
Various light sources are available to suit different materials.
Designated procurement of imported LED lamps,Higher stability, longer service life.
LED lighting system with thermal dissipation.
Data Transmission System
high-speed and stable
The COAX interface:
High anti-jamming, high transmission speed, high stability
Chip
innovative ultra high-speed processing
Based on SOC platform architecture;
Compared to DSP platform, the CPU improves 5 times, output processing improves 4 times, realizing the stability ,reliability and high-speed mass data processing.
Crawler Transmission:transmission structure
The crawler-type transmission structure shows good performance in color sorting, and the stable material transmission can effectively improve the ratio of color separation mass and the net selection rate, meanwhile reducing the crushing rate of material in the course of color sorting.
Sorting Effect:
1. The color sorter uses 5000+ pixels high performances CCD sensors with resolution up 0.1mm.
2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting.
3. The high speed FPGA technology signal processor with fast detection and high identification rate.
4. Master control system adopts ARM9 embedded processor, and effectively enhances and control
speed and color selection precision.
5.Overall unit adopts intelligent closed-loop control.
6.The operation interface adopts industrial grade 10 inch capacitive touch screen and features simple parameters
setting and esay operation.
7.High speed air value is used to ensure quick response, low power consumption and long service life.
8.Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
9. Failure alarm automation and modular construction makes easy repair.

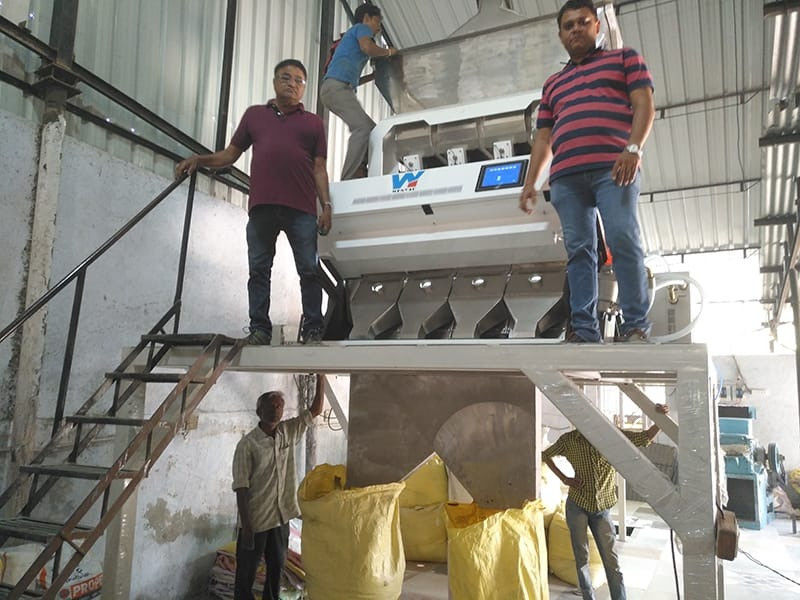

Customer's Site :
