Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS6-384
Contact Us

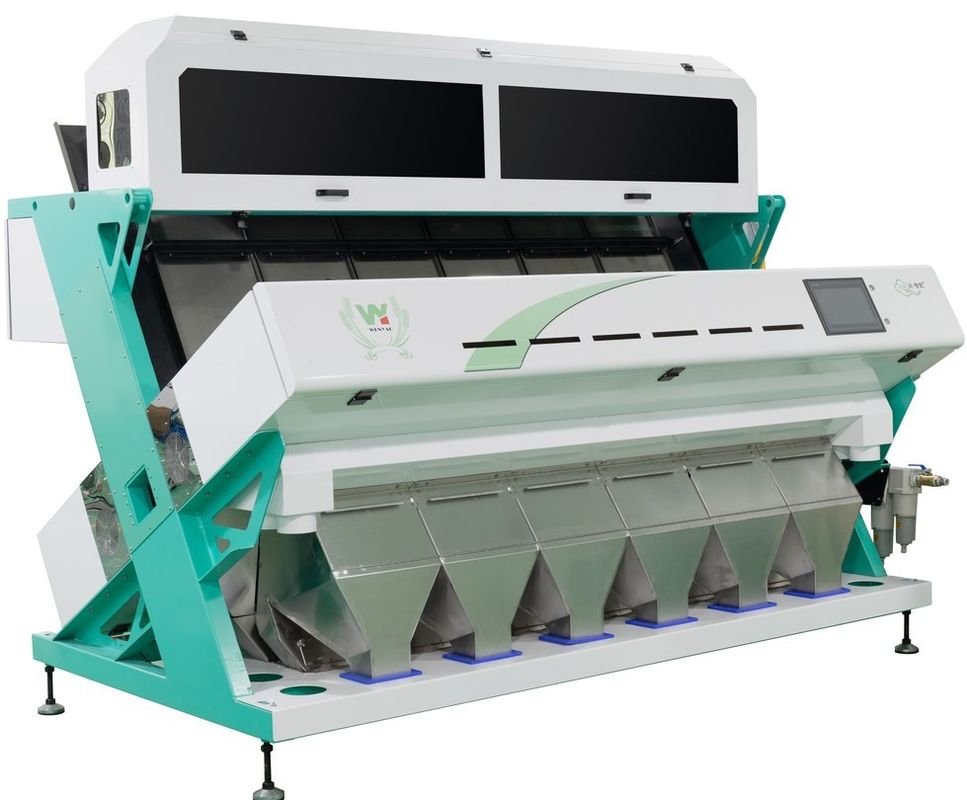

Automatic Macadamia Nut Mini Color Sorter Nuts Color Sorter Machine Color Sorting Machine
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Product Features:
Latest full-color imaging and analysis technology,high-speed processing,accurate identification.
Multi-function,multi-purpose,widely used for rice,cereal, plastics,chinese medicine.
High level AI self-learning function,One-key automation,user friendly interface,easy operation.
Color sorting combined with shape sorting and size sorting, to sort difficult impurities like micro color difference, tiny bad spot etc.
High and specification ensures high stability,with high sorting accuracy, small carry over and low energy consumption.
Small and portable, saving space and delivery cost, small machine but super function.
Imported ejectors, much smaller air consumption, and much better carry over, esp. good for small materials like quinoa, chia, sesame…
Option: Remote control by smart terminals like cellphone, can realize the off-site controls of the accuracy, production capacity.
Simple Effective-Installation&Start-up&Commissioning services: remote teaching and guidance via live video online through internet to worldwide.
Technical Parameters:
| MODEL | WYCS6-384 |
| Chutes/Channels | 6/384 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 3.1kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <3.2M3/Min |
| Weight | 1100kg |
| Diamension(L*W*H) | 2595*1540*1852mm |
| Main Parts | Parameters/ brand | Parts Advantage and warranty |
| Channels | 64*6=384 | 1.High quality aluminum alloy 2.Anodic oxidation 3.Surface polishing treatment 4.Material Slipping steadily 5.wear-resisting,wearproof 6.The service life is long. |
| Pixel of camera | 5400 | 1.High accuracy 5400 pixels 2.High perfomance with high resolution.warranty:2 years |
| CCD sensor | Toshiba | High Sensitivity and resolution warranty:2 years |
| Light source | LED Lamps | 1.Luminous evenly 2.The service life is long 3.The light is not weak for long time |
| Ejector | Metal | 1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months. |
| Filter | YSC/CKD | 1.High filtration accuracy 2.High filtering speed 3.durable and long time service. |
| Screen | Touch screen | 1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:2 years |
| Hopper | 304 stainless steel | 1.Rust protection 2.Wear-resisting,wearproof |
| Package | Plywood case | 1.Stable structure no deformation 2.Easy to transport |
Color sorter work principle:
The working principle of CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color selection process as shown:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
Customer's Site :
Why choosing Wenyao
1,Advanced image acquisition system
color sorter machine use the high resolution monochromatic camera or RGB camera(5000+ pixels) with high quality industrial lens to achieve clear and accurate image acquisition.The camera could capture the micro defects of material instantly.
2,Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.
3,Unique chutes processing technology
The special anodizing and hardening technology can greatly improve the channel smoothness and ware resistance to guarantee high production.
4,High quality solenoid valve(ejector)
color sorters are equipped with high quality solenoid valve.The valve has longer lifespan,high frequency and low air consumption.The working frequency is 1000 times per second,which guarantees the accurate and perfect ejecting.For the different sizes and characteristics of material particle, NAGE optical sorters use the solenoid valve of different sizes.
5,High efficiency and reliable light source
Advanced LED lighting technology with advantages of super high intensity,long lifetime&perfect performance.
6,Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.
