Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS1-32
Contact Us

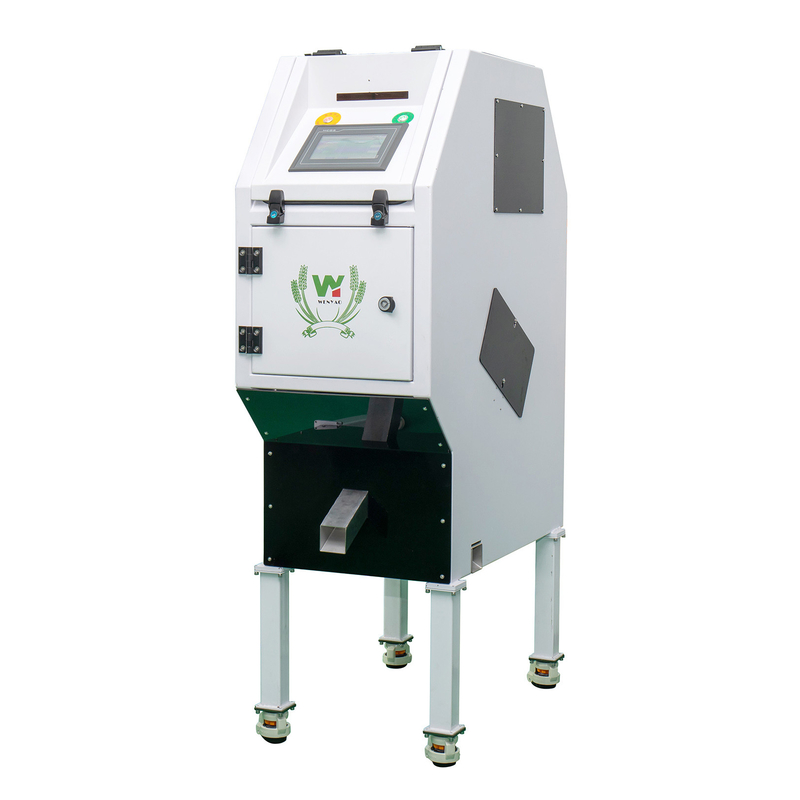

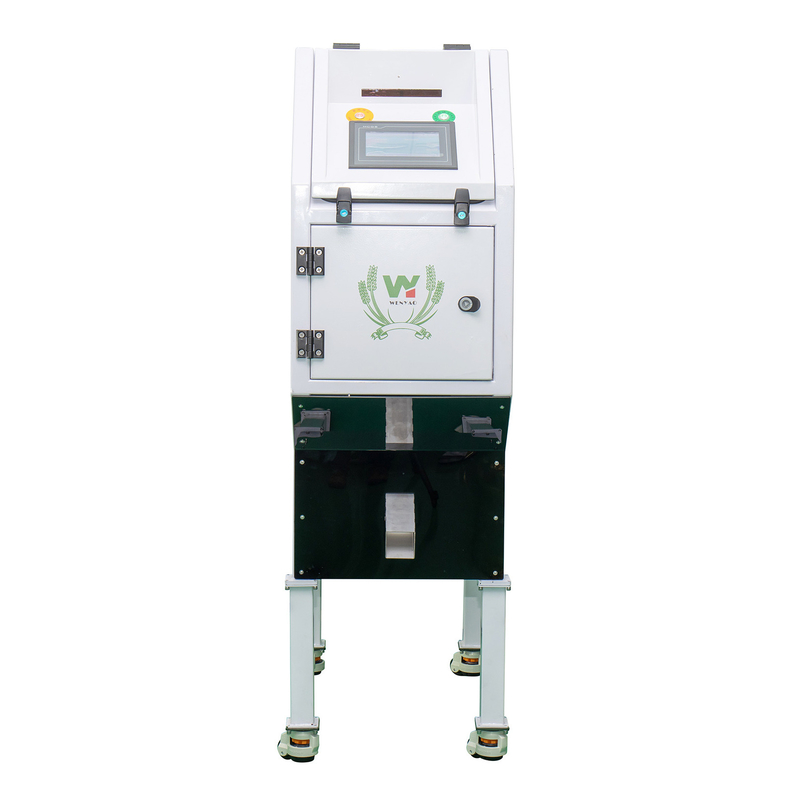

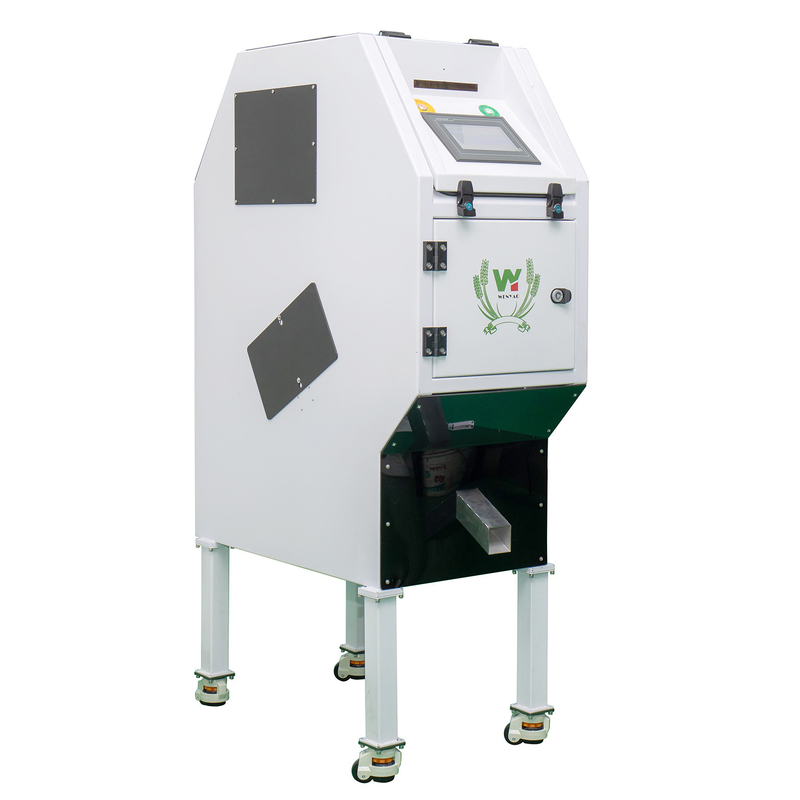

Wenyao Rose Flower Tea Color Sorter Tea Colour Sorting Machine For Flower Tea With Good Price
Product Description:
(1) Most advanced LED optical technique; imported LED light; durable and stability.
(2) Phoenix lens Brand Industrial customized 5400 Pixels Cameras.
(3) One billion times High Frequency&quality imported Ejectors.
(4) CCD chip from Japan & processor from USA, ARM chip from UK.process chip photos.
(5) Warranty period two years with free spare parts.
Color Sorter Working Principle :
Input product is loaded into the in-feed hopper , it moves along the vibrating plate , until it flows on to a sloping chute, where it is individually checked at 360° and sorted by RGB Full color cameras .
Depending on the signals received by the optical device, the sorter's software controls the pneumatic device, which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper.
Technical Parameters:
| MODEL | WYCS1-32 |
| Chutes/Channels | 1/32 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.3M3/Min |
| Weight | 180kg |
| Diamension(L*W*H) | 460*895*1356mm |
Features:
1. CCD core intelligent sensor.
2.Original intelligent image processing algorithm.
3.Brainlike thinking intelligent embeddedchip chip.
4.Fast and accurate color sorting solution.
5.High efficiency and high quality nozzil system+accurate and excellent remove rate.
FAQ:
1.Q:How long about the guarantee period?
Two years. And we will supply lifelong software upgrade services for our customers.
2.Q:Will you accept L/C as payment?
L/C ,T/T is OK.
3.Q:How about engineers service oversea?
Our engineers could go abroad services when necessary.
4.How about the sample machines for testing?
Sample sending for testing is welcomed. Or you send these three photos, the raw material, good material (which is you want), bad material (which is you want to discard). We send our video to you.
5.Q:How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
6.Can you supply the accessories parts of color sorter?
Yes,we can supply some spare parts when you need.
Our service:
Before Sale:We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After Sale Service:We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.24/7online after-sale support .Free solfware upgrade service for life time.
Sorting effects of tea:
Other Application Fields:
Custom's site:
Coutact us:
Send your inquiry directly to us
