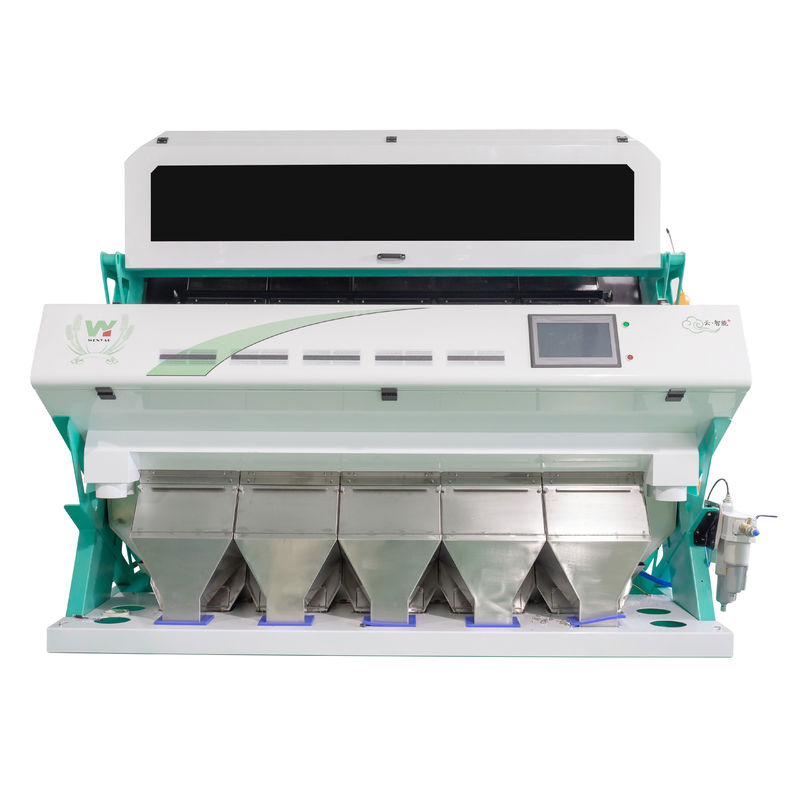

5 Chutes High Accuracy Peanut Color Sorter Machinery For Sorting Peeled Peanuts
1.WENYAO Peanut Color Sorter Machine Working Principle
Raw materials are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate. Under the effect of light source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work, ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber
2.Technical Parameters:
| MODEL |
WYCS5-320 |
| Chutes/Channels |
5 / 320 |
| Throughput(kg/h) |
3000kg/h-4000kg/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
2.9kw |
| Power Voltage |
240V/50Hz or Customized |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<2.8M3/Min |
| Weight |
900kg-910kg |
| Diamension(L*W*H) |
2244*1540*1852mm |
3.CCD Color Sorter Machine Core Parts:
-1,Sensor:CCD color sensor--Japan Toshiba 5400CCD sensor;sensor Color CCD,5400 Special color sensor
for industrial color selection (5400 x 3 line) Toshiba Japan high sensitivity :12V/(lx.s)
High dynamic range:2800:1low noise :< 0.6mv
-2,Camera:Toshiba OEM by WENYAO with 160 million pixel;Camera lens WENYAO professional custom super-resolution,
super-sensitivity and wide angle of view professional color selection lens WENYAO Customization (from Nikon) / resolution:150 line pairs,Distortion less than 0.3% ;
-3,Processor:America ALTERA company FPGA chip;Processor ALTERA provide FPGA chip ALTERA USA Arithmetic circuit: > 55856K bitsdata processing speed :> 200 MHzdata transmission speed : > 3.125 Gbps
4.Examples of Color Sorting Examples
5.FAQ
1.Q:How long about the guarantee period?
One year. And we will supply lifelong software upgrade services for our customers.
2.Q:Will you accept L/C as payment?
L/C ,T/T is OK.
3.Q:How about engineers service oversea?
Our engineers could go abroad services when necessary.
4.How about the sample machines for testing?
Sample sending for testing is welcomed. Or you send these three photos, the raw material, good material (which is you want), bad material (which is you want to discard). We send our video to you.
5.Q:How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
6.Can you supply the accessories parts of color sorter?
Yes,we can supply some spare parts when you need.
7. Which machine will work together with our color sorter which you can supply?
We can provide Air compressor, air tank, air filters, Cleaning brushes, etc.
6.Real Photo of WYCS5-320 in customer site
7.Our Service:
Pre-sales
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After-Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
8.Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.
