Place of Origin:
Hefei China
Brand Name:
WENYAO
Certification:
ISO9001 and CE
Model Number:
WYCS7-448 and 6-6SXZ-448
Contact Us

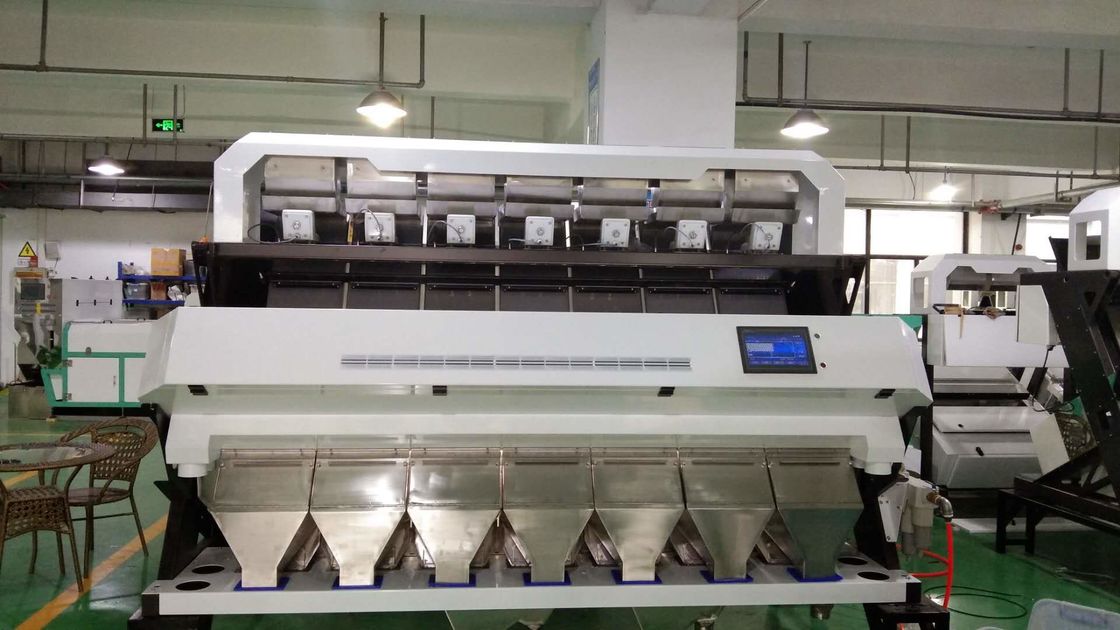

CCD WYCS7-448 Rice Color Sorter Machine For Color Sorting Rice Mill Machine
1.CCD WYCS7-448 Rice Color Sorter Machine Working Principle and Price
Raw materials are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate. Under the effect of light source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work, ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber
2.Technical Parameters:
| MODEL | WYCS7-448 |
| Chutes/Channels | 7 / 448 |
| Throughput(T/h) | 5T/h-7T/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 3.9kw |
| Power Voltage | 180-240V/50-60Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.8M3/Min |
| Weight | 1350kg |
| Diamension(L*W*H) | 2905*1540*1852mm |
How to get the correct size and price for wenyao color sorter machine?
Step 1.What kinds of the material are you planning to sort ?
Step 2.How much capacity(output) to sort for the raw materials per hour?
Step 3.In order to know the impurity rate of the raw materials which are needed to be sorted, please send us 3 pictures as following:
1. Raw material picture(feeding in the machine materials)
2. Accepted material picture(you want to save the good materials)
3. Rejected material picture(you want to sort out the bad materials)
3.Machine Features:
1.Most advanced RGB cameras with 5400 pixels
linear industry CCD sensor .
2.America FPGA processing chip.
3.Japan Toshiba CCD sensor.
4.Metal ejectors/valves with more than one billion lifetime
5.Lens:Japan Nikon Lens .
6.Filter: Japan CKD filter
7.Power source:Taiwan Meanwell
8.All LED light source,more longer lifetime and save power
9.Flexem Humanized touch screen
10. WIFI remote control system ,help end user to debug and monitor machine situation in chinese factory during covid-19 period,Supply non-contactness after service
4.Examples of Color Sorting Examples
5.After Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
6.Packing and Delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 15 - 20 days after received deposit.
