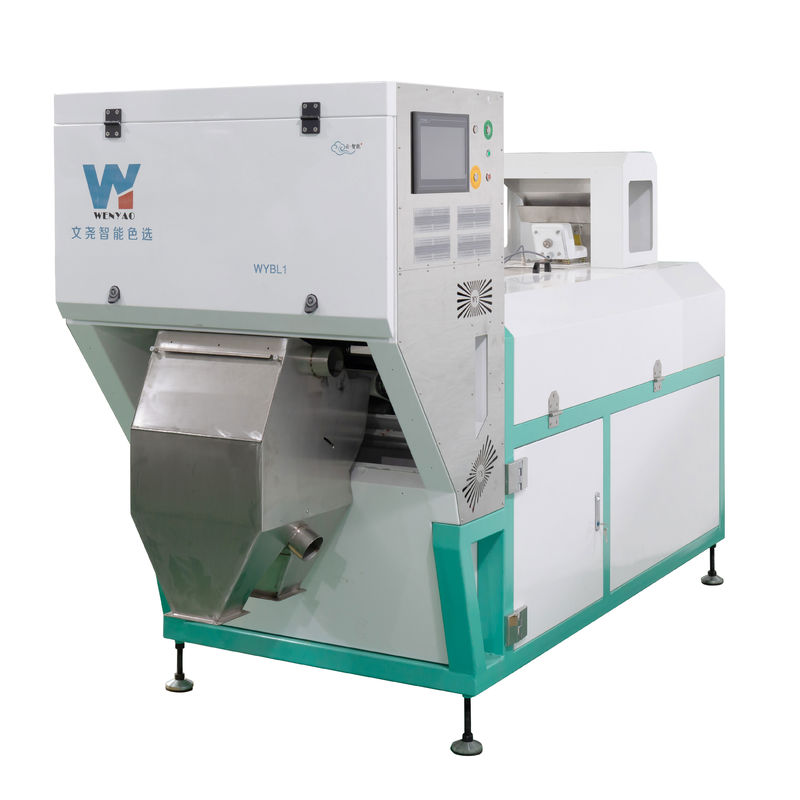

Mini Belt Type Horizontal Nuts Color Sorter From China
Nuts color sorter working principle:
When wenyao color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
| MODEL | WYB1 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 0.5-1t/h |
| Sorting Aaccuracy | ≥99.9% |
| Power | 1.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min |
| Weight | 450kg |
| Diamension(L*W*H) | 2450*1010*1539mm |
Throughtput:Different impurity with different throughput.
Features:
*Latest UHD imaging and analysis technology,high-speed processing,accurate identification
*High level AI self-learning function,one-key automation,user friendly interface,easy operation
*Multi-function,multi-purpose,widely used for rice ,cereal,plastic,chinese medicine
*High and specification ensures high stability,with high sorting accuracy,small carry over and low energy
*Small and portable,saving space and delivery cost,small machine but super function
*Imported ejectors,much smaller air consumption,and much better carry over,esp.good for small materials like quinoa,chia,sesame....
*Option:Remote control by smart terminals like cellphone ,can realize the off-site controls of the accuracy,production capacity and halt of the machines
*Simple Effective-installation&Start-up&Commissioning services;remote teaching and guidance via live video online through internet to worldwide
Examples of multifunction color sorting:
Product Application:
