Name: Wenyao 2025 Newest Chinese Factory Optical Ccd Color Sorter Almond Pistachio Cocoa Nut Color Sorting Machine
Brand: Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd
SKU: WYCS1-64
Price: 7,000.00 USD
Availability: InStock

Home > products > Nuts Color Sorter >

Wenyao 2025 Newest Chinese Factory Optical Ccd Color Sorter Almond Pistachio Cocoa Nut Color Sorting Machine

Place of Origin:

China

Brand Name:

Wenyao

Certification:

Model Number:

WYCS1-64

Request A Quote

Product Details

Type:

Nut Color Sorter Machine

Channels:

Weight:

280 KG

Warranty:

2 Years

Power:

1.1 KW

Voltage:

180-220V 50HZ/60HZ

Air Consumption:

200-600 L/Min

Air Pressure:

0.6-0.8 Mpa

Certification:

ISO9001,ISO CE

Dimension(l*w*h):

800*1556*1274 Mm

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Application:

Industrial Processing Sorting

Payment & Shipping Terms

Minimum Order Quantity

Price

6500$-7500$

Packaging Details

wooden case

Delivery Time

3-5 days

Payment Terms

L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability

100 PCS/Month

Wenyao 2025 Newest Chinese Factory Optical Ccd Color Sorter Almond Pistachio Cocoa Nut Color Sorting Machine

Get Best Price

Video

Wenyao 2025 Newest Chinese Factory Optical Sorter Supplier Cocoa Nut Color Sorter Machine

Get Best Price

Video

Accuracy CCD Camera Automatic Macadamia Nut Color Sorting Machine

Get Best Price

Video

Raspberry Color Sorter Grain Rice Wheat Coffee Bean Nuts Color Sorter for Frozen Strawberry Blueberry

Get Best Price

+86--13855135585

service@wycolorsorter.com

+86-551-67699185

Contact Now

Product Description

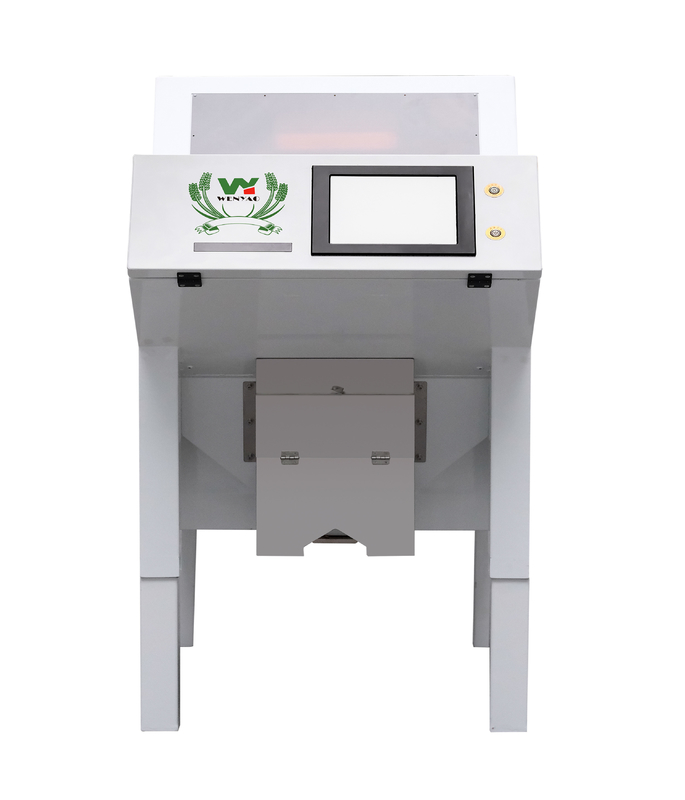

Wenyao 2025 Newest Chinese Factory Optical Ccd Color Sorter Almond Pistachio Cocoa Nut Color Sorting Machine

Color Sorting Machine Function:

When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.

Model	WYCS1-64
Power	1.1 KW
Voltage	180~240 50Hz
Air Pressure	0.6~0.8 MPa
Air consumption	<0.5 m³/min
Dimension	80015561274 mm

* The data of the machine overall dimensions are for reference only, specific dimension will be subject to the installation drawing

Working Principle

Detailed Description of Key Parts

CCD Camera

*5340 linear CCD camera with high precision allows high definition identification and high speed sorting.
*Most advanced ccd technology can sort materials accurately.
*Toshiba CCD sensor
*American process chip

Self-developed Solenoid Valve

*WenYao mechanical ejector with scientific design can make machine work stably for long time.
*A new type of high frequency valve allows for low consumption of electricity , long life reaction speed, high durability, easy
maintenance, and improved color accuracy.

Adjustable LED Light Source

*Configuration of the special light source allows for ten million kinds of color sorting with a fully adjustable colourspectrum.
*Materials can be sorted according to different configurations which is suitable for various sizes of sorting, no need to change
the light source.

Intelligent computing integrated circuit

With unparalleled high performance and low abilityconsumption, the industry's highest Bandwidth andintegration, processing ability increased 5 times.

Humanized interface

*Humanized touch panel, easy to learn, more convenient to operate.Concise touch panel helps customer operate easily and promptly.

*High quality FPGA processing technology, defects of 0.04mm2 can be detected.

Sorting Samples

Packing & Delivery Wenyao 2025 Newest Chinese Factory Optical Ccd Color Sorter Almond Pistachio Cocoa Nut Color Sorting Machine 12

*Process visualization

From manufacturing to shipment, all processes can be supervised in real time according to your requirements.

And we welcome you to visit our factory in person.

In customer site

In Our Europe Customer Working Plant.

In Our Southeast Asia Customer Working Plant.

In Our South Asia Customer Working Plant.
