Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS6-384
Contact Us

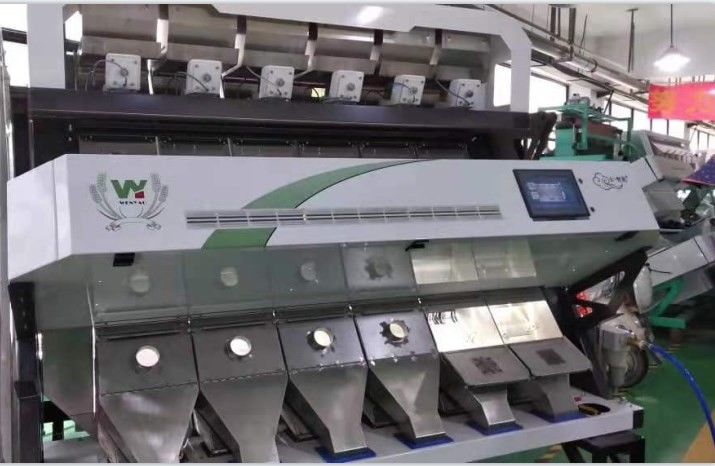

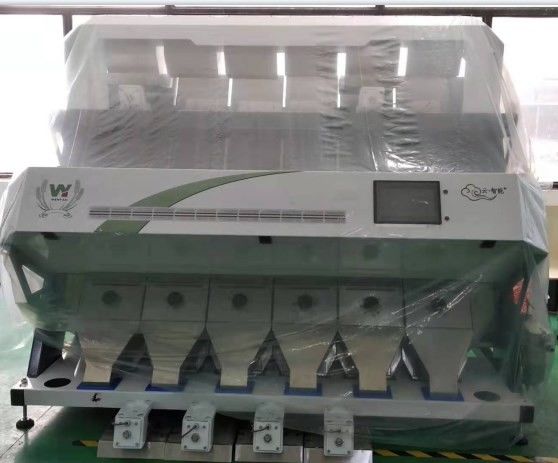

Multi-Function 384 Channels PVC ABS PP Pet Flakes Plastic Colour Color Sorter Plastic Color Sorting Machine
Color Sorter Technical Features :
| MODEL | WYCS6-384 |
| Chutes/Channels | 6/384 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 3.1kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <3.2M3/Min |
| Weight | 1100kg |
| Diamension(L*W*H) | 2595*1540*1852mm |
CCD Optical Color Sorters Features:
High-resolution CCD image acquisition and sensing system
5400 pixel high resolution full color CCD trap camera,with complementary dimming,deep identification of tiny and delicate magazines to ensure the product's ability to identify micro-chromatic aberrations
High-speed data processing software
Self-designed core software, “DSP+FPGA” process technique ensures the high working efficiency and accurate calculating, accurately identify colors and shapes,multiple modes of intelligent and complex algorithms, providing "color sort + shape sort" solutions for different materials,Effectively remove diseased spots, rice husks, mildew, stones, white belly and other hetero-chromatic particles in rice.
Light source system
Longer life, high-purity spectrum, provide high-definition image quality, can meet the sorting of more than a thousand colors
AI design
Touch screen operation platform, user-friendly and easy-to-learn operation interface, making color selection simpler and smarter, reducing manual errors, and providing powerful learning capabilities.
Float jet valve design
The unique magnetic levitation technology is adopted to make the spray valve match other execution units, increase the service life and reduce the air consumption.
Automatic fault detection
A variety of faults are automatically diagnosed, and automatically warned, which is convenient for detecting faults.
Dust Outlet
Accurate dust collecting position design to secure sorting room spotlessly clean keeping high identification
Recommended Applications:
Rice
Wheat
Peanuts
Seeds
Grains
Beans and Pulses
Below Our Strength:
1. With Over 14 years experiences.focus on sorter machine.
2.After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install and w.
3.We have service station, cooperate reseller in more than 100 countries.
4.Quality assurance of raw materials: The raw materials we purchase are certified qualified products.
The Color sorter work principle:
Working principle CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color selection process as shown:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
From Customer's Site :
Frequently Asked Questions:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
6.Will you test machine before delivery ?
Yes , we will test carefully before delivey ,and save parameters in the machine
Regular maintenance and inspection
1Monthly: check the filter element and the cleanliness of the ash removing brush.
2Quarterly: check the fluorescent lamp.
3Half a year; check or replace lubrication oil for the compressor at least one time.
Warning: in order to prevent static electricity and ensure the personal safety, the host machine and its attached equipment shall be in good ground connection. Electric cabinet opened by professional only. It is forbidden to open the rear case cover of the cabinet in operation as it is a fully enclosed automatic cycle air cooling system.
