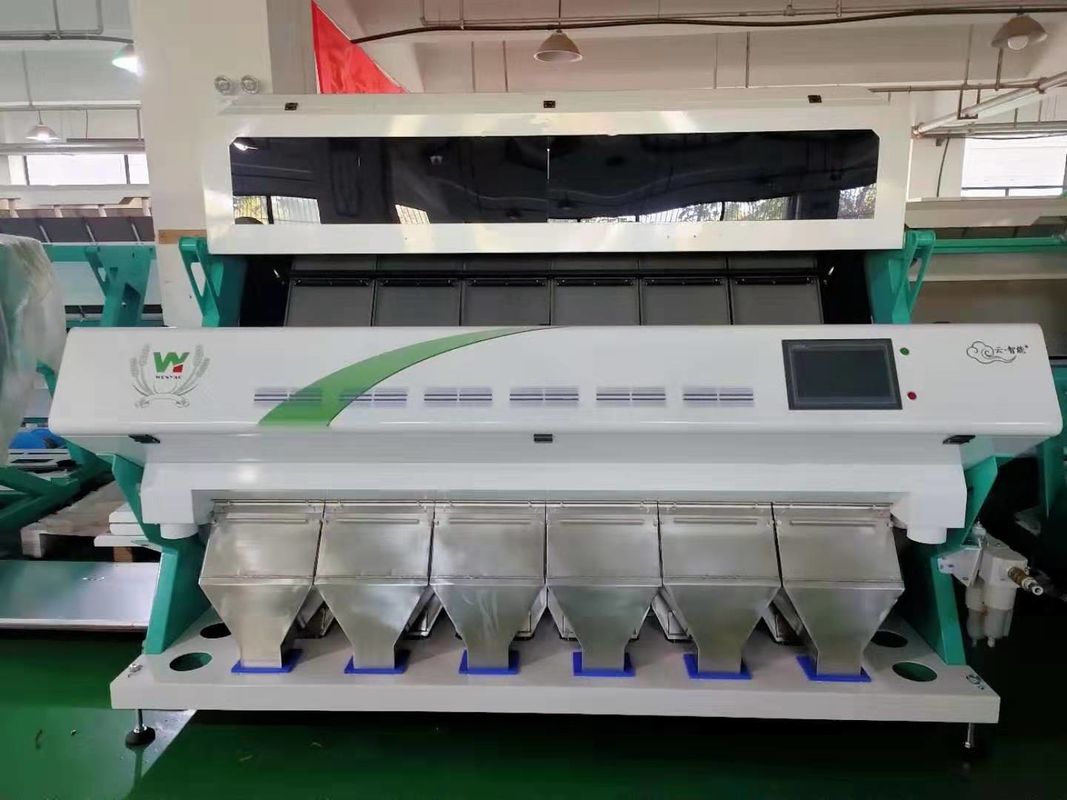

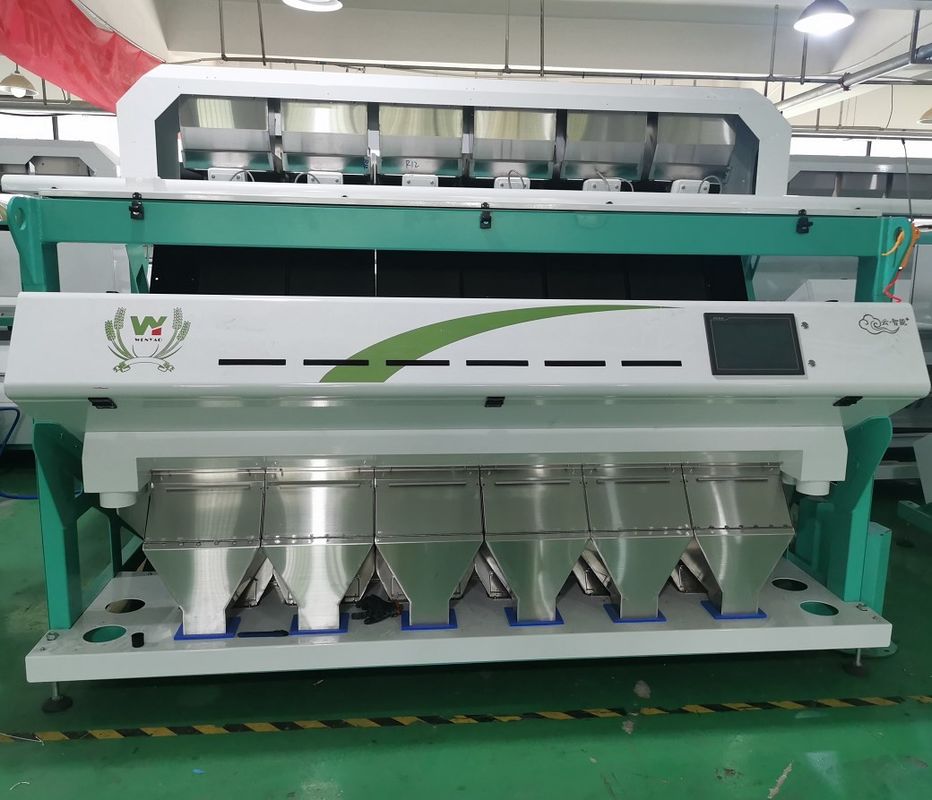

High Performance Agricultural Seeds Color Sorter Machine Manufacturer Chili Seed Color Sorter
Color Sorter Technical Features :
| MODEL |
WYCS6-384 |
| Chutes/Channels |
6/384 |
| Throughput(t/h) |
1-2t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
3.1kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<3.2M3/Min |
| Weight |
1100kg |
| Diamension(L*W*H) |
2595*1540*1852mm
|
Colour sorters or color sorters (sometimes called optical sorters, digital sorters, or electronic colour sorters) are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them, and using mechanical or pneumatic ejection devices to divert items whose colours do not fall within the acceptable range or which are desired to form a separate group from the rest.
How does a color sorter work? The raw material enters the machine from the top hopper/storage hopper. Through the vibration of the vibrator device, the raw material slides down the channel accelerate down into the observation zone in the sorting cabinet and pass between the sensor and the background plate.
The Color sorter work principle:
Examples of color sorting:
From Customer's Site :
Maintenance :
1Monthly: check the filter element and the cleanliness of the ash removing brush.
2Quarterly: check the fluorescent lamp.
3Half a year; check or replace lubrication oil for the compressor at least one time.
Warning: in order to prevent static electricity and ensure the personal safety, the host machine and its attached equipment shall be in good ground connection. Electric cabinet opened by professional only. It is forbidden to open the rear case cover of the cabinet in operation as it is a fully enclosed automatic cycle air cooling system.
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
6.Will you test machine before delivery ?
Yes , we will test carefully before delivey ,and save parameters in the machine
Advantage as below :
1. With Over 14 years experiences.focus on sorter machine.
2.After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install and w.
3.We have service station, cooperate reseller in more than 100 countries.
4.Quality assurance of raw materials: The raw materials we purchase are certified qualified products.
5.Quality process assurance: We pass ISO quality management system, each process of production are under strictly standard.
6.System test: Our technical engineers check the product performance, to ensure that the factory products in full compliance with customer requirements
