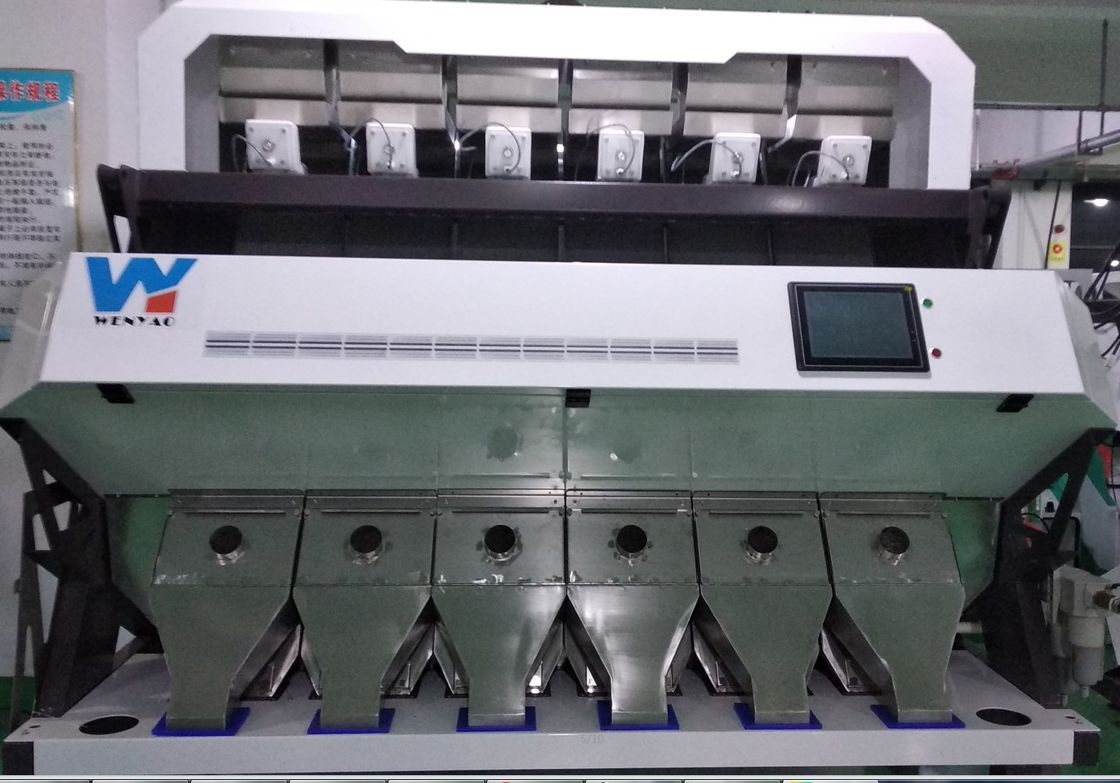

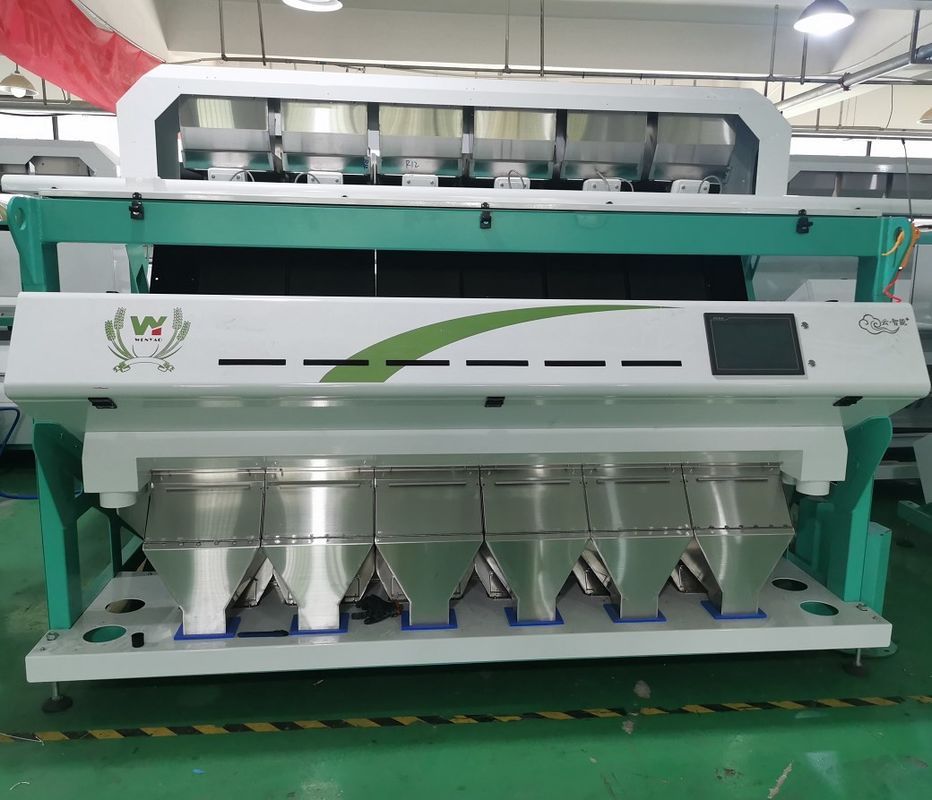

Dry Coconut Flake Coconuts Colour Sorting Machine Grain Color Sorter Machine
Camera
leading in the industry
International well-known brand customized lens
Import high-end 4096PIXEL CCD sensor
High-speed of scanning
The highest resolution comes to 0.02 mm²
High-frequency Solenoid Valve
leading in China
Service life more than 1 billion times.
Ultra high precision, leading in China
Intelligent Image Processing Algorithm
The combination of colors and shapes of
intelligent algorithm
Leading role in China.
Precise professional sorting solutions
Customized Lighting System
import purchasing
Advanced LED optical design system.
Various light sources are available to suit different materials.
Designated procurement of imported LED lamps,Higher stability, longer service life.
LED lighting system with thermal dissipation.
Data Transmission System
high-speed and stable
The COAX interface:
High anti-jamming, high transmission speed, high stability
Chip
innovative ultra high-speed processing
Based on SOC platform architecture;
Compared to DSP platform, the CPU improves 5 times, output processing improves 4 times, realizing the stability ,reliability and high-speed mass data processing.
Feed Trough
special technology
Application of high-quality 300mm ultra wide trough in China;
Special anodization treatment process ensures the required production in line with the international first-class level;
Cascading flat plate and narrow chute channel can be outfitted to sort a variety of material colors.
The main components of the color sorter are feed hopper, vibrating feeder, chute, light source, background plate, CCD lens, outlet hopper, nozzle, air compressor, air tank, and filter.
Feeding system
It consists of feeding hopper, vibrating feeder, and chute. Raw material enters into vibrating feeder from the feeding hopper, then automatically be arranged into a series of continuous current line by vibration and a guiding mechanism, and fall to a detection zone at a constant speed after being accelerated by the chute. to ensure that the material is clearly present in the sorting cabinet. The feeding system also controls the capacity of the color sorting machine in addition to the function of providing raw material.T through the adjustment of the vibration amount of the feed hopper flow control plate and the vibration hopper, the control of the output of the color sorter per unit time can be realized.
Optoelectronic system
The Optoelectronic system is the core part of the color sorting machine, which is mainly composed of an LED light source, background plate, CCD lens, and related auxiliary devices. The light source provides stable uniform illumination of the material being tested and the background plate. The CCD lens converts the reflected light of the material to be measured into an electrical signal in the detection area. The background plate provides a reference signal for the electronic control system.
Sorting system
The sorting system consists of accessories such as sorting cabinet, nozzles, air supply. The nozzle has been experimentally proved that the nozzle spacing and the number of nozzles are one of the key factors affecting the accuracy of the color sorter.
Cleaning system
The cleaning system consists of cylinders, glass cleaning brushes, and other components. Because some items come with the dust and other impurities that may adhere to the glass during the color sorting process. Once the dust and impurities are attached to the window glass, the optoelectronic system may cause chain-chain problems such as false detection, which will affect the color sorting accuracy and carryover ratio.
Operating System
The large-screen wide-angle touch screen is used to preset multiple color sorting modes for customers. And establish a friendly man-machine interface, according to the specific conditions of materials convenient and quick to achieve adjustment.
Examples of color sorting:
From Customer's Site :
Advantage:
1. With Over 14 years experiences focus on sorter machine.
2.After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install and w.
3.We have service station, cooperate reseller in more than 100 countries.
4.Quality assurance of raw materials: The raw materials we purchase are certified qualified products.
