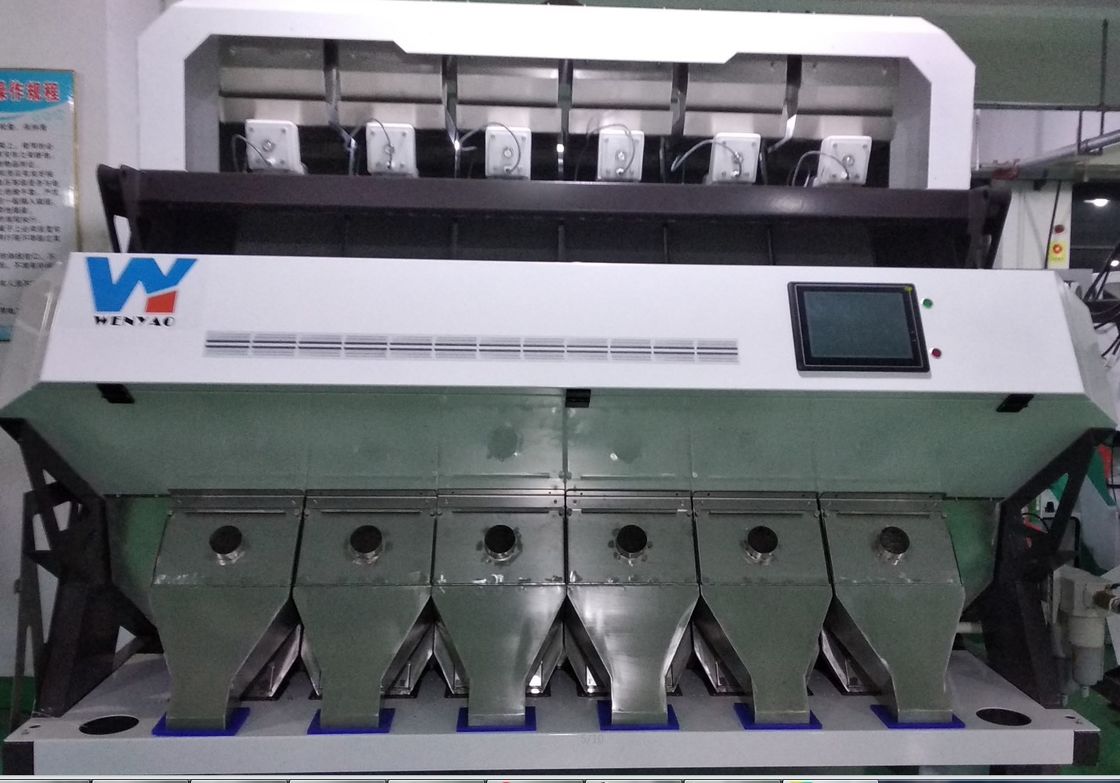

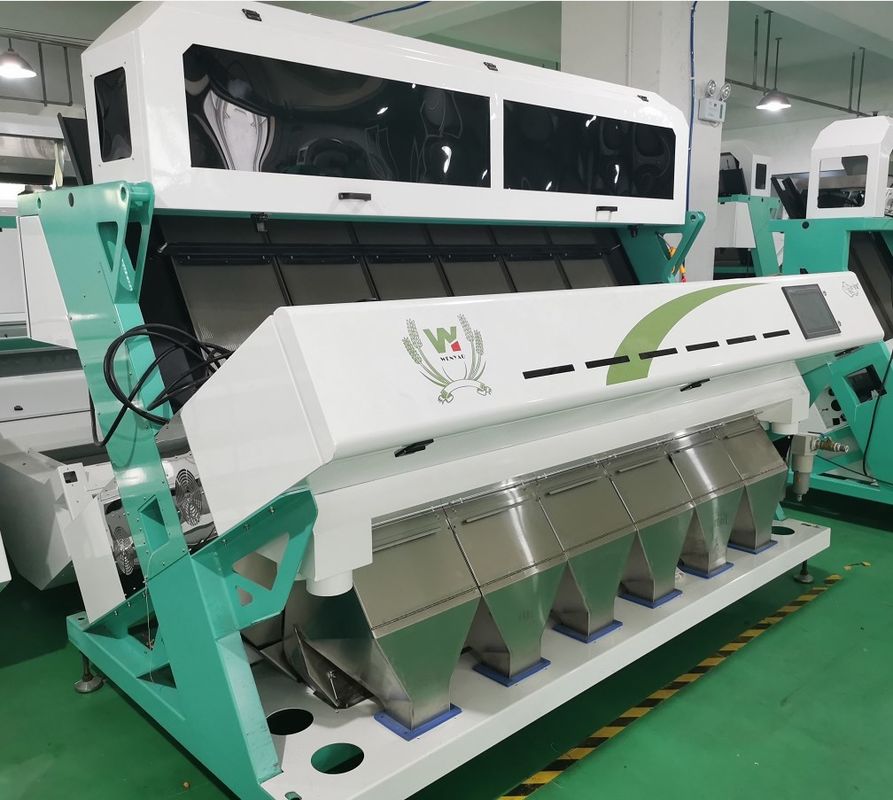

Metal Ejector Groundnut Machine , CCD Camera Peanut Color Sorter

Metal Ejector Groundnut Machine , CCD Camera Peanut Color Sorter

Metal Ejector Groundnut Machine

CCD Camera Groundnut Machine

CCD Camera Peanut Color Sorter

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS6-384

Contact Us

Request A Quote
Product Details
Function:
Color Sorting Machine
Condition:
Brand New
Light Source:
LED
Warranty:
2 Years Warranty
Feature:
Easy To Operate ,high Sorting Accuracy
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service
Sorting Accuracy(%):
≥99.99
Color:
White ,according To Customer's Needs
Voltage:
220V 50HZ
Ejector:
Metal Ejector
Application:
Rice Processing,sorting,wheat,grain Cleaning And Separator
Whole Power:
3.1
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package Packing size(L*W*H):2.70*1.72*2.05M
Delivery Time
15 - 20 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

Groundnut Color Sorter Machine With CCD Colour Camera Peanut Sorting Machine



Working Principles

The main components of the color sorter are feed hopper, vibrating feeder, chute, light source, background plate, CCD lens, outlet hopper, nozzle, air compressor, air tank, and filter.

Feeding system

It consists of feeding hopper, vibrating feeder, and chute. Raw material enters into vibrating feeder from the feeding hopper, then automatically be arranged into a series of continuous current line by vibration and a guiding mechanism, and fall to a detection zone at a constant speed after being accelerated by the chute. to ensure that the material is clearly present in the sorting cabinet. The feeding system also controls the capacity of the color sorting machine in addition to the function of providing raw material.T through the adjustment of the vibration amount of the feed hopper flow control plate and the vibration hopper, the control of the output of the color sorter per unit time can be realized.

Optoelectronic system

The Optoelectronic system is the core part of the color sorting machine, which is mainly composed of an LED light source, background plate, CCD lens, and related auxiliary devices. The light source provides stable uniform illumination of the material being tested and the background plate. The CCD lens converts the reflected light of the material to be measured into an electrical signal in the detection area. The background plate provides a reference signal for the electronic control system.

Sorting system

The sorting system consists of accessories such as sorting cabinet, nozzles, air supply. The nozzle has been experimentally proved that the nozzle spacing and the number of nozzles are one of the key factors affecting the accuracy of the color sorter.

Cleaning system

The cleaning system consists of cylinders, glass cleaning brushes, and other components. Because some items come with the dust and other impurities that may adhere to the glass during the color sorting process. Once the dust and impurities are attached to the window glass, the optoelectronic system may cause chain-chain problems such as false detection, which will affect the color sorting accuracy and carryover ratio.

Operating System

The large-screen wide-angle touch screen is used to preset multiple color sorting modes for customers. And establish a friendly man-machine interface, according to the specific conditions of materials convenient and quick to achieve adjustment.



Color sorter work principle:

Metal Ejector Groundnut Machine , CCD Camera Peanut Color Sorter 0


Working principle CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color selection process as shown:

Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)







Examples of color sorting:



Metal Ejector Groundnut Machine , CCD Camera Peanut Color Sorter 1Metal Ejector Groundnut Machine , CCD Camera Peanut Color Sorter 2Metal Ejector Groundnut Machine , CCD Camera Peanut Color Sorter 3Metal Ejector Groundnut Machine , CCD Camera Peanut Color Sorter 4Metal Ejector Groundnut Machine , CCD Camera Peanut Color Sorter 5Metal Ejector Groundnut Machine , CCD Camera Peanut Color Sorter 6







From Customer's Site :



Metal Ejector Groundnut Machine , CCD Camera Peanut Color Sorter 7Metal Ejector Groundnut Machine , CCD Camera Peanut Color Sorter 8Metal Ejector Groundnut Machine , CCD Camera Peanut Color Sorter 9Metal Ejector Groundnut Machine , CCD Camera Peanut Color Sorter 10
