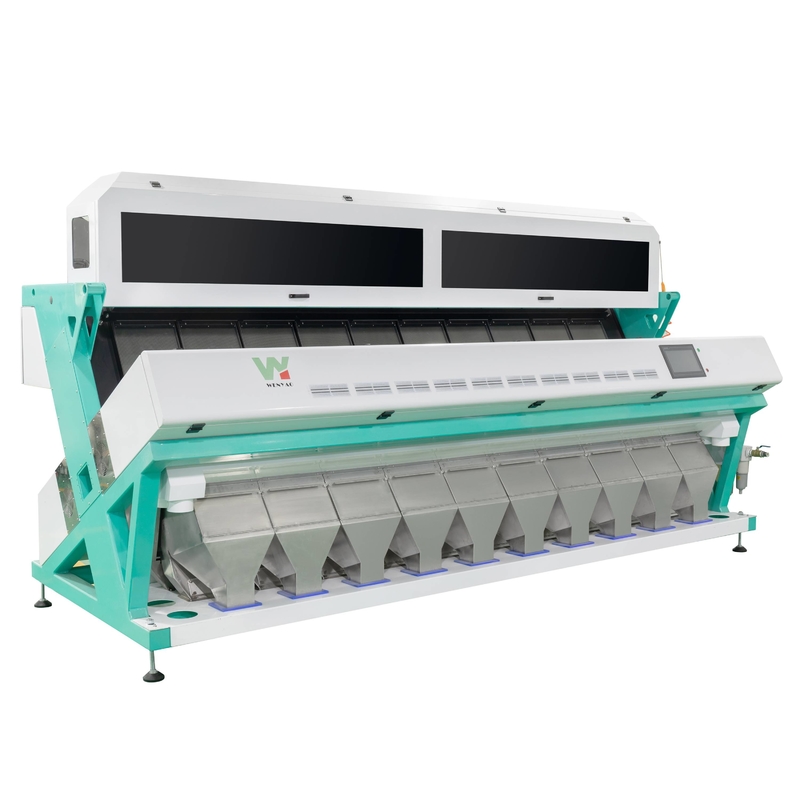

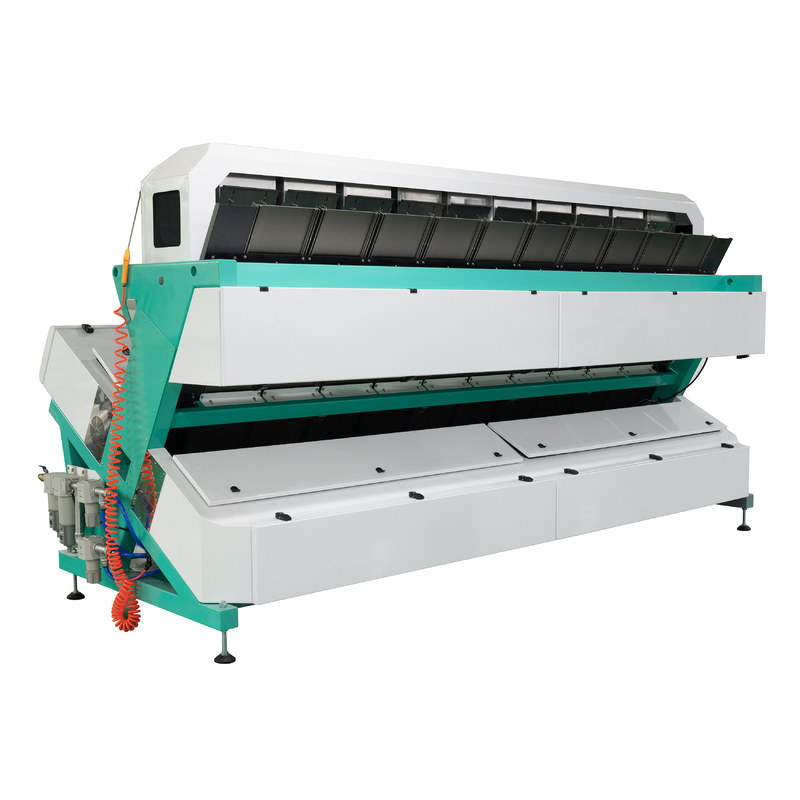

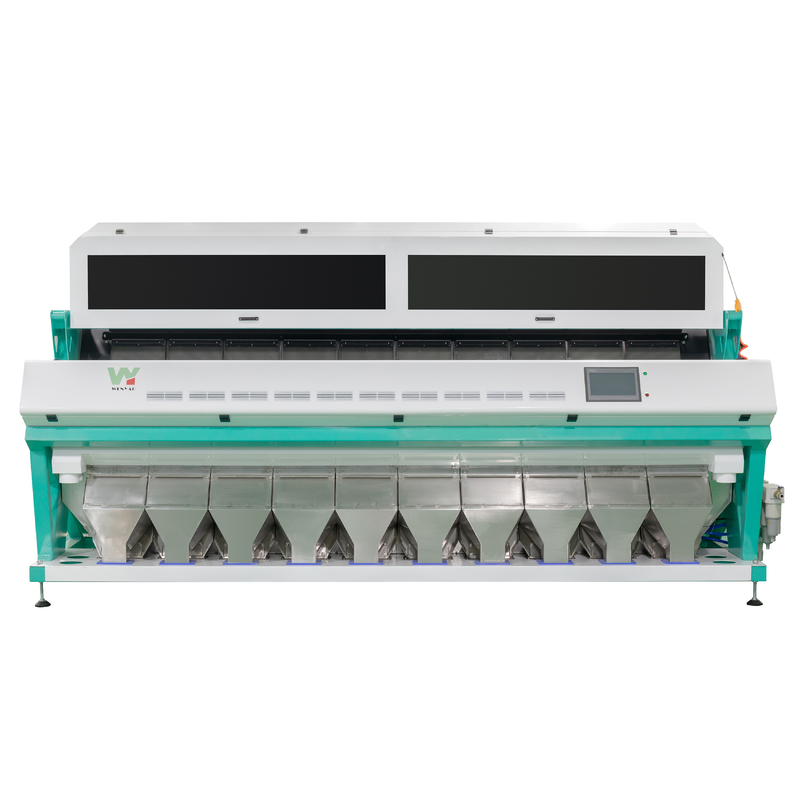

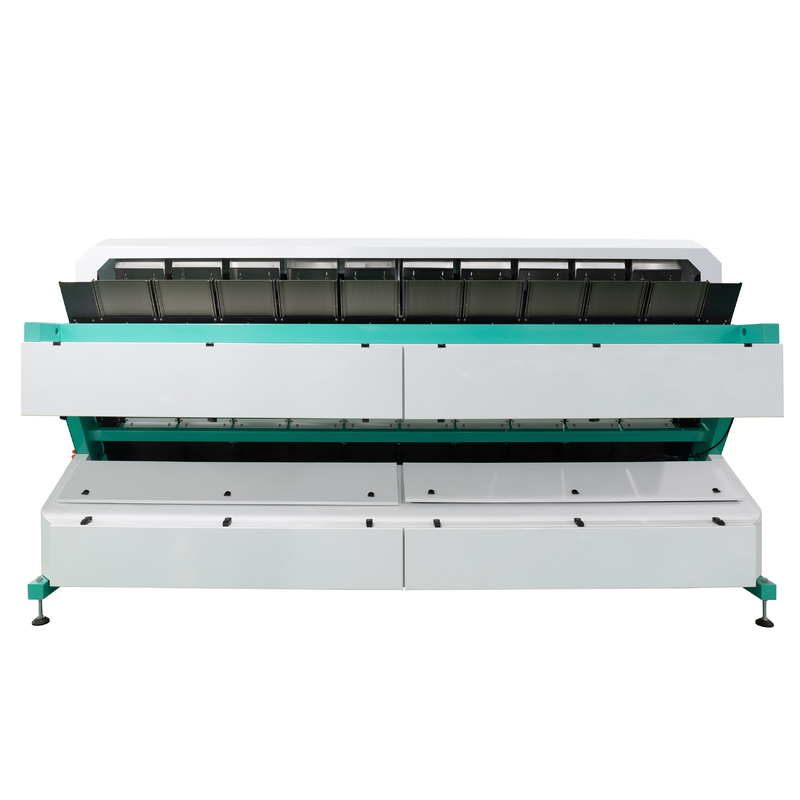

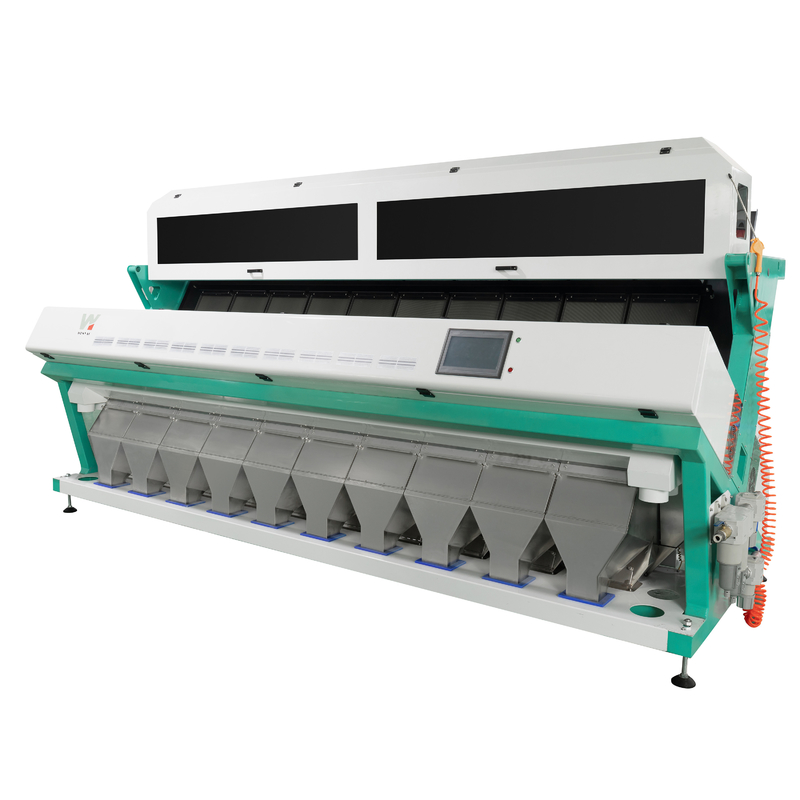

Walnut Color Sorter Nuts Grading And Cleaning Machine Remove Walnut Shell Out From Kernel
Color Sorters are machines used on the production lines in bulk food processing and other industries.They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.
In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the
valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of(0.4 … 0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.
Wenyao color sorter advantages:
※ High speed, resolution ratio CCD camera, high speed line scan.
※ High speed, resolution ratio super clear imaging,color reduction well, no distortion.
※ High luminance LED resource, low power consumption, long life, reliable.
※ High frequency solenoid valve , special for color sorting. high sorting accuracy.
Technical parameters:
| MODEL |
WYCS10-640 |
| Chutes/Channels |
10/640 |
| Throughput(t/h) |
10-15t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
6.5kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<5M3/Min |
| Weight |
1800kg |
| Diamension(L*W*H) |
3750*1540*1852mm |
Core Parts:
Wenyao color sorter application:
Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Walnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Vegetable and fruits:
Such as: Dried Garlic ,Onion, Olive,Coffee Cherry,Jujube ,Dried fish and shrimp
Examples of color sorting:
Our service:
Before sale:
We will help you know ahout our color sorter,meets your special requirement according to actual condition.
After Sale :
1.24-hour on site service fast response and considerate.
2.Two yeras warranty free maintenance.
3.7*24 hours free consultation service.
4.Establish user files,implement tracking services.
Parking and delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Details:
Within 15 - 20 days after received the 30% deposit.
Our customer's case:
FAQ:
1. How many days for production?
In general, within 20 worker days after getting deposit payment.
2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas,more reliable quality,more timely service.
The same quality, more favorable price.
3. Do you provide product installation,training and after-sales service?
Most products can be installed and trained through online video and text mode.If special products need to be installed on site,we will arrange technicians to install and debug on site.
4. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.
