Name: WENYAO 240V Bean Color Sorter , Chickpea Sorting Machine For Beans Processing Line
Brand: Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd
SKU: 6-6SXZ-320 & WYCS5-320
Price: 17,850.00 USD
Availability: InStock

Home > products > Beans Color Sorter >

WENYAO 240V Bean Color Sorter , Chickpea Sorting Machine For Beans Processing Line

240V Bean Color Sorter

Beans Processing Line Chickpea Sorting Machine

WENYAO Chickpea Sorting Machine

Place of Origin:

China Hefei

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

6-6SXZ-320 & WYCS5-320

Request A Quote

Product Details

Camera Pixels:

5400 Special Color Sensor For Industrial Color Selection

Condition:

Lastest WENYAO Color Sorter For Beans

MOQ:

1 Piece

Sorting Accuracy(%):

>=99.95%

Applicable Industrial:

Beans Processing Line

Power Supply:

220V/50HZ AC Single Phase

Function:

Lentils Cleaning And Grading

Power Source:

Taiwan Meanwell More Long Lifetime

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

Negotiable,and Welcome your Inquiry

Packaging Details

Plywood Cases Packing size(L*W*H):2550*1720*2050mm

Delivery Time

7-15 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

218PCS Per Month

High Accuracy Intelligent Kidney Bean Red Bean Optical Color Sorter Machine

Get Best Price

Video

Weanyao Multifunction Customizable CCD Camera Green and Roasted Coffee Bean Color Sorting Machine

Get Best Price

WENYAO High-Speed Self-Cleaning For Grain Rice Sorting Operations Color Sorting Machine

Get Best Price

Video

Wenyao Light Source Full Color Detection For Cocoa Beans Refining Color Sorter

Get Best Price

+86--13855135585

service@wycolorsorter.com

+86-551-67699185

Contact Now

Product Description

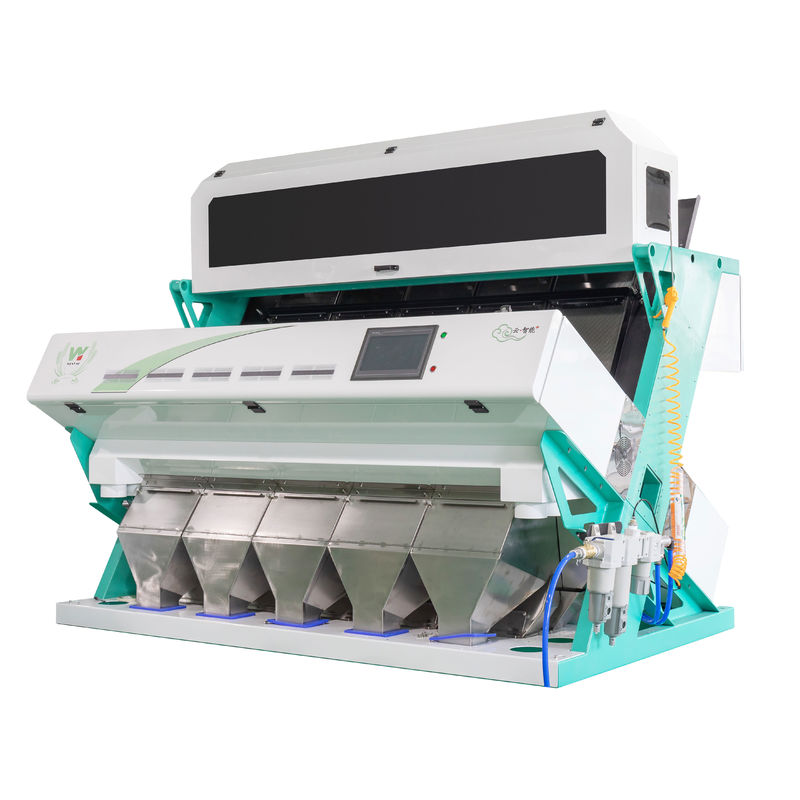

All LED Light Source Chickpea Color Sorter Machine For Beans In Chickpea Processing And Cleaning Line

1.WENYAO Color Sorter Machine Working Principle As Following Image

When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper

WENYAO 240V Bean Color Sorter , Chickpea Sorting Machine For Beans Processing Line 0

2.Technical Parameters:

WENYAO 240V Bean Color Sorter , Chickpea Sorting Machine For Beans Processing Line 1

MODEL	WYCS5-320
Chutes/Channels	5 / 320
Throughput(kg/h)	3000kg/h-4000kg/h
Sorting Aaccuracy	≥99.99%
Power	2.9kw
Power Voltage	240V/50Hz or Customized
Air Source Pressure	0.6-0.8Mpa
Air Consumption	<2.8M3/Min
Weight	900kg-910kg
Diamension(LWH)	224415401852mm

WENYAO 240V Bean Color Sorter , Chickpea Sorting Machine For Beans Processing Line 2

WENYAO 240V Bean Color Sorter , Chickpea Sorting Machine For Beans Processing Line 3

3.CCD Color Sorter Machine Features:

1.Most advanced RGB cameras with 5400 pixels linear industry CCD sensor .
2.America FPGA processing chip.
3.Japan Toshiba CCD sensor.
4.Metal ejectors/valves with more than one billion lifetime
5.Lens:Japan Nikon Lens .
6.Filter: Japan CKD filter
7.Power source:Taiwan Meanwell
8.All LED light source,more longer lifetime and save power
9.Flexem Humanized touch screen
10. WIFI remote control system ,help end user to debug and monitor machine situation in chinese factory during covid-19 period,Supply non-contactness after service

4.Examples of Color Sorting Examples

WENYAO 240V Bean Color Sorter , Chickpea Sorting Machine For Beans Processing Line 4

5.FAQ

1. How many days for production?
In general, within 15-20 worker days after getting deposit payment.

2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas,more reliable quality,more timely service.The same quality, more favorable price.

3. Do you provide product installation,training and after-sales service?
Most products can be installed and trained through online video and text mode.If special products need to be installed on site,we will arrange technicians to install and debug on site.

4. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.

6.Real Photo of WYCS5-320 in customer site

WENYAO 240V Bean Color Sorter , Chickpea Sorting Machine For Beans Processing Line 5

7.Our Service:

Pre-sales
We will provide detailed solutions for your special requirement and help you know more about our color sorter.

After-Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.

From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.

Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.

8.Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.

WENYAO 240V Bean Color Sorter , Chickpea Sorting Machine For Beans Processing Line 6
