Mini Belt Metal Color Sorter With High Sorting Accuracy

Mini Belt Metal Color Sorter With High Sorting Accuracy

Mini Belt Metal Color Sorter

High Sorting Accuracy Metal Color Sorter

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYB1

Contact Us

Request A Quote
Product Details
Function:
Color Sorting
Sorting Accuracy(%):
≥99.99
Condition:
New
Color:
Blue,according To Customer's Need
Warranty:
2 Years
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service
Application:
Metal Processing,sorting,cleaning And Separator
Pixels:
5400
CCD:
Toshiba Japan
Filter:
CKD Japan
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package Packing size(L*W*H):2.63*1.16*1.76M
Delivery Time
7-10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

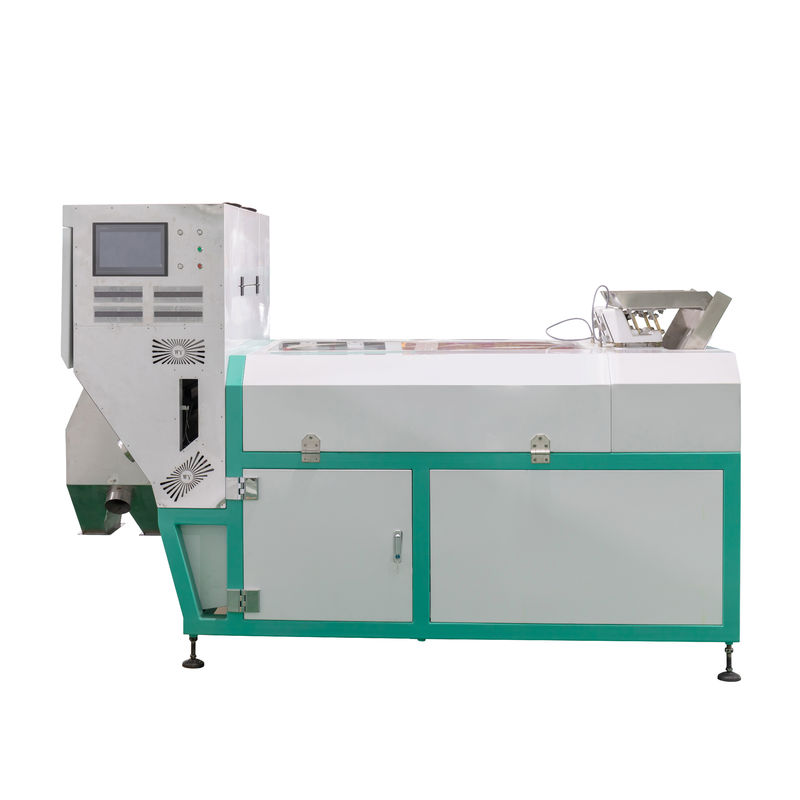

Mini high sorting accuracy belt metal copper and aluminum color sorter separating machine



Wenyao Color Sorting Machine Function:

When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.





Features:

►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.

►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.





Technical Parameters:

MODEL WYB1
Chutes/Channels 1/64
Throughput(t/h) 1-2t/h
Sorting Aaccuracy ≥99.99%
Power 1.5kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <0.6M3/Min
Weight 450kg
Diamension(L*W*H) 2450*1010*1539mm


Examples of color sorting:
Mini Belt Metal Color Sorter With High Sorting Accuracy 0Mini Belt Metal Color Sorter With High Sorting Accuracy 1

Application:



Agriculture products color sorter



Used for:Rice,Wheat,Corn,Soybean,Peanut,Nut,Grain,Cereal,Seeds,Bean,Sunflower seeds,Waltnut,Almond,Quinoa,Salt,Medlar,Pistachio,Kidney bean,Red bean,Black bean,Green bean,Coffee bean,Fava bean,Mung bean,Millet,Sorghum,Peeled garlic,Dehydrated garlic,Lotus seed,Sesame,Pinenut kernel,Watermelon seeds,Cotton seeds,Melon seeds,Buckwheat,Oats,Barley,Cardamon,Pea,Lentil,Cashew nut,Raisin,Jujube,Evaporate vegetables,Sugar,Onion,Potato,Blueberry,Tomato,Mango,Chickpea,Olives,Chili,others.

Industrial product color sorter
Used for:Waste Plastics,Plastic pellet,Plastic pieces,Plastic granule,Plastic bottle cap flake,PET bottle scrap,ABS plastic flake,PP plastic scrap,Recycled plastic,Quartz stone,Quartz sand,Potassium feldspar,Barite,Calcite,Limestone,Pearl,Marble and others.


River&Sea food color sorter


Used for: Dried shrimp, fish, small fish clove and so on.


Customized color sorter


Can be customized according to customer specific color selection program.
