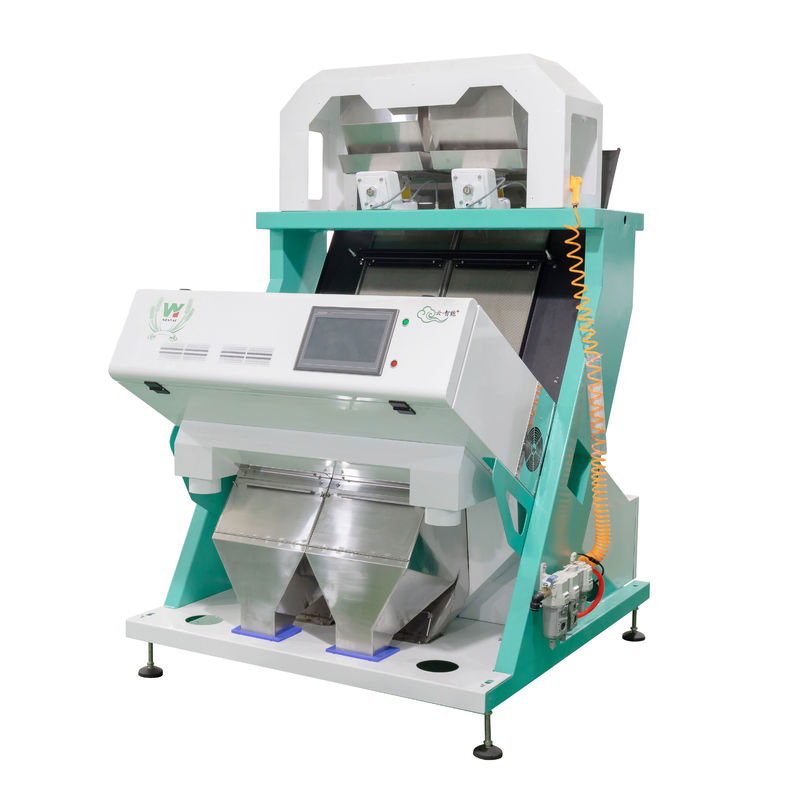

1T/H Maize Color Sorter Machine , 128 Channels Maize Grading Machine

Product Description:

Machine name: Maize Color Sorter Machine For Corn Maize Cleaning And Grading Equipment From China Factory
Function : Remove unqualified Corn automatically
Working Principle: Optical principle, with latest CCD camera,LED light
Models: Different channel (size) machines available for choosing,depands on the required capacity.

Steps

1. Raw Material are put into the machine from its feeding hopper on the top.

2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .

3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.

4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.

PARTS DETAILS:

Features:

►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.

Technical Parameters:

Examples of color sorting:

1. What can you provide if we buy the machine?
We will test here first(it is helpful if you can send us your material), after testing, we will send you a video to tech but if still have problem after you received it, we will send one engineer but it is paid.

2. How long about the guarantee period?
Two year. And we supply lifelong software upgrade services for our customers.

3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.

4. Is oversea service available?
Yes, our engineers could go abroad when required. but the cost need to be covered by Customer.

5.How to calculate Installation personnel cost?
Normally we will finish the installation here and if customer have special request, we will send 1 Engineer to teach, but customer need to cover the cost, including round -trip transportation and accommodation .

Packing & Delivery

1.Q:How about engineers service oversea?
A:Engineers available to service machinery overseas.

2.Q:How to use the machine?
A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you, how to use when he go to your country to debug the machine.

3.Q:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our video to you.

4.Q:How about the guarantee period?
A:Two year.

5.Q:Will you accept L/C as payment?
A:L/C ,T/T is OK.

6.Q:Do you have any other spare parts for the customer?
A:Yes,we will supply you some spare parts.

7.Q:Which machine will work together with our color sorter which you can supply?
A:Air compressor,Air tank,Air filters,Air dryer,Light sources,Cleaning brushes,etc
