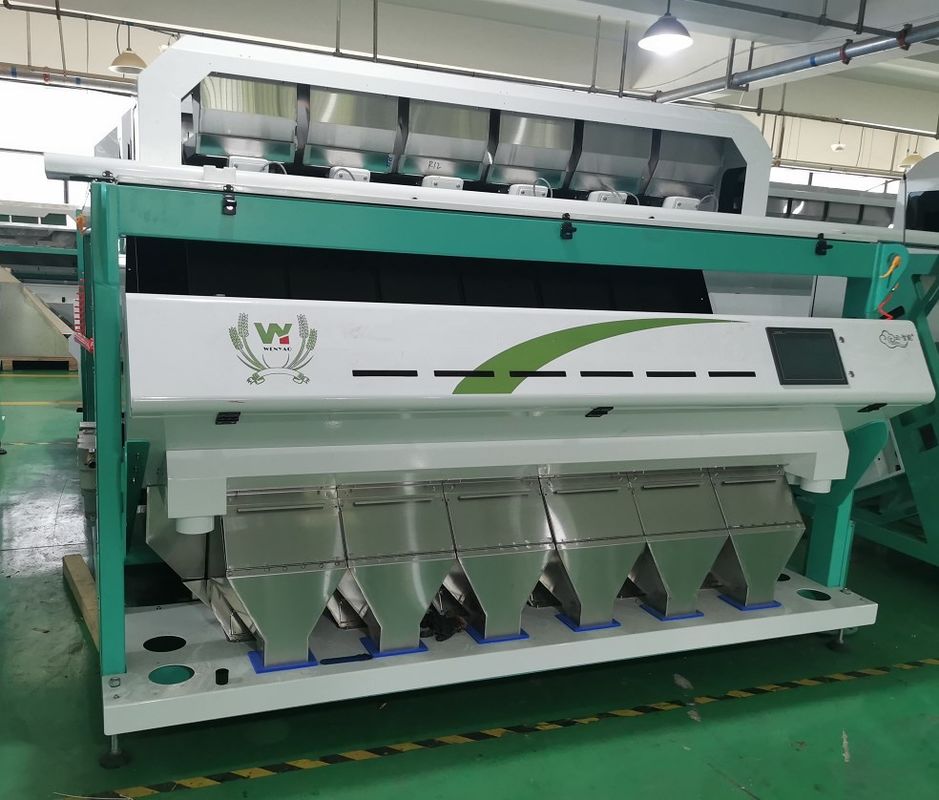

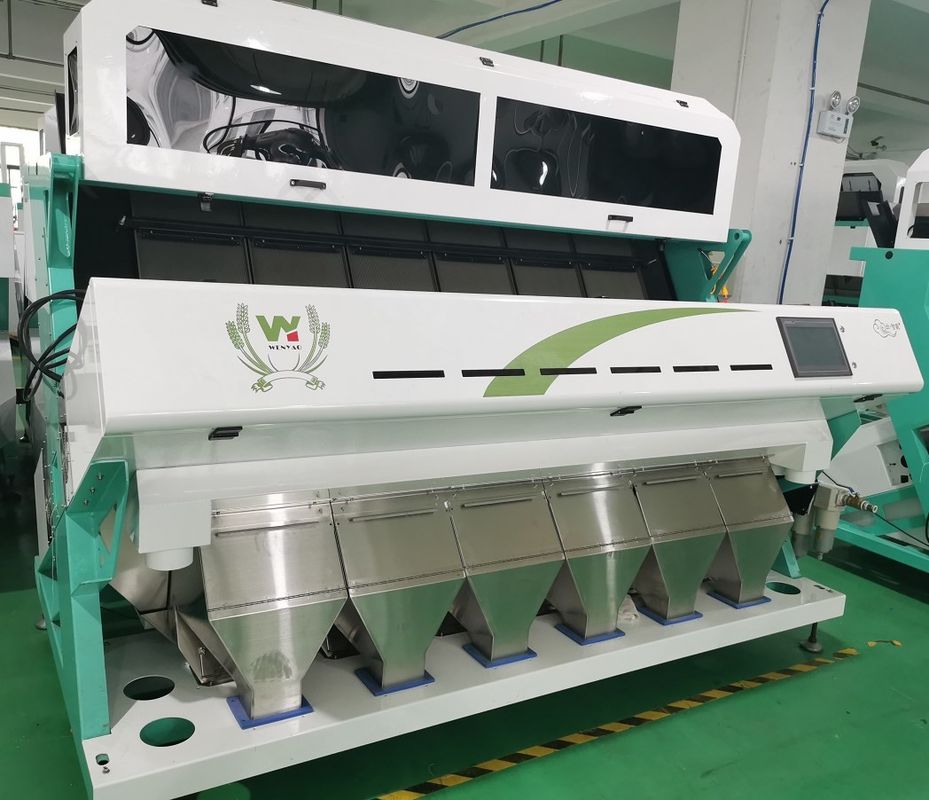

Pet Flake Color Sorter Manufacturer Plastic Sorting Machine For ABS PVC PP Pet Flakes
| MODEL | WYCS6-384 |
| Chutes(channels) | 6(384) |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥12:1 |
| Output(T/h) | ≥4 |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 3.1 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 1500-3200 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 2595*1540*1852 |
| Weight(kgs) | 1100 |
| Package | Plywood case |
| Package Size mm | 2645*1590*1902 |
| Ejector | Metal | 1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months. |
| Filter | YSC/CKD | 1.High filtration accuracy 2.High filtering speed 3.durable and long time service. |
| Screen | Touch screen | 1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:2 years |
| Hopper | 304 stainless steel | 1.Rust protection 2.Wear-resisting,wearproof |
| Package | Plywood case | 1.Stable structure no deformation 2.Easy to transport |
Camera
leading in the industry
International well-known brand customized lens
Import high-end 4096PIXEL CCD sensor
High-speed of scanning
The highest resolution comes to 0.02 mm²
High-frequency Solenoid Valve
leading in China
Service life more than 1 billion times.
Ultra high precision, leading in China
Intelligent Image Processing Algorithm
The combination of colors and shapes of
intelligent algorithm
Leading role in China.
Precise professional sorting solutions
Customized Lighting System
import purchasing
Advanced LED optical design system.
Various light sources are available to suit different materials.
Designated procurement of imported LED lamps,Higher stability, longer service life.
LED lighting system with thermal dissipation.
Data Transmission System
high-speed and stable
The COAX interface:
High anti-jamming, high transmission speed, high stability
Chip
innovative ultra high-speed processing
Based on SOC platform architecture;
Compared to DSP platform, the CPU improves 5 times, output processing improves 4 times, realizing the stability ,reliability and high-speed mass data processing.
Feed Trough
special technology
Application of high-quality 300mm ultra wide trough in China;
Special anodization treatment process ensures the required production in line with the international first-class level;
Cascading flat plate and narrow chute channel can be outfitted to sort a variety of material colors.
Human-Computer Interface
simple and easy to operate
More intelligent, easy operation, one button for professional sorting, remote debugging, remote diagnosis, remote software upgrading.
Examples of color sorting:
From Customer's Site :
This product can be used in agricultural, grain, oil, chemical, pharmaceutical and other industries, especially suitable for rice, tea, sesame, beans, seeds, raisins, plastic, ore, peanut, pepper, and other color sorting field.
Compared with manual sorting, a color sorter machine is labor-saving, time-saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.
Compared with manual sorting, a color sorter machine is labor-saving, time-saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.
