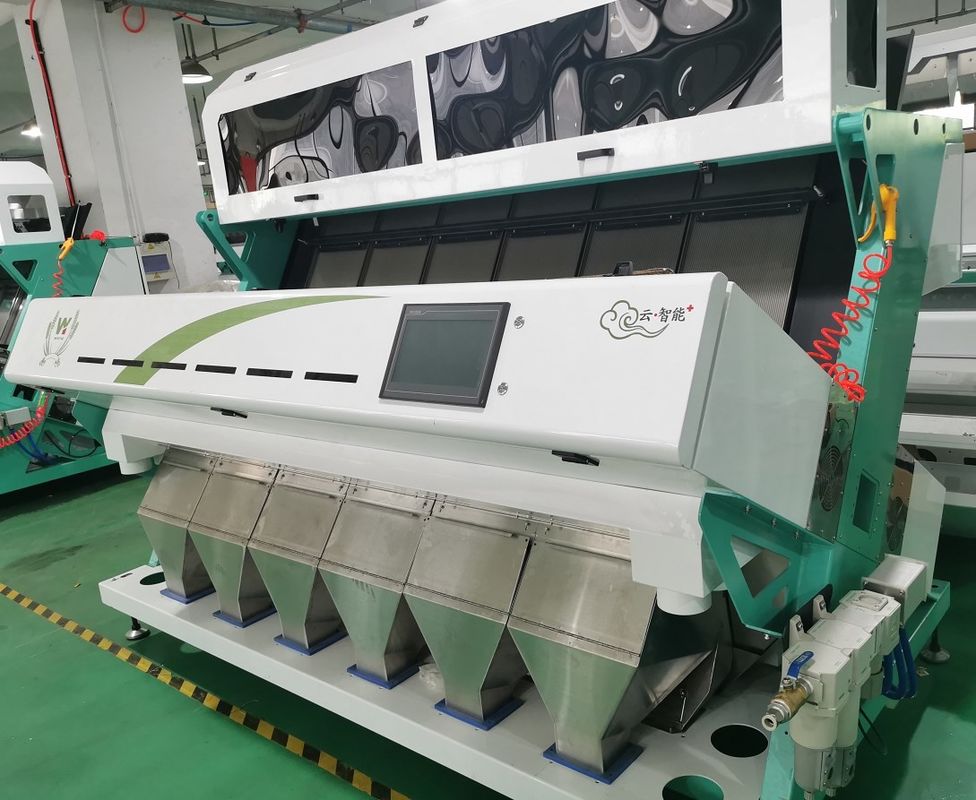

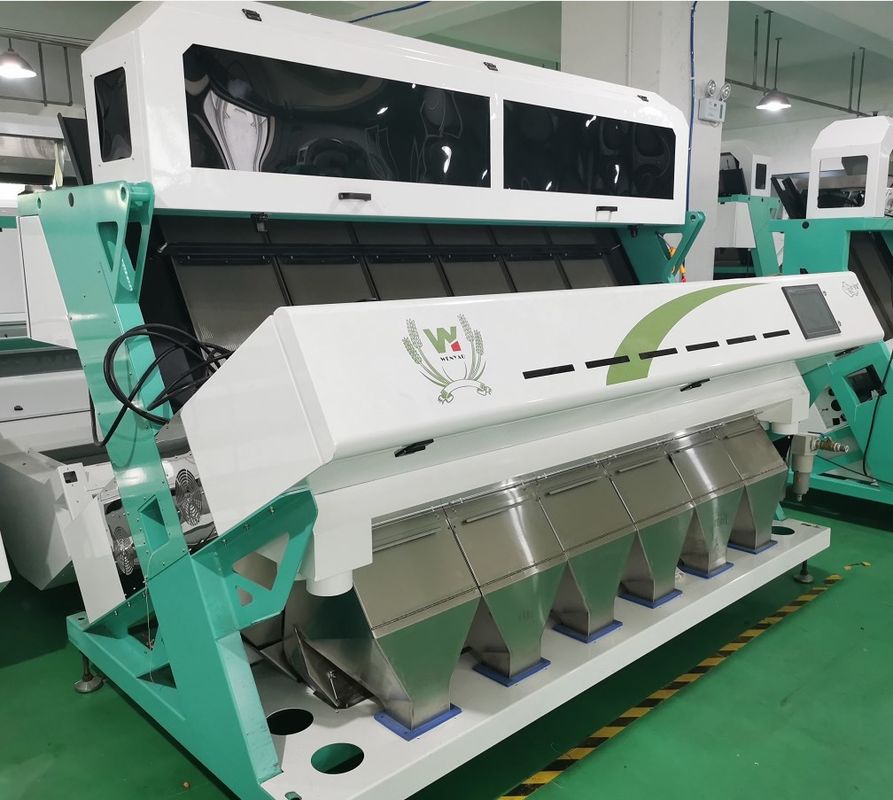

Flakes Granules Color Sorter Plastic Color Sorting Machine With WiFi Remote Service
| MODEL | WYCS6-384 |
| Chutes(channels) | 6(384) |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥12:1 |
| Output(T/h) | ≥4 |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 3.1 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 1500-3200 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 2595*1540*1852 |
| Weight(kgs) | 1100 |
| Package | Plywood case |
| Package Size mm | 2645*1590*1902 |
| Ejector | Metal | 1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months. |
| Filter | YSC/CKD | 1.High filtration accuracy 2.High filtering speed 3.durable and long time service. |
| Screen | Touch screen | 1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:2 years |
| Hopper | 304 stainless steel | 1.Rust protection 2.Wear-resisting,wearproof |
| Package | Plywood case | 1.Stable structure no deformation 2.Easy to transport |
Examples of color sorting:
From Customer's Site :
This product can be used in agricultural, grain, oil, chemical, pharmaceutical and other industries, especially suitable for rice, tea, sesame, beans, seeds, raisins, plastic, ore, peanut, pepper, and other color sorting field.
Compared with manual sorting, a color sorter machine is labor-saving, time-saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.
Maintenance :
Dedusting
Deash brush
Clean dusts on the rubber strip of the deash brush once a week by ash gun; check the deash brush once a month, if any loose, tighten it. Correct the rubber strip if it cannot operate steadily.
Dedusting for sorting cabinet
If any dust found on the glass inside the sorting box, rub and remove it with clean soft cloth soaked with alcohol, and check if dust wiper works normally. Start machine only after glass surface completely dried and cleaned.
Sewage discharging for filter and replacement of filter element
Sewage discharging for filter
Ambient temperature around the machine should be maintained at 0-40.
In places with night temperature may lower than 0, residual fluid inside the air compressor and air filter shall be removed after shutdown of machine. With the water discharging function, the air compressor and oil-mist separator will automatically discharge water when it reaches to certain height, while it would be difficult to discharge water as the water discharging port will be frozen when the temperature is below 0. Thus, it is required to discharge water manually.
If operate the machine with the compressed air temperature lower than 0, air supplied for the air filter and oil mist separator shall be dried by the air drier as the moist air would frozen the internal filter element, which hampers the air flow and cause damage to the filter element.
