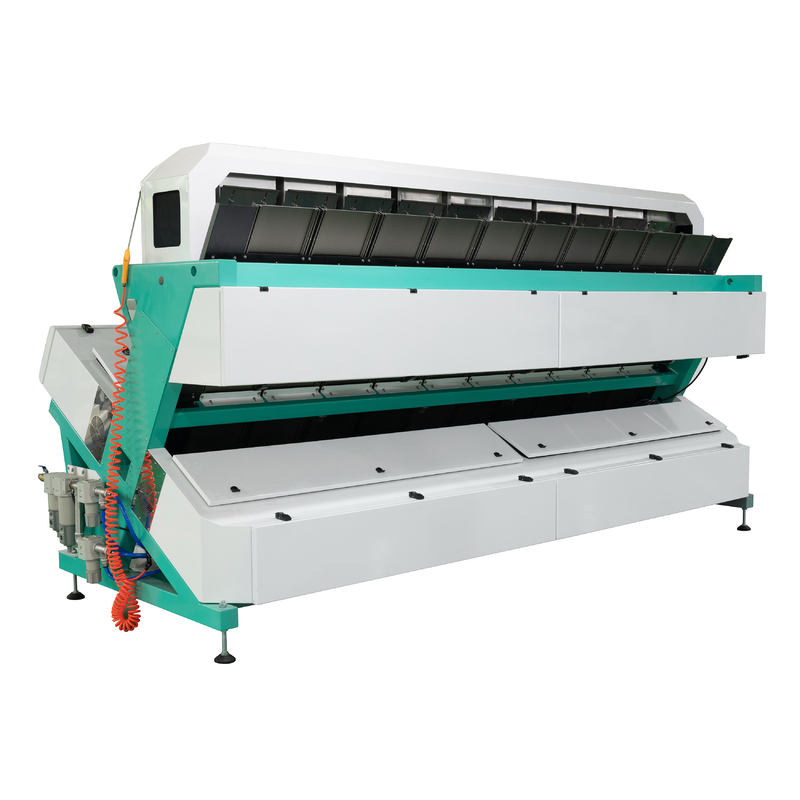

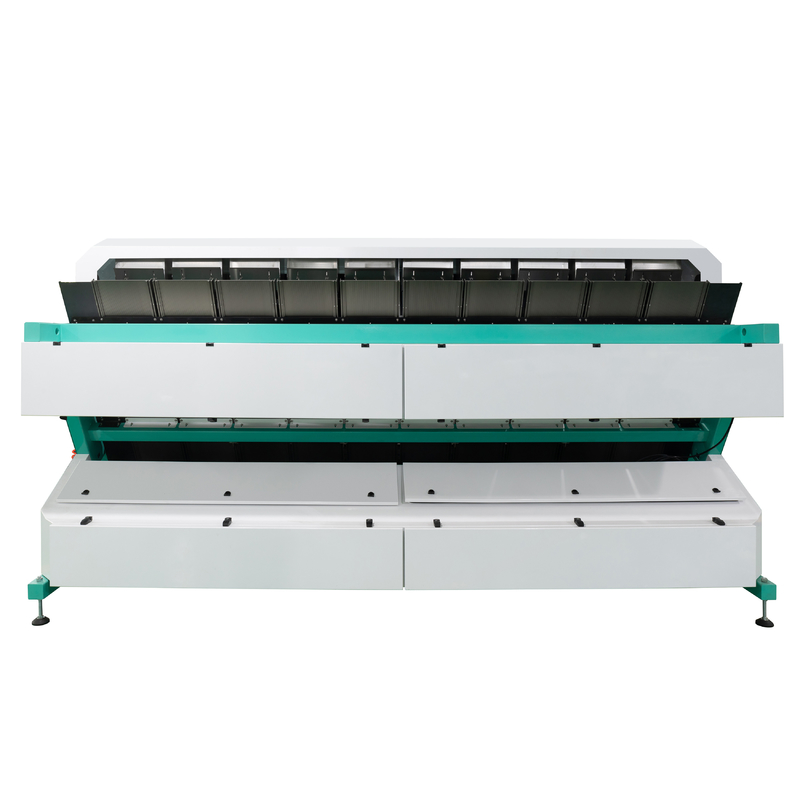

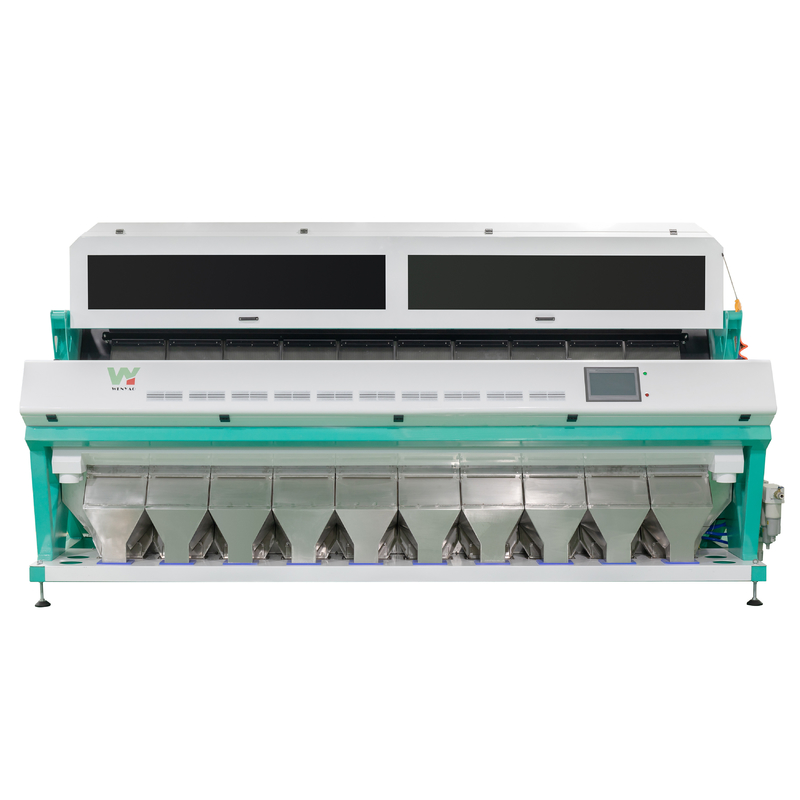

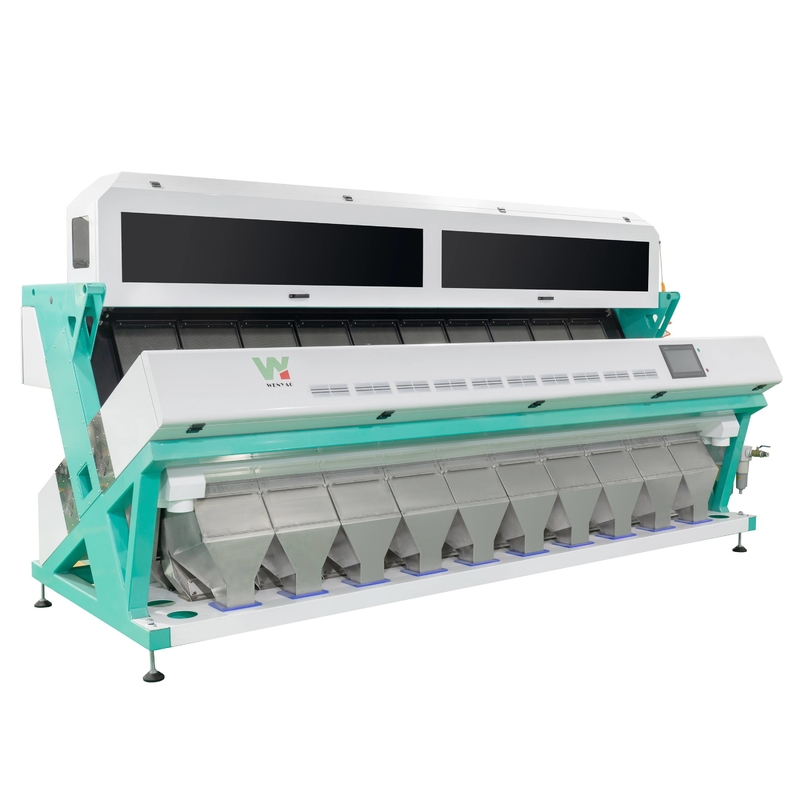

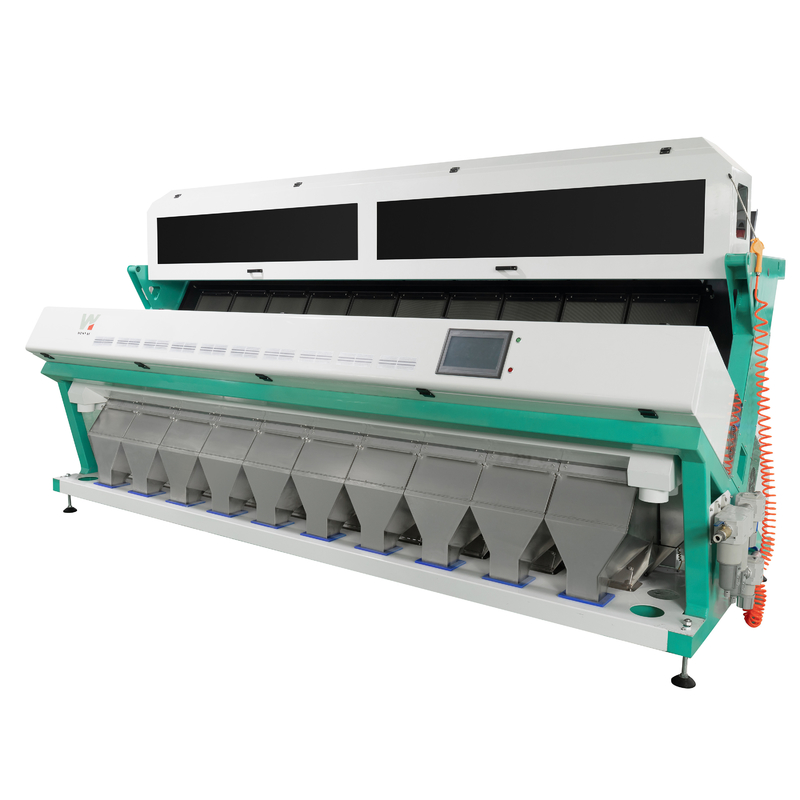

High Capacity 640 Channels Plastic Granules Pellet Sorting Machine Color Separating For Plastic
Wenyao color sorter features:
1.Excellent sorting performance: Advanced image acquisition system + intelligent image processing algorithm + high quality ejection system=excellent output and rejection;
2. RGB full color tri-chromatic CCD image acquisition system: Top industrial 5400 pixel,CCD high speed linear scan imaging sensor also first-class tailored camera lens for color sorting with a precision identifying tiny defects till 0.01m2;
3.Super ease operation system: Simple optical system design and accurate in time auto,calibration system plus simplified GUI design help reduce complicacies of machine,commissioning and running, easy operation and maintenance secured.
4. Customized image processing algorithm: Intelligence algorithm integrating image
color difference and defect size difference;
5. Long-life software upgrading for free.
6.OEM service welcomed.
Working principle:
Raw Material are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate.Under the effect of light source, CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Wenyao all products technical parameters:
How to get the correct size and price for wenyao color sorting machine?
Please contact us according to the following questions if you need color sorter prices:
Step 1.What kinds of the material are you planning to sort processing?
Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Step 2.How much capacity(output) to sort processing for the raw materials per hour?
Such as: 200KGS, 500KGS, 1000KGS, 2000KGS and son on.
Step 3.In order to know the impurity rate of the raw materials that are needed to be sorted, please send us 3 pictures as following:
1. Raw material picture
2. Accepted material picture
3. Rejected material picture
Effects of plastic sorting by wenyao color sorter:
Color sorter used in other materials:
Note:Our multi-functional color sorter can be used to sort rice, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. The following pictures are the color sorting performance of rice, soybean,wheat, peanuts and almond.If you want to sort other materials, please Contact our customer service, they will send you the corresponding pictures and videos
Wenyao color sorter core parts:
1.CCD Camera
Japanese TOSHIBA 5340 line ar CCD, core guarantee of high precision and quick sorting , the smallest to 0.04mm could be locked.
2.LED system
World leading stable long lifetime LED light, customized LED solution accepted according to specific material.
3.Control Unit
Advanced Image Processing System, synchronized for multiple operations and sorting mode. Adjust sorting operation to guarantee the sorting accuracy based on complex colors and shapes.
4.Chute System
Advanced chute design with hundreds of experiments, ensuring smooth flowing, uniform falling speed and less material consumption, optimized machine structure for disassembly and maintenance.
5.Ejector Valve
Italian new type of high frequency electromagnetic valve allows for accurate control of air flow power and direction with long lifetime
Our service:
Parking and delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Details:
Within 15 - 20 days after received the 30% deposit.
