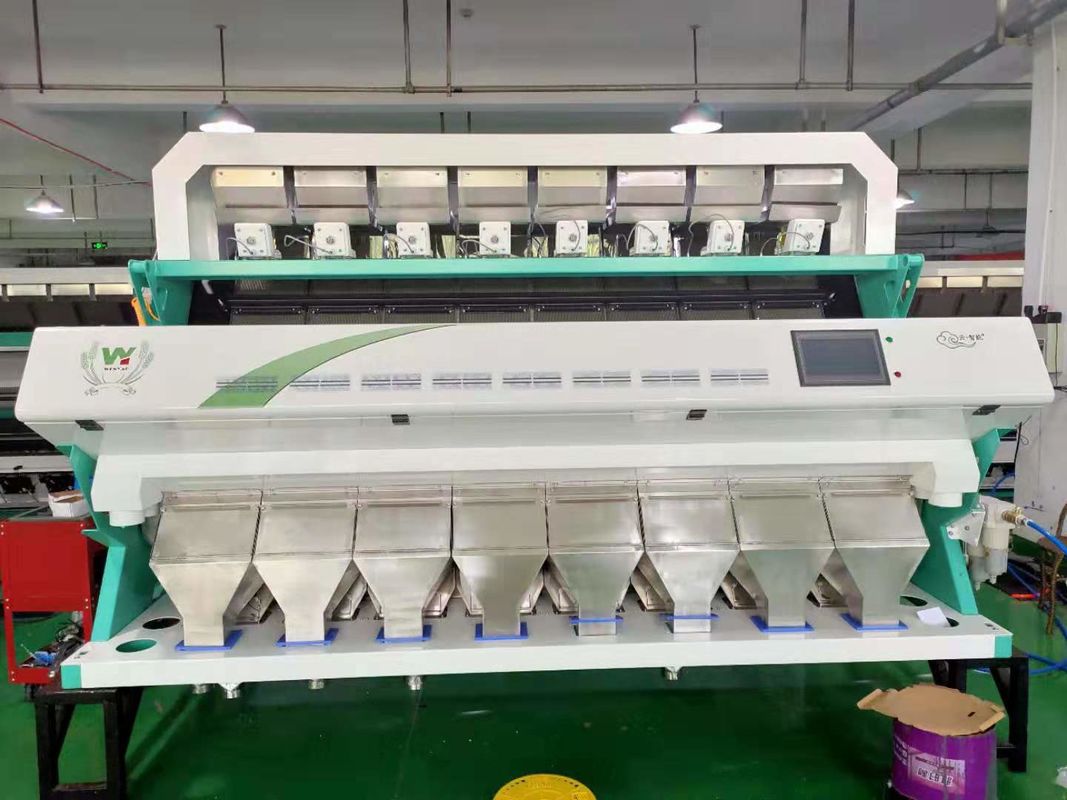

Easy To Operate CCD Camera Grain Color Sorter Sesame Colour Sorter
Grain color sorter working principle:
What is a CCD in a camera?
Stands for "Charged Coupled Device." CCDs are sensors used in digital cameras and video cameras to record still and moving images. The CCD captures light and converts it to digital data that is recorded by the camera. For this reason, a CCD is often considered the digital version of film.
Color Sorter Machine Working Flow
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Technical Parameters:
| MODEL | WYCS8-512 |
| Chutes/Channels | 8/512 |
| Throughput(t/h) | 5-8t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <4M3/Min |
| Weight | 1500kg |
| Diamension(L*W*H) | 3025*1540*1852mm |
Throughtput:Different impurity with different throughput.
Features:
►5400Pixel CCD image acquisition system.
►WIFI remote control system.
►Low temperature LED light source system.
►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
►Variable light background easy to operate.
More models parameters as following:
Examples of color sorting:
Customer site:
Delivery:
Product Application:
Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Vegetable and frut:
Such as: Dired Garlic ,Onion, Olive,Coffe Cherry,Jujube ,Dried fish and shrimp
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
