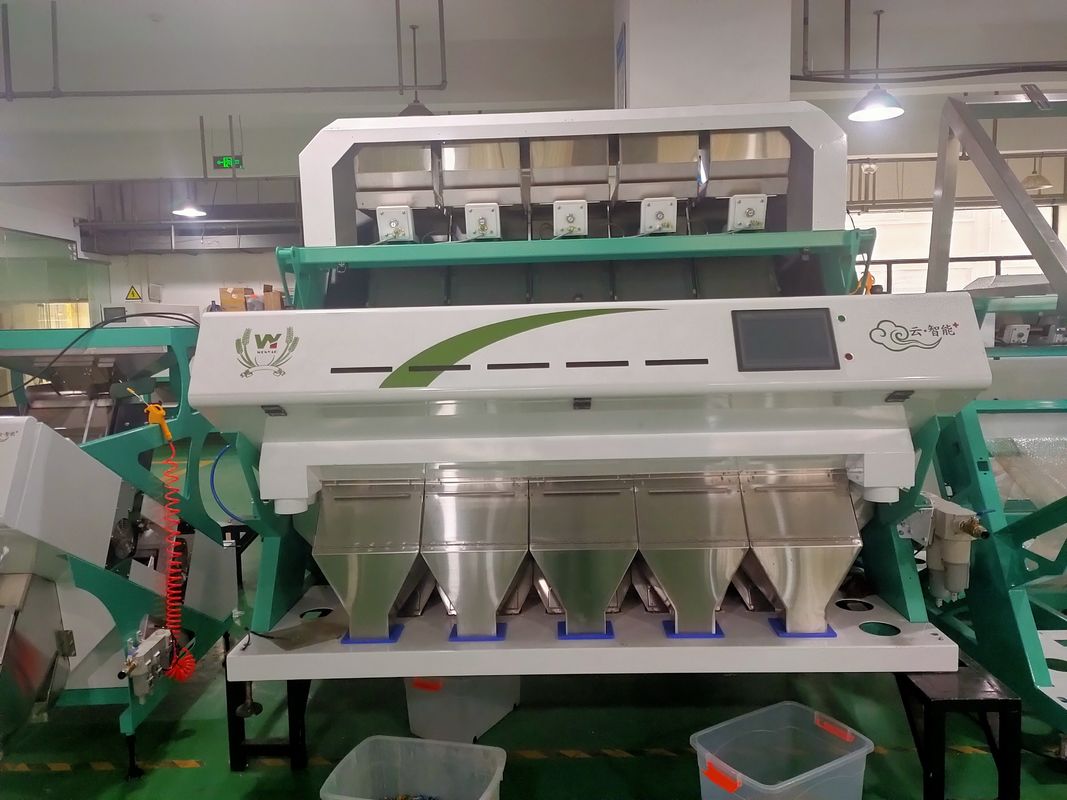

PE ABS HDPE Plastic Color Sorting Machine 4000kg/h Throughput

PET PVC PP PE ABS HDPE Plastic Color Sorter Machine In Plastic Recycling Machine

1.Plastic Color Sorter Machine Working Principle

Raw materials are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate. Under the effect of light source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work, ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber

2.Technical Parameters:

3.CCD Color Sorter Machine Core Parts:

1. The color high resolution CCD image acquisition system uses the color CCD image acquisition system to realize the comprehensive acquisition of the material red, green and blue color information. The color sorter has the human eye's sense ability, the material selection is more realistic and more in line with the requirements; the higher resolution is up to 0.04 mm2, which can accurately identify the fine defects and spots of raw materials. High precision special lens ensures clear and accurate image.

2. Flexible and variable light source equipped with LED system with heat dissipation, long life, low energy consumption and good performance. Different raw materials require different spectral lighting, and tailor the light source according to the needs of customers.

3. The special image processing algorithm uses shape and color combination algorithm according to material characteristics. For complex color materials, the color space after HSV transformation is more intuitive and precise.

4. Unique material trough equipped with special anodizing process can ensure the output and make the product reach the international level. It can be equipped with waterfall flat and narrow chute channel, which can meet many kinds of material color selection.

5.High-quality solenoid valves use high-quality solenoid valves, high frequency, long service life, very low gas consumption, to ensure that the machine output is large, take-out ratio is low, failure rate is low, low energy consumption; in view of the characteristics of large and small particles of raw materials, solenoid valves of different sizes are adopted.

6. Excellent rejection rate (take-out ratio 10:1). Advanced image acquisition system + intelligent image processing algorithm + high quality nozzle system = Excellent rejection rate

7. Simple operation, easy to learn and use, simple optical system design, precise automatic correction system, combined with carefully designed man-machine interface, greatly simplifies the complexity of machine debugging and use, ensures simple operation, and makes the machine easy to learn and use.

8.The selected material enters the machine from the top hopper, slides down the channel through the vibration of the vibrator device, accelerates the falling into the observation area of the sorting room, and passes through the sensor and the background plate. Under the action of light source, according to the intensity and color change of light, the system generates output signal to drive the solenoid valve to work and blow out the heterochromatic particles into the waste cavity of the hopper, while the good selected materials continue to fall into the finished cavity of the hopper, so as to achieve the purpose of sorting

4.Examples of Color Sorting Examples

5.FAQ

1.what can we do for you?

We will provide solutions to improve the quality of your materials. In order to increase the unit price and sales of your materials

2.What is color sorter?

Color Sorters used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.

3.What materials can be sorted

rice, cereal, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. If you want to sort other materials, please contact our customer service.

4. how can we guarantee quality?

Confirm the performance of the machine through video; Always final testing 7-days before shipment;

5.what services can we provide?

Before sale service:Sales consultant will provide you with solutionswho spoken English, Spanish, Thai, Japanese, Korean, Indonesian, Vietnamese, Russian, Arabic

After sale service: two-years warranty and lifetime maintenance

6.Real Photo of WYCS5-320 in Packing Link

7.Our Service:

Pre-sales
We will provide detailed solutions for your special requirement and help you know more about our color sorter.

After-Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.

From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.

Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.

8.Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.
