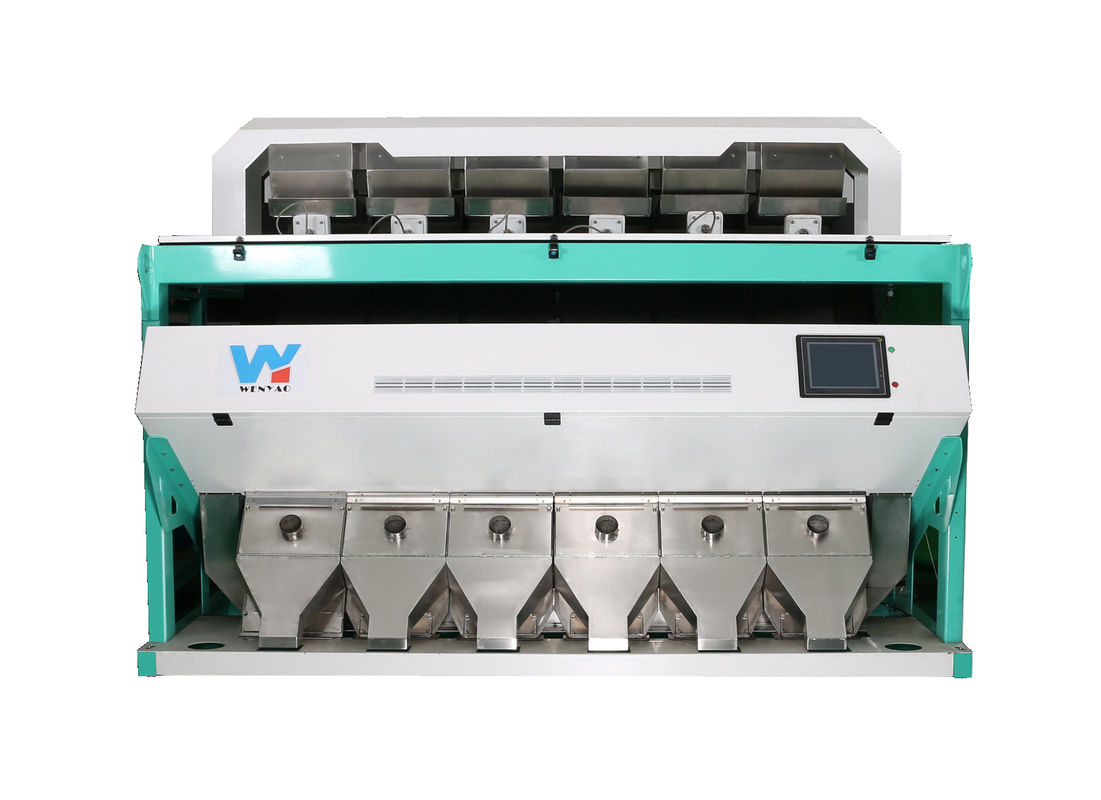

Pumpkin 5400 Pixel Ccd Camera Seeds Sorting Machine 220V 50H

Pumpkin 5400 Pixel Ccd Camera Seeds Sorting Machine 220V 50H

Wearproof Seeds Sorting Machine

220V 50HZ Seeds Sorting Machine

5400 Pixel Ccd Seeds Sorting Equipment

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS6-384

Contact Us

Request A Quote
Product Details
Function:
Ccd Color Sorting
Color:
White ,can Be Customize
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service
Warranty:
2 Years Warranty
Application:
Rice Processing,sorting,wheat,grain Cleaning And Separator
Light Source:
LED
Voltage:
220V 50HZ
Sorting Accuracy(%):
≥99.99
Feature:
High Sorting Accuracy
Whole Power:
3.1
Ejector:
Metal Ejector
Brand Of Power Supply:
Taiwan Meanwell
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable Price
Packaging Details
Plywood case package Packing size(L*W*H):2.70*1.72*2.05M
Delivery Time
15 to 20 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

Meet Your Requirement Ccd Camera Pumpkin Seeds Ccd Sorting Machine





MODEL WYCS6-384
Chutes(channels) 6(384)
Sorting accuracy(%) ≥99.9
Carryover rate (bad:good) ≥12:1
Output(T/h) ≥4
Voltage 180-240V/50Hz
Power supply(kw) 3.1
Work Air Pressure(Mpa) 0.2-0.3
Air consumption(L/min) 1500-3200
Air supply(Mpa) 0.6--0.8
Dimension(L*W*H) mm 2595*1540*1852
Weight(kgs) 1100
Package Plywood case
Package Size mm 2645*1590*1902




Ejector Metal 1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months.
Filter YSC/CKD 1.High filtration accuracy 2.High filtering speed 3.durable and long time service.
Screen Touch screen 1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:2 years
Hopper 304 stainless steel 1.Rust protection 2.Wear-resisting,wearproof
Package Plywood case 1.Stable structure no deformation 2.Easy to transport

Pumpkin 5400 Pixel Ccd Camera Seeds Sorting Machine 220V 50H 0



Customized high definition RGB camera assembly can be installed for special material The latest 3 linear color CCD camera and FPGA processing system in addition to the high-speed electromagnetic ejector have been adopted in the machine, and also the multi-color touch screen has been installed therein, so it is a high-tech product combined with technology of optics, electronics and pneumatics. The machine can automatically reject contaminant or colored grains, featuring high sorting accuracy, great efficiency, simply operation, easy maintenance, compact structure and elegant appearance.

Main features:

Increased Productivity

  1. Dedicated digital sorting engine to deliver high speed
  2. Wide flat chute to increase throughput

Maximized Sorting Yield

  1. Sorting high speed and precise ejection to minimize good product in reject
  2. Resort capability reclaims good product from reject

High Sorting Accuracy

  1. High speed, high resolution, full color RGB CCD camera (5400 pixels) to detect tiny defects
  2. Advanced imaging technology to sort defects with minimum contrast
  3. Enclosed feeding system to provide better feeding and chute protection
  4. Infrared sorting (optional) to effectively sort foreign materials

User Friendly Operation

  1. High resolution touch screen with user-friendly graphics
  2. Real time monitor of machine status
  3. Easy software upgrade with USB

Ejection

  1. Specially made ejectors and optimized timing for low carryover, reduced air consumption
  2. Dual air supply for stable air pressure under high defect sorting



Examples of color sorting:



Pumpkin 5400 Pixel Ccd Camera Seeds Sorting Machine 220V 50H 1

Pumpkin 5400 Pixel Ccd Camera Seeds Sorting Machine 220V 50H 2

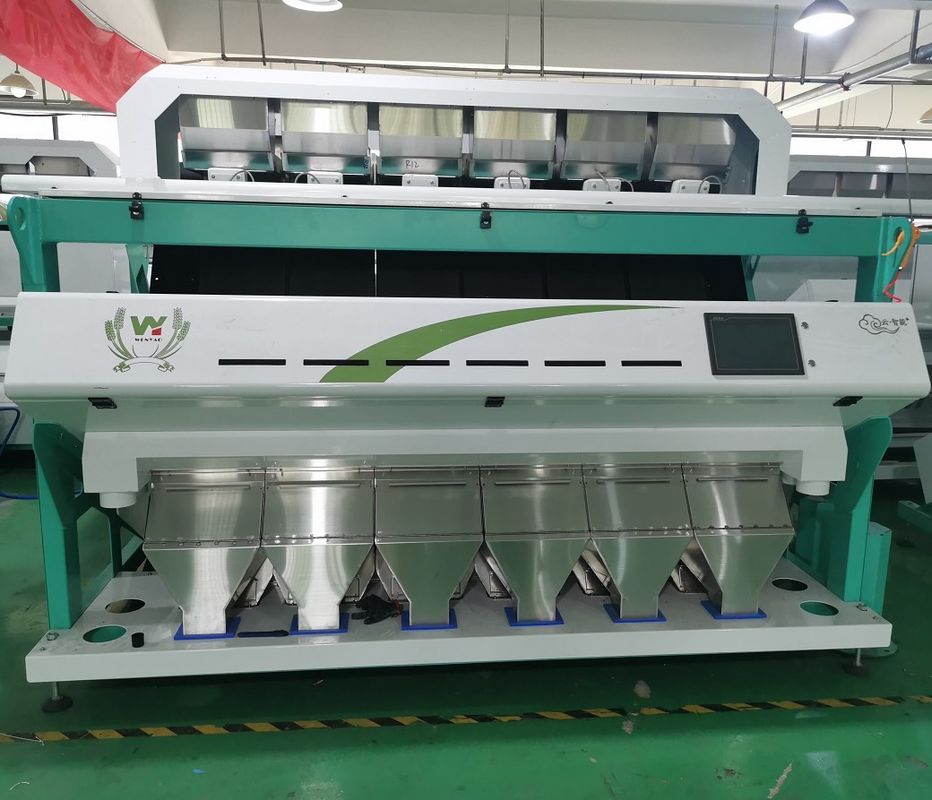

From Customer's Site :





Pumpkin 5400 Pixel Ccd Camera Seeds Sorting Machine 220V 50H 3Pumpkin 5400 Pixel Ccd Camera Seeds Sorting Machine 220V 50H 4Pumpkin 5400 Pixel Ccd Camera Seeds Sorting Machine 220V 50H 5Pumpkin 5400 Pixel Ccd Camera Seeds Sorting Machine 220V 50H 6





How can a color sorter benefit your business?

  • Multi-Functional

This product can be used in agricultural, grain, oil, chemical, pharmaceutical and other industries, especially suitable for rice, tea, sesame, beans, seeds, raisins, plastic, ore, peanut, pepper, and other color sorting field.

  • High Efficiency

Compared with manual sorting, a color sorter machine is labor-saving, time-saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.

Color Sorter characteristic:

1. Automatic computing and intelligent identification with high speed camera.
2. 5400Pixel CCD image acquisition system with high speed chip.

3. Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
4. Self design high frequency ejectors,It means high speed and accurate sorting performance.
5. Low temperature LED light source system,Cooling system to make the LED lamp more long life.

6. WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

7. Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
