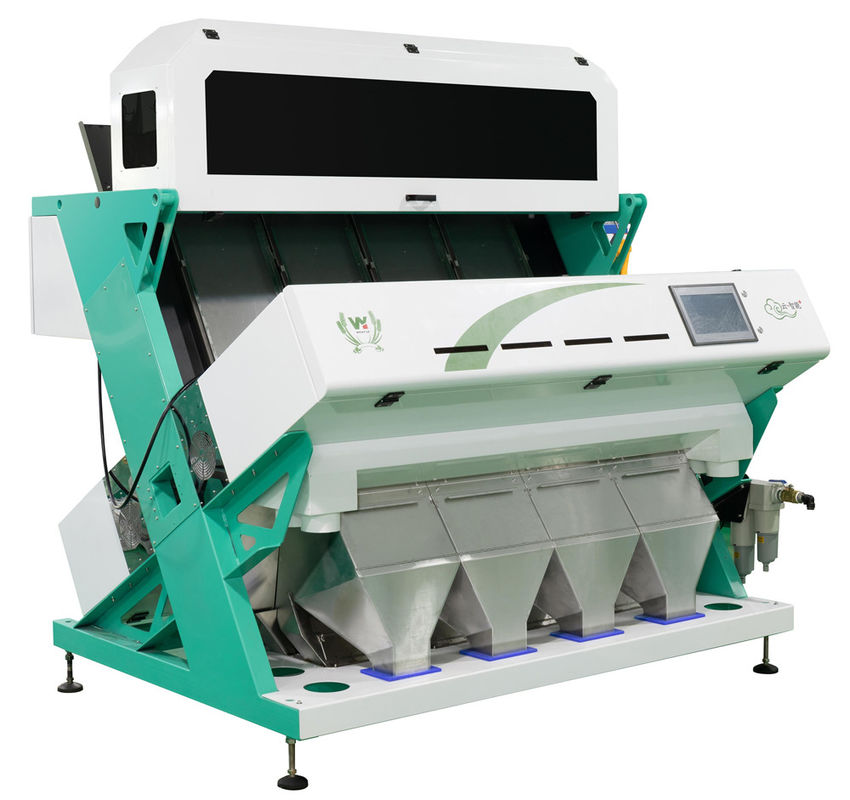

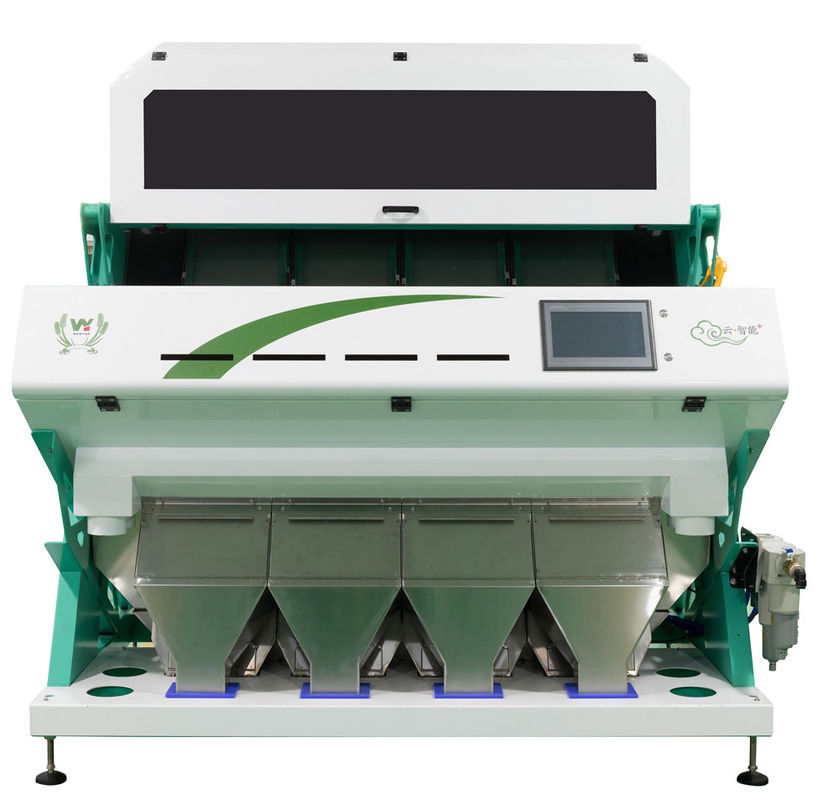

Nut Color Sorter Betel Nut Color Selector Peanut Sorting Machine Walnut Color Separator
Nut Color Sorter Betel Nut Color Sorter Peanut Sorting Machine Walnut Color Separator
Unsorted nuts in the feedhopper on the top of mahince under the vibrating of vibration will be disbutrited and sliding along the chute into the zone of observation with nir sensor and background plate.Under the effect of light source, CCD sensor receives compound lights reflect from the mixed nuts to be sorted.The light intensity and color changes,make the system occur signal and drive solenoid valve to reject the discolor nuts to defect chamber and good nuts continue to fall into the accept chamber.
Good Life Start Here , Wenyou Color Sorter , Keep The Beautiful World For You !
Technical Parameters:
| MODEL | WYCS4-256 |
| Chutes/Channels | 4/256 |
| Throughput(t/h) | 4000 kg /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.3kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 1000-2400 L/Min |
| Weight | 750kg |
| Dimension(L*W*H) | 1855*1540*1852mm |
Examples of color sorting:
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
Product Features
*Wide-spectrum, co-focusing system, Toshiba HD imaging capture, accurately position the aim and Intelligent analyze and high speed processing.
*Multi-function,multi-purpose,widely used for rice,millet,sesame etc.
*Espcially good at identifying and sorting light yellow, tiny spot, micro color difference etc.
*Cold LED light source, long life span and maintenance free.
*Combined with color sorting, shape sorting and size sorting.
*High and specification ensures high stability,with high sorting accuracy, small carry over and low energy consumption.
*Full color technology with wide spectrum, intelligent system, self-learning function, easy operation.
*Suitable for rice mill line of 15 model.
Our Company
We manufacture vertical sorting machine also belt-type sorters for different size agricultural and industrial products, such as rice,bean,seeds,corn,wheat,paddy, plastic and glass etc.With many years experience in CCD color sorting technology,more than 10000 sq.m workshop with more than 200 sets of sorter machine each month.We could supply good after-sale service for the customers all over the world.
