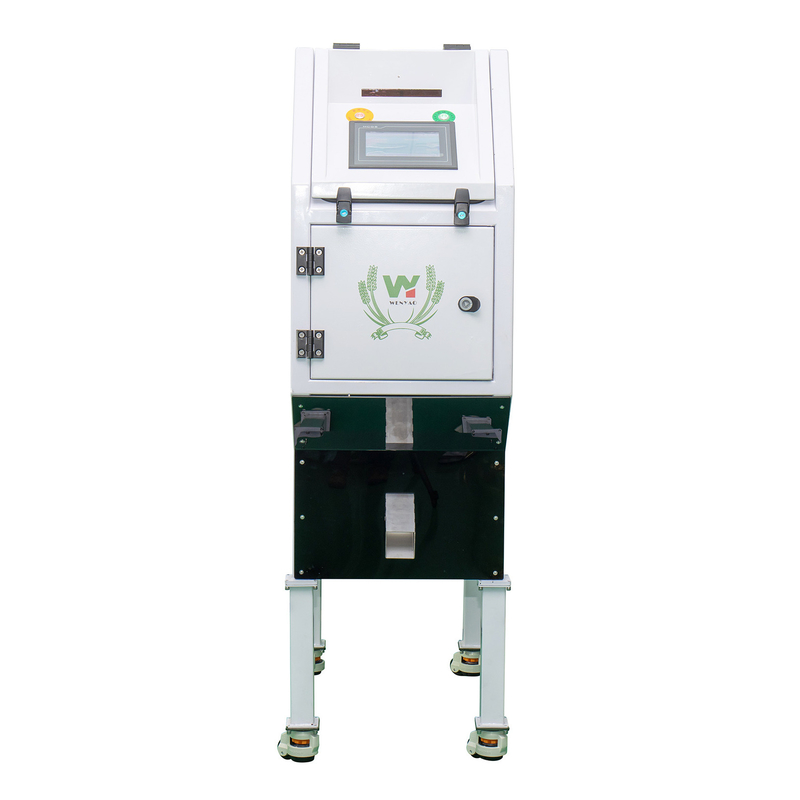

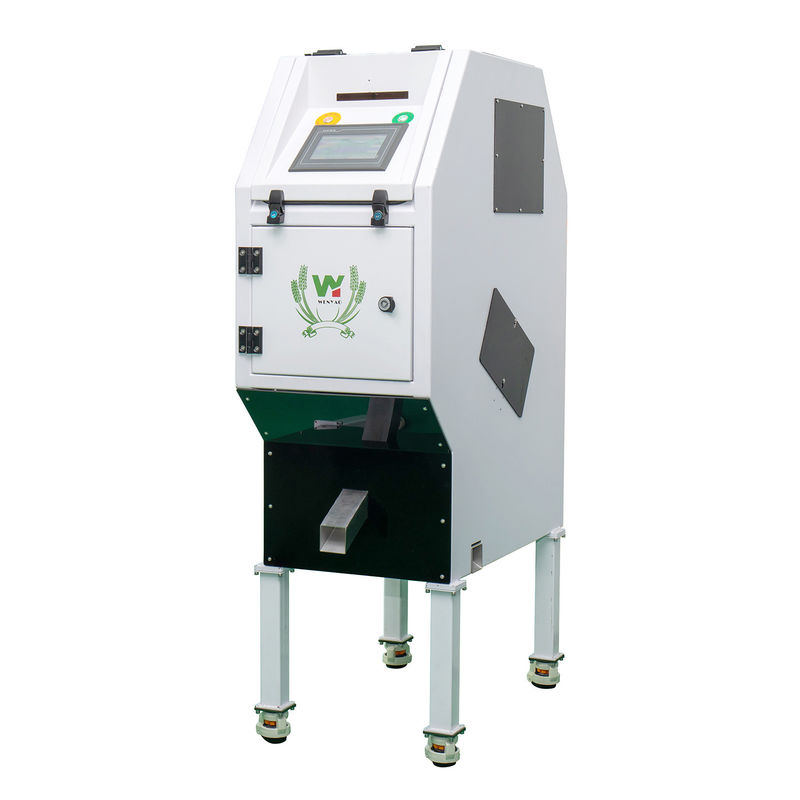

Mini Small Cost-Effective Rice Color Sorter Rice Colour Sorting Machine
Product Description:
Color sorter is a machine which used for separating the bad grain from the raw material through the color difference between the rejection and finished products. FE series of color sorter adopting 5400 pixel high resolution CCD camera, advanced image analysis and processing technology, long-life high-efficiency easy maintenance ejector as well as excellent optical system.
Diagrammatize Working Principle:
Technical Parameters:
| MODEL | WYCS1-32 |
| Chutes/Channels | 1/32 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.5kw |
| Power Voltage | 220V/50Hz/60Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.3M3/Min |
| Weight | 180kg |
| Diamension(L*W*H) | 460*895*1356mm |
Highlight Features:
1. It adopts high quality special industrial lenses;
2. Self checking system,5400 CCD camera, and photo processing technology.
3. High speed FPGA technology signal processor with fast detection and high identification rate.
4. Overall unit adopts intelligent closed-loop control.
5. High speed air value is used to ensure quick response, low power consumption and long service life.
6. It uses intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
7. Failure alarm automation and modular construction makes easy repair.
8. Combining LED lighting systems with fixed backgrounds and low voltage vibrator, auto-adjusts varying light levels, minimizing vibrations and producing consistent throughput across the chute.
Product Application:
Packing Delivery:
What you can choose from us?
---Advanced equipment, good quality
---Professional skills, all-related services
---High quality and efficiency technology
---Complete production line, quick delivery
---The biggest grain and oil machine manufacturer and exporter in China
---Exporting to more than 30 countries and regions
Examples of rice color sorting:
Custom's site:
FAQ:
1. Q:How long about the guarantee period?
Tow year. And we will supply lifelong software upgrade services for our customers.
2. Q:How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
3. Q:Will you accept L/C as payment?
L/C ,T/T is OK.
4. Q:How about engineers service oversea?
Our engineers could go abroad services when necessary.
5. How about the sample machines for testing?
Sample sending for testing is welcomed. Or you send these three photos, the raw material, good material (which is you want), bad material (which is you want to discard). We send our video to you.
6. Can you supply the accessories parts of color sorter?
Yes,we can supply some spare parts when you need.
