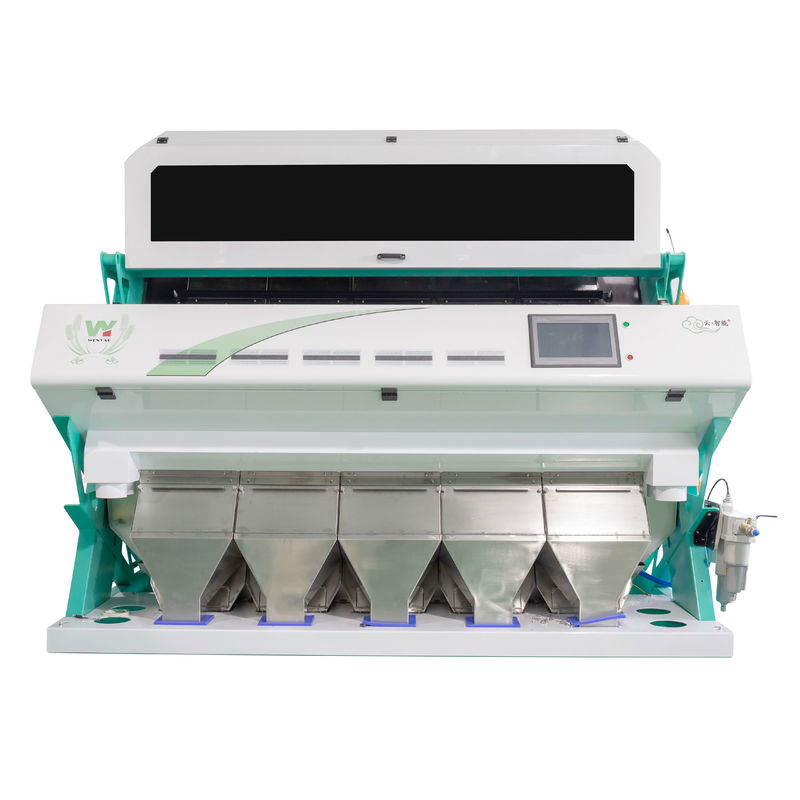

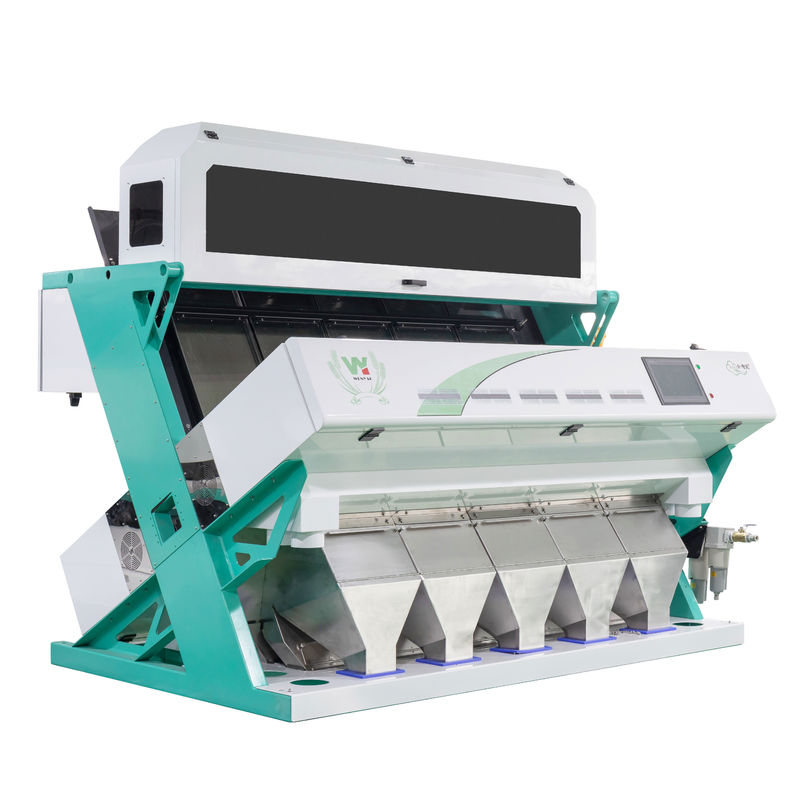

Colour Peanut Sorter 5 Chutes 320 Channels Peanut Color Sorting Machine Nuts Color Sorter
Input product is loaded into the in-feed hopper , it moves along the vibrating plate , until it flows on to a sloping chute, where it is individually checked at 360° and sorted by RGB Full color cameras .
Depending on the signals received by the optical device, the sorter's software controls the pneumatic device, which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper.
2. Technical Parameters:
| MODEL |
WYCS5-320 |
| Chutes/Channels |
5 / 320 |
| Throughput(kg/h) |
3000kg/h-4000kg/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
2.9kw |
| Power Voltage |
240V/50Hz or Customized |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<2.8M3/Min |
| Weight |
900kg-910kg |
| Diamension(L*W*H) |
2244*1540*1852mm |
3.What is color sorter?
Color Sorters are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.
The cashew sorting technology is according to the color differences of cashew materials, using a high-resolution CCD optical sensor to separate black,red,broken,small and moldy etc.Sorting machines improve product quality and add social benefits.
1. With Over 14 years experiences.focus on sorter machine.
2. After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install and w.
3. We have service station, cooperate reseller in more than 100 countries.
4. Quality assurance of raw materials: The raw materials we purchase are certified qualified products.
5. Quality process assurance: We pass ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, to ensure that the factory products in full compliance with customer requirements
4. Examples of Color Sorting Examples
How can a color sorter benefit your business?
This product can be used in agricultural, grain, oil, chemical, pharmaceutical and other industries, especially suitable for rice, tea, sesame, beans, seeds, raisins, plastic, ore, peanut, pepper, and other color sorting field.
Compared with manual sorting, a color sorter machine is labor-saving, time-saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.
5. FAQ
1. Will you accept L/C as payment?
L/C ,T/T is OK.
2. Can we print our logo/website/company name on machines?
Oem is welcome ,Just need give Pantone Code of your logo to us
3. What's the lead time for regular order?
7-10 days for order quantity 1 set;
For more than 3 sets, usually 20 days.
4. Can I get a discount?
Yes, for the order quantity more than 2 sets, please contact us to get the best price.
5. Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
6. Can you supply the accessories parts of color sorter?
Yes,we can supply some spare parts when you need
6. Real Photo of WYCS5-320 in customer side
7.Our After-Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
8.Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.
