Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE ISO9001
Model Number:
WYCS1-64
Contact Us

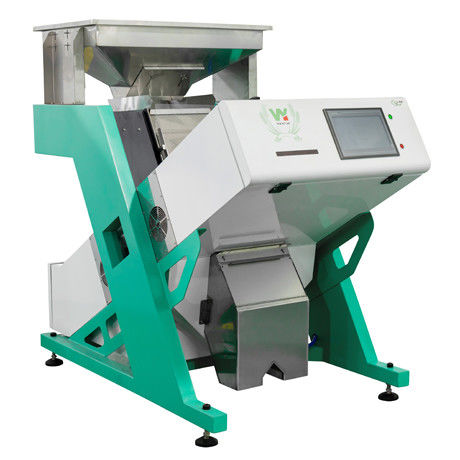

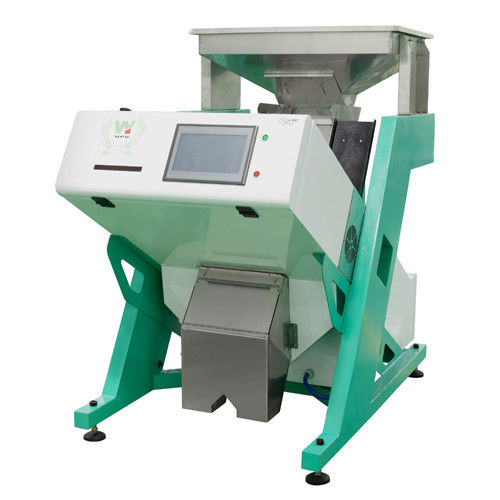

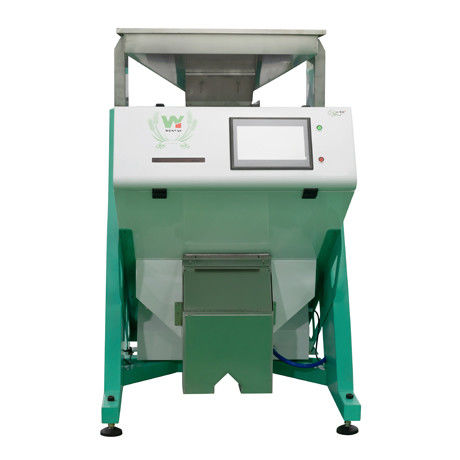

All Kinds Of Rice Processing Equipment @1000-1500kg/H For Rice Mill Rice Color Sorter
Firstly we feed mixed rice in the hopper and run the machine. With the shocking of vibrator,the mixed rice will be uniformly distributed into the chute. While rice is dropping , the CCD signal starts working. If the cameras catch the unqualified rice or impurities in the mixed rice , they will send the signal to PLC and PLC orders the ejectors to blow the defective rice into the hopper.
Technical Parameters:
| MODEL | WYCS1-64 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 1 -1.5Ton /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.75kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min |
| Weight | 280kg |
| Diamension(L*W*H) | 780*1527*1543mm |
Examples of color sorting:
