High Precious 6 Chutes Seeds Color Sorter Machine Sesame Seed Cleaning Separating Machine
Optical sorting is essential in any processing operation. It sorts rice,grain, food and plastic, helping you meet food safety requirements and achieve a purer product quality. Our sorting equipment uses a range of technologies including cameras, lighting and machine learning software. It removes product defects and foreign materials by color, shape and texture. We also have an extensive product range based on budget, capacity and the product quality you need to achieve.

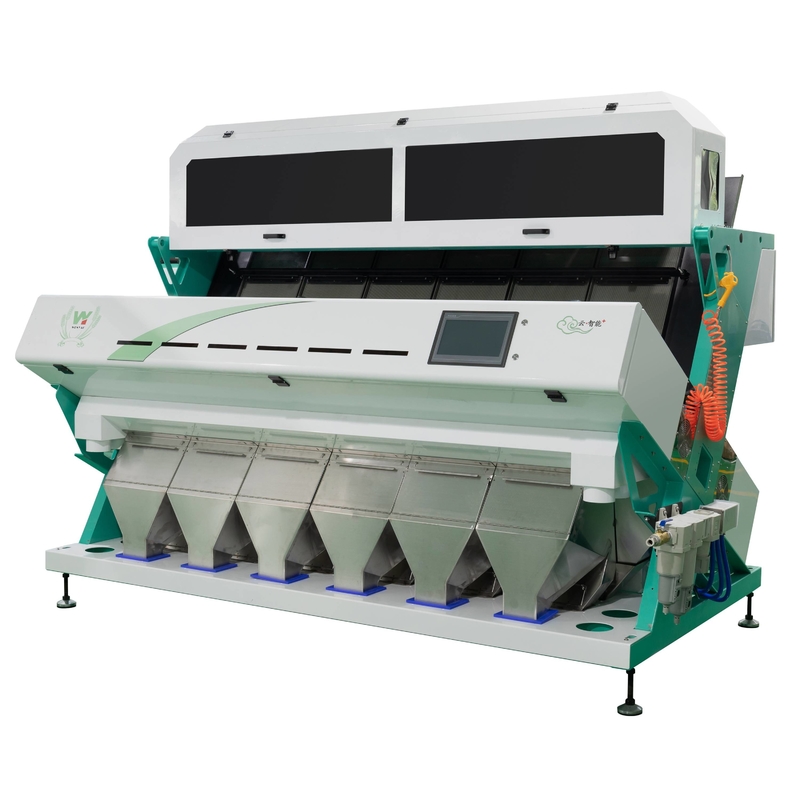

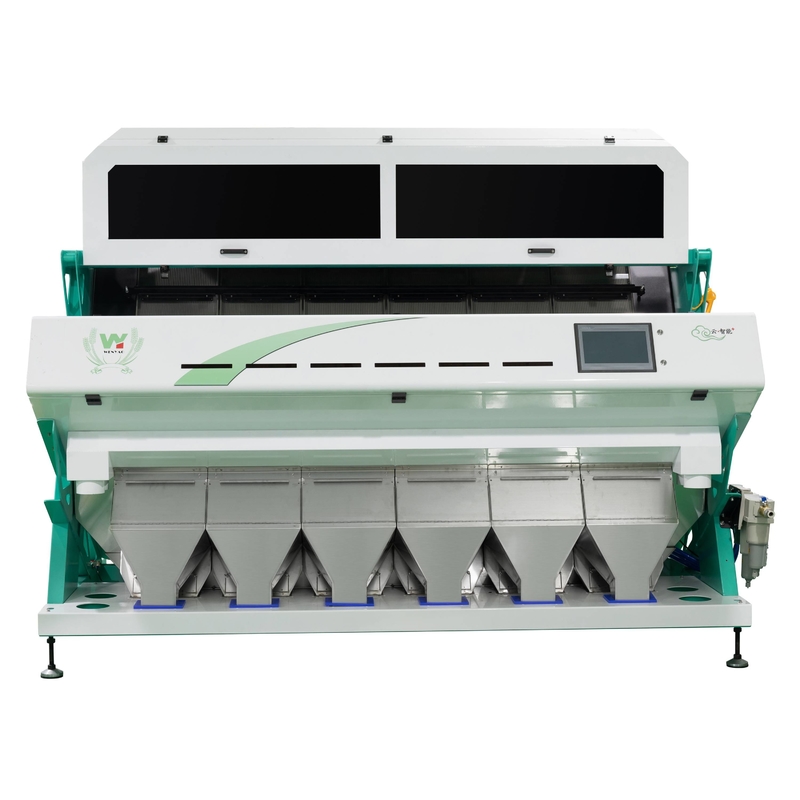

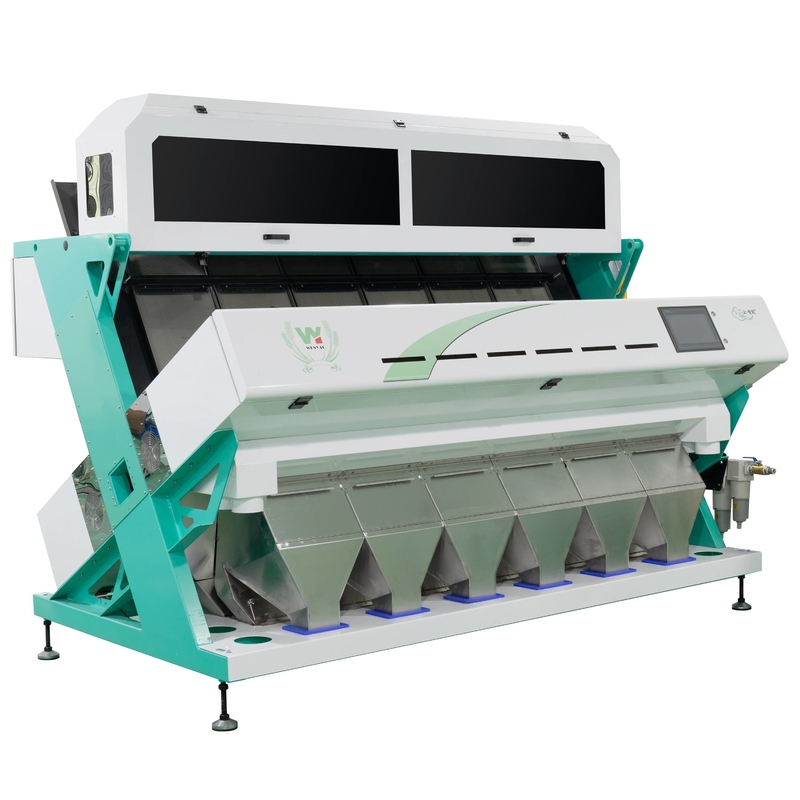

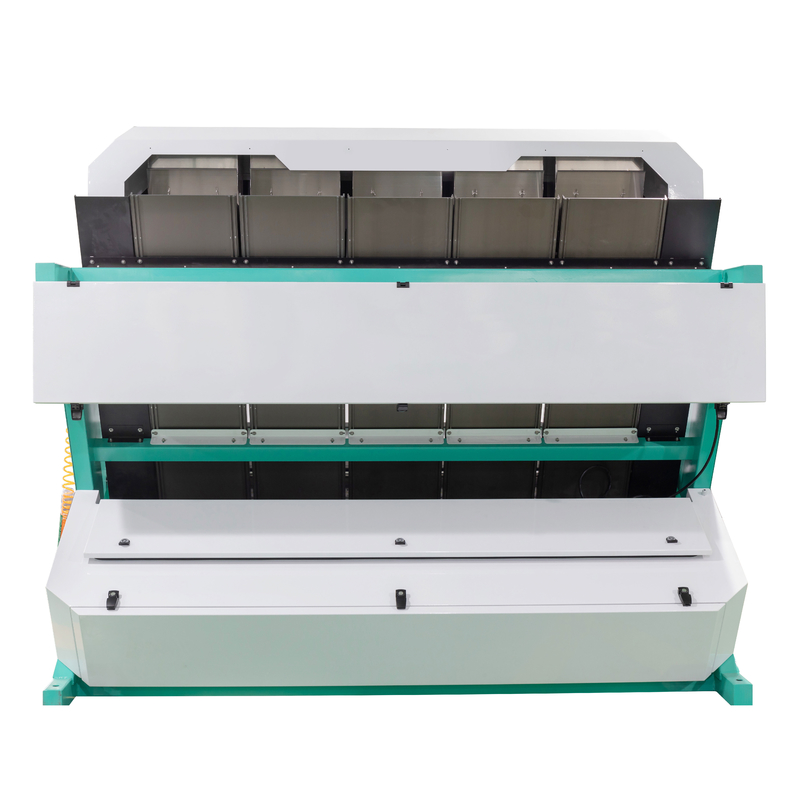

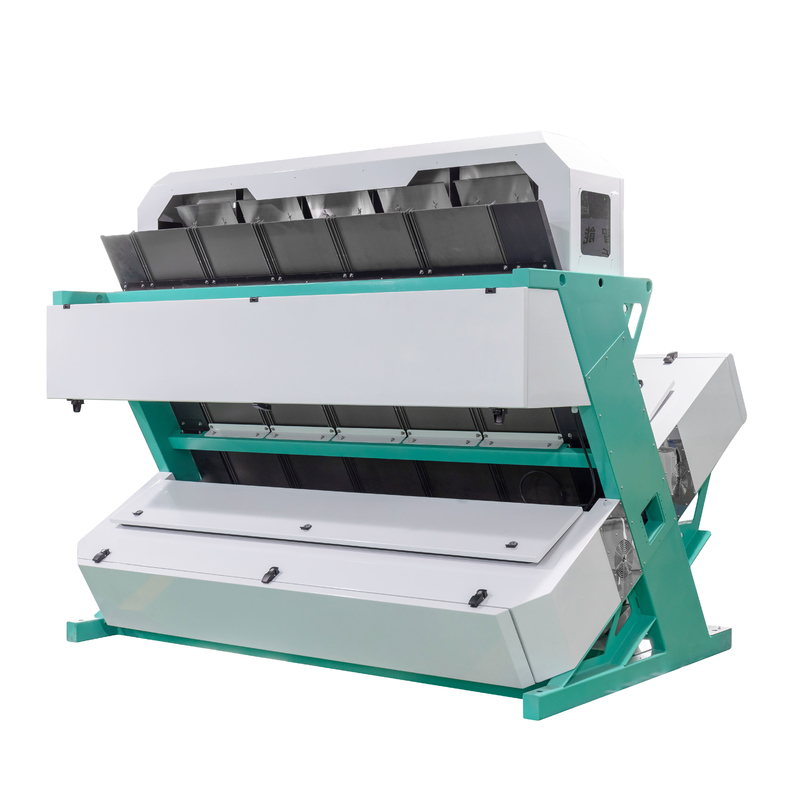

6 chutes 384 channels color sorter machine product show:
6 chutes 384 channels technical parameters:
| MODEL | WYCS6-384 |
| Chutes/Channels | 6/384 |
| Throughput(t/h) | 1-1.5t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 3.1kw |
| Power Voltage | 180-240V/50Hz/60Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 1.5-3.2M3/Min |
| Weight | 1100kg |
| Diamension(L*W*H) | 2595*1540*1852mm |
Wenyao color sorter machine highlight features:
1. Excellent sorting performance: Advanced image acquisition system + intelligent image processing algorithm + high quality ejection system=excellent output and rejection;
2. RGB full color tri-chromatic CCD image acquisition system: Top industrial 5400 pixel,CCD high speed linear scan imaging sensor also first-class tailored camera lens for color sorting with a precision identifying tiny defects till 0.01m
3. Super ease operation system: Simple optical system design and accurate in time auto,calibration system plus simplified GUI design help reduce complicacies of machine,commissioning and running, easy operation and maintenance secured.
4. Customized image processing algorithm: Intelligence algorithm integrating image
color difference and defect size difference;
5. Long-life software upgrading for free.
6. OEM service welcomed.
Wenyao color sorter core parts:
Wenyao color sorter machine application:
Color sorters are mostly used in sorting grain (agricultural products). The rice sorting industry is the first big market. The rice sorting technology is according to the color differences of rice (husked paddy) materials, using a high-resolution CCD optical sensor to separate stones, black rice, etc. It is the final step after polishing rice with a rice polisher. The second sorting market is in use for coarse cereals, such as wheat, corn, peanut, different kinds of beans, sesame seeds, etc. This can also include grains, seeds, cereals, pulses, coffee, and nuts. The color sorters also can be used to remove harmful plastics and metals.
Optical Color Sorters are among the newest technology in seed and grain processing. This equipment separates particles based on color and is often found at or near the end of the processing line, after mechanical separations, to remove impurities of similar size and density.
Machines are available from one to ten chutes wide. Technology range includes a simple monochromatic version, to bichromatic, NIR, InGaAs, RGB Full Color, and shape sizing.
Color sorting is necessary nowadays to ensure the best purity of bulk products, as well as ensuring that the strictest food hygiene and health requirements of end-products are met.
Examples of color sorting:
Note:The machine support more than 2500 materials ,welcome to inquire us for more details.
Our service:
Pre-sales
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After-Sale Service
1. We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
2. From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
3. Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
Parking and delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Details:
Within 15 - 20 days after received the 30% deposit.
Why choose us?
(1) The most hygienic optical sorters, lowering the risk of contamination
(2) Unprecedented defect and foreign material detection
(3) Industry leading optical sorting technologies
(4) Best quality best price best service
Our customer's case:
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5. Will you accept L/C as payment?
L/C ,T/T is OK.
6. Will you test machine before delivery ?
Yes , we will test carefully before delivery ,and save parameters in the machine
